Запчасти Case IH 9120 (21.140.03) - MECHANICAL TRANSMISSION OUTPUT SHAFT (21) - TRANSMISSION

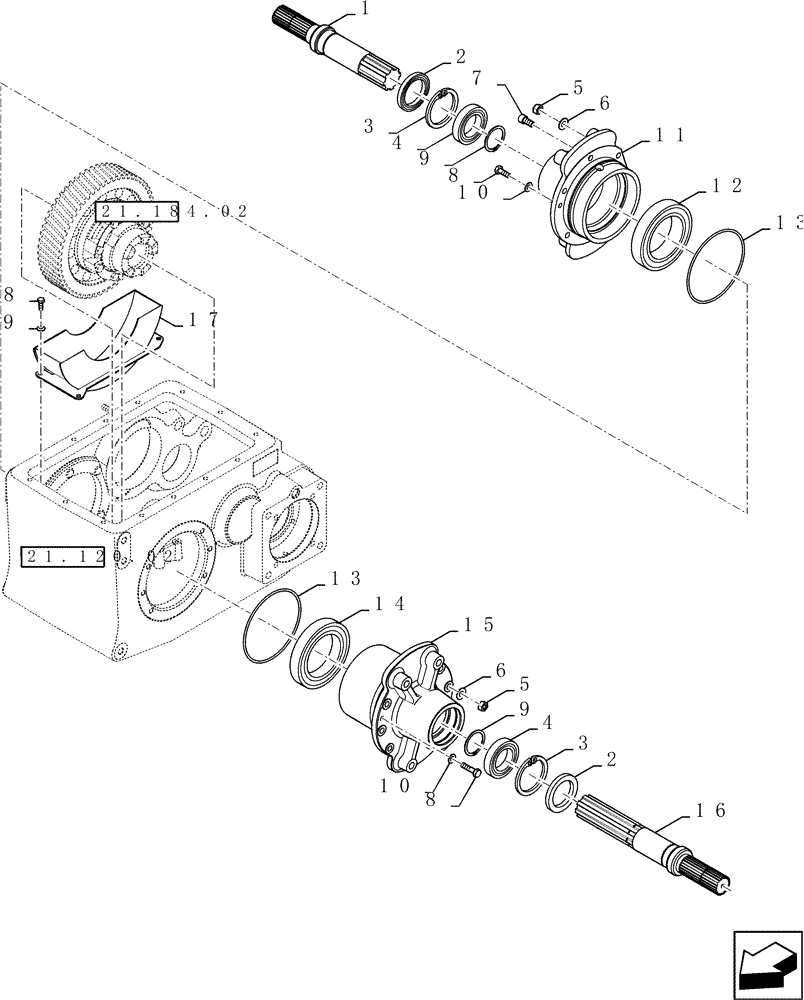

Схема запчастей Case IH 9120 - (21.140.03) - MECHANICAL TRANSMISSION OUTPUT SHAFT (21) - TRANSMISSION
6
3
21.184.02
21.120.02
9
14
12
15
10
6
13
3
8
10
9
2
8
4
13
18
19
5
16
1
11
17
7
2
5
4

Артикул

Название

Примечание

Количество

1

84069687

SHAFT

1шт.

2

84045429

OIL SEAL,65mm ID x 90mm OD x 10mm Thk

SEALRING Oil Scraper

2шт.

3

370013

SNAP RING,M90 x 3mm Thk, Internal

2шт.

4

9825886

BALL BEARING,55 mm ID x 90 mm OD x 18 mm

3шт.

5

9706685

NUT,M12 x 1.75, Cl 8

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

7

89837786

SCREW

M12 x 1.75 x 20

2шт.

8

86512298

BOLT,Hex, M10 x 12mm, Cl 8.8, Full Thd

4шт.

9

327911

CIRCLIP,55mm ID

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

84071109

FLANGE

For 16/71 Differential

1шт.

Not Used In 9120

1шт.

11

84071156

FLANGE

For 20/61 Differential

1шт.

12

80210046

BALL BEARING

1шт.

13

89815655

O-RING,0.103" Thk x 6.737" ID, -166, 70 Duro

2шт.

14

80418831

BALL BEARING

1шт.

15

84071206

FLANGE

For 16/71 Differential

1шт.

Not Used In 9120

1шт.

15

84071210

FLANGE,Output Shaft

For 20/61 Differential

1шт.

16

84069822

SHAFT

For Std Differential

1шт.

16

84069688

SHAFT

For Differential W/Lock

1шт.

17

84435237

SHIELD

For 16/71 Differential

1шт.

Not Used In 9120

1шт.

17

84435233

SHIELD

For 20/61 Differential

1шт.

18

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

Выбрано товаров: 26
