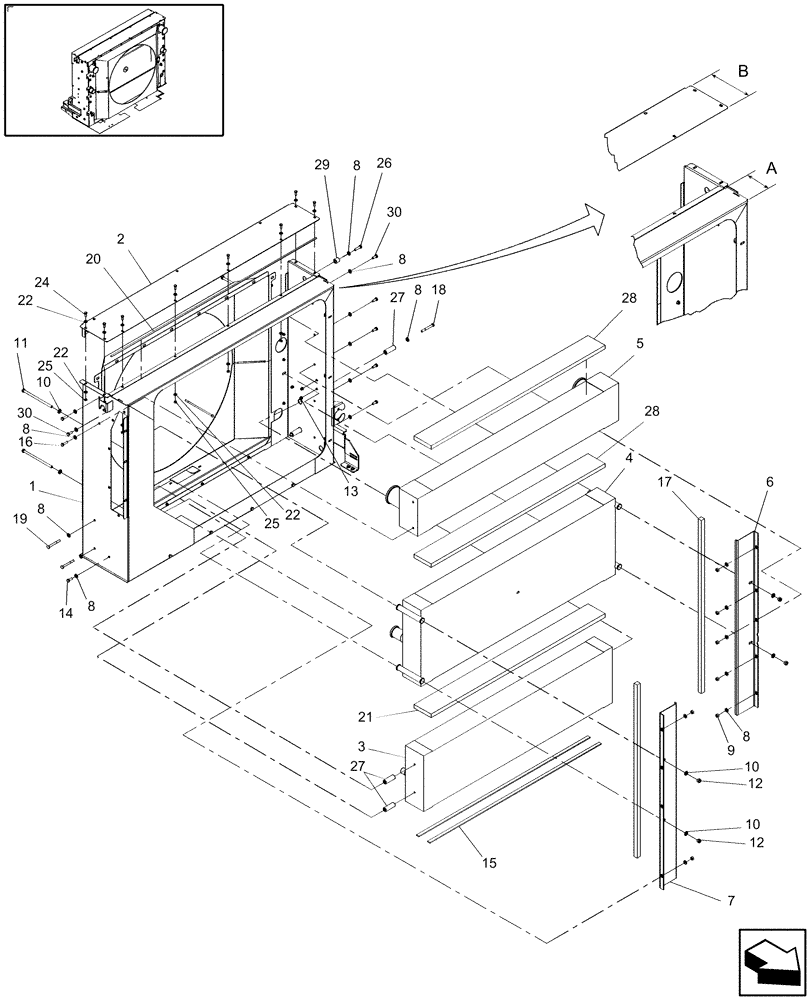

Запчасти Case IH 9120 (10.414.01[03]) - FRAME & COOLERS - 9120 (10) - ENGINE

1

87686656

BOX

Cooling; Dim. "A" = 5"

1шт.

After 4/2009, 7020 uses quantity 1 and 8120, 9120 uses quantity of 3

1шт.

1

84131430

FRAME

Box, Cooling; Dim. "A" = 4"

1шт.

Requires 84131432 on Units Before Serial Number Y8G205103

1шт.

2

87611092

COVER ASSY

Dim. "B" = 8.8"

1шт.

2

84131432

COVER

Dim. "B" = 9.8"

1шт.

3

87601394

OIL COOLER,Main Oil Cooler

1шт.

4

87601392

RADIATOR,1567mm L x 524mm H

1шт.

5

87736357

INTERCOOLER

Charge Air

1шт.

6

87720404

PLATE

1шт.

7

87687047

PLATE ASSY.

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

9

100016

NUT,M10 x 1.5, Cl 8

9шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.

11

364053

BOLT,Hex, M12 x 1.75 x 220mm, Cl 8.8

4шт.

12

100038

NUT,M12 x 1.75, Cl 8

4шт.

13

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

19шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

11шт.

15

PL

PROCURE LOCALLY

Tape, Seal; 1/4" x 3/4" Acrylic

1шт.

16

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

17

87710390

SEALING STRIP,25.4mm W x 1190mm L x 25.4mm Thk

Seal Strip, Baffle

2шт.

18

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

19

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

20

87676089

FOAM

1шт.

21

87674308

FOAM

1шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

25

9706690

NUT,M8 x 1.25, Cl 8

8шт.

26

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

27

87720409

SPACER

2шт.

28

87738339

FOAM

2шт.

29

87697449

BUSHING

2шт.

30

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.
