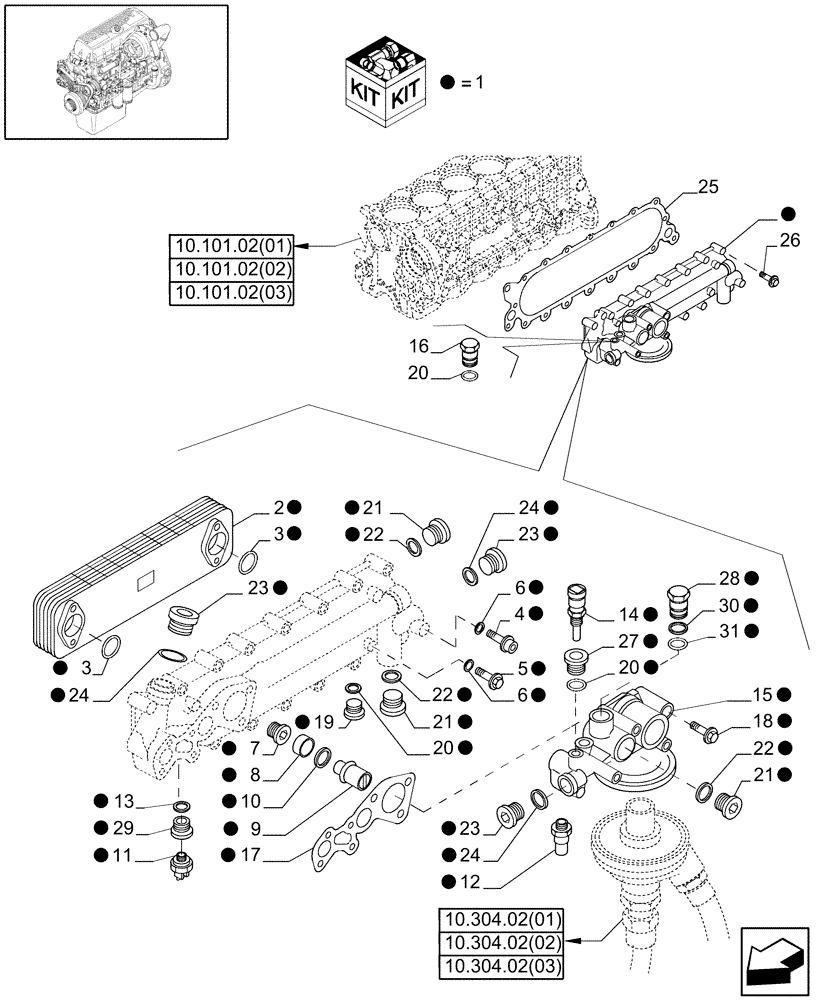

Запчасти Case IH 9120 (10.408.03[03]) - HEAT EXCHANGER - 9120 (10) - ENGINE

1

504106451

HEAT EXCHANGER

Heat exchanger cover; no longer includes kit parts, order all separate

1шт.

2

98498467

INTERNAL EXCHANGE UN

1шт.

3

14459081

O-RING,1.737" ID x 0.103" Width

M44.12 x 2.62

2шт.

4

16586625

BOLT,M8 x 35mm

M8 x 35

3шт.

5

16586925

BOLT,M8 x 50mm

M8 x 50

2шт.

6

99489014

SEALING WASHER

4шт.

7

99433799

PLUG

1шт.

8

99433798

SPACER

1шт.

9

98498322

THERMOSTAT

1шт.

10

98494952

GASKET,35mm ID x 1.5mm Thk

1шт.

11

500377533

SENDER UNIT

Oil Pressure Sensor

1шт.

12

98445111

SWITCH

Oil Temperature - BORLETTI

1шт.

12

98442879

SWITCH

Oil Temperature - SIPEA

1шт.

13

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=12 mm

1шт.

14

82017881

SENSOR

Coolant Temperature

1шт.

15

504013552

SUPPORT

1шт.

16

4741616

BANJO BOLT

1шт.

17

504013562

GASKET

1шт.

18

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

M8 x 190

7шт.

19

16992411

PLUG

M16 x 1.5

1шт.

20

99489019

SEALING WASHER

D=6 x 24 x 1.5 mm

3шт.

21

16993711

PLUG,M35 x 1.5

M35 x 1.5

3шт.

22

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

D=33 mm

3шт.

23

10278301

PLUG,M28 x 1.5 x 11, Brass

M28 x 1.5

3шт.

24

99432291

GASKET,28mm ID

D=28 mm

3шт.

25

504045796

GASKET

1шт.

26

16674034

SCREW,M8 x 40mm

M8 x 40

14шт.

26

16598624

SCREW,Hex Flg, M8 x 1.25 x 140mm

2шт.

27

504009680

ADAPTER

1шт.

28

500337200

PLUG

M16 x 1.5

1шт.

29

500356858

ADAPTER

1шт.

30

500337199

O-RING

1шт.

31

14453181

O-RING,0.489" ID x 0.07" Width

1шт.
