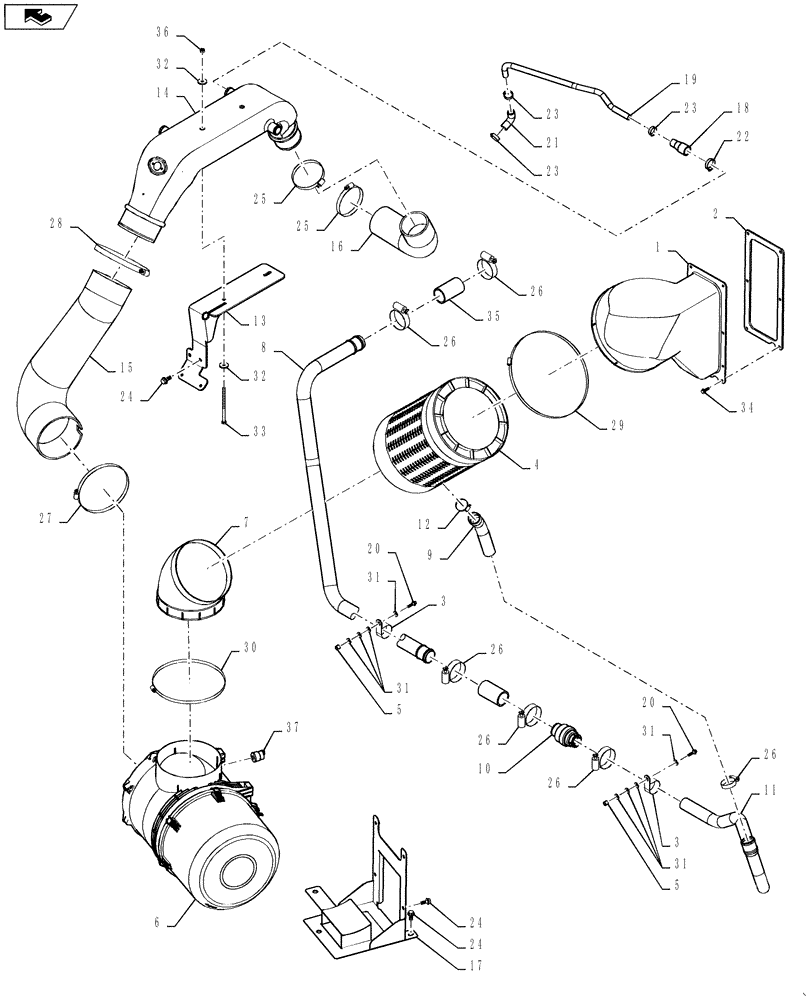

Запчасти Case IH 9120 (10.254.09(03)) - AIR INTAKE-ENGINE-9120 UPDATE W/PRECLEANER (10) - ENGINE

1

84410132

AIR DUCT

Duct, Air intake

1шт.

2

84414539

GASKET,6.4mm Thk

Air Intake

1шт.

3

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

4

84565656

AIR CLEANER

Precleaner, Dual Spin

1шт.

5

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

6

84305918

AIR CLEANER

1шт.

84305930

AIR FILTER,Round, 400mm ID x 321mm OD x 604.5mm L, Paper

Primary

1шт.

84305935

AIR FILTER,Round, 167mm OD x 565.5mm L, Paper

Secondary, Engine, Inner

1шт.

7

84410134

TUBE

Air Intake

1шт.

8

84512293

AIR INTAKE TUBE

C13

1шт.

9

84410135

HOSE

Aspiration

1шт.

10

87745355

CHECK VALVE

1шт.

11

84512291

AIR INTAKE TUBE

C13

1шт.

12

82039349

CLAMP,60mm ID - 80mm ID x 12mm W, Unlined

1шт.

13

84519164

SUPPORT

1шт.

14

84244912

AIR INTAKE TUBE

1шт.

15

84483597

AIR INTAKE TUBE

1шт.

16

84476645

ELBOW

1шт.

17

84517553

BRACKET

1шт.

18

84073303

HOSE,25mm ID - 38mm ID x 100mm OAL

1шт.

19

84385266

TUBE

1шт.

20

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

21

84334134

HOSE,25mm ID x 69mm OAL

1шт.

22

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

23

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

3шт.

24

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

9шт.

25

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

26

86625019

HOSE CLAMP,44mm - 67mm

6шт.

27

87019669

HOSE CLAMP,174.1mm - 196.8mm

1шт.

28

87690486

CLAMP,149mm ID - 172mm ID, SAE #100

1шт.

29

79083864

CLAMP,325mm ID - 360mm ID x 14mm W, Unlined

1шт.

30

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

31

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

32

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

33

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

2шт.

34

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

35

87402766

HOSE

Aspirator, 2" ID

2шт.

36

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

37

87013666

SWITCH,Air Filter Restriction

1шт.
