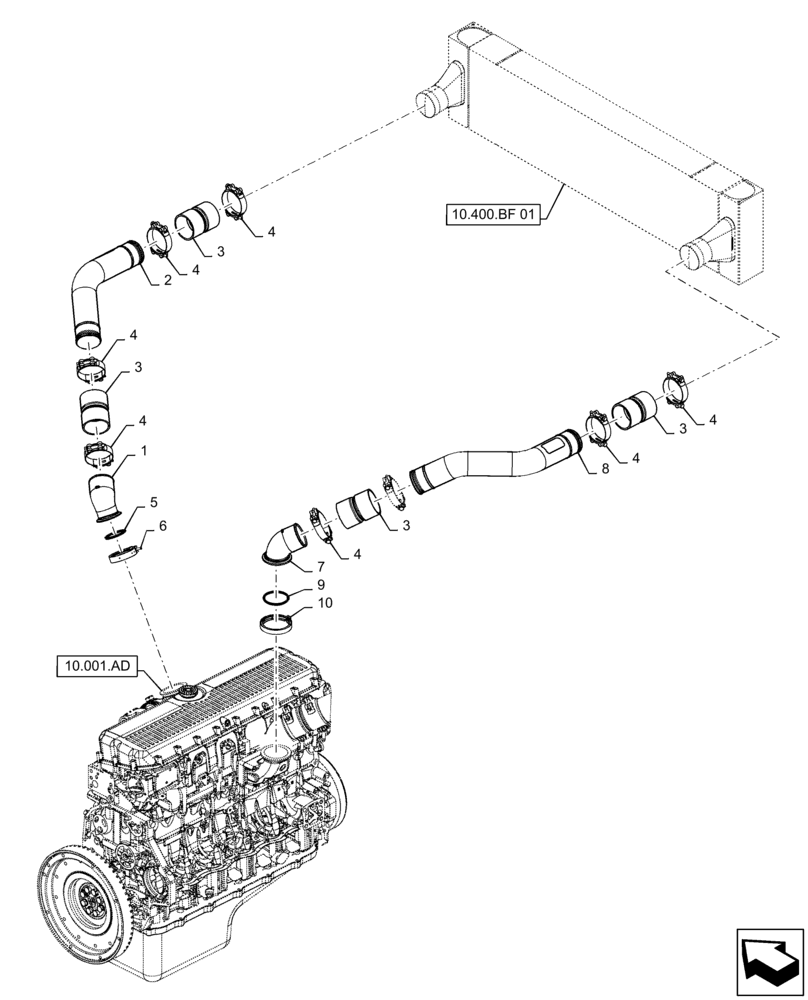

Запчасти Case IH 8240 (10.250.AJ[02]) - AIR INTAKE TUBE, TURBOCHARGER (10) - ENGINE

1

47435516

ELBOW

Exhaust, 75.6mm ID x 102mm OD, 45°

1шт.

2

47446377

TUBE

Exhaust, 101.6mm OD x 503.3mm L

1шт.

3

87539467

HOSE,105mm ID x 150mm OAL

4шт.

4

87489613

CLAMP

112mm ID x 30mm W, M10 x 80mm, Cl 8.8

8шт.

5

47445783

O-RING

Exhaust, 78.97mm ID

1шт.

6

84076899

CLAMP

Exhaust, 104.8mm ID

1шт.

7

47435519

ELBOW

Intake Side, 83.5mm ID x 102mm OD

1шт.

8

47446378

TUBE

Intake, 101.6mm OD x 606.4mm L

1шт.

9

83911411

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

Intake

1шт.

10

84223170

CLAMP,125mm ID, V-Band

Intake

1шт.
