Запчасти Case IH 8240 (10.216.BA [04]) - FUEL LINE (10) - ENGINE

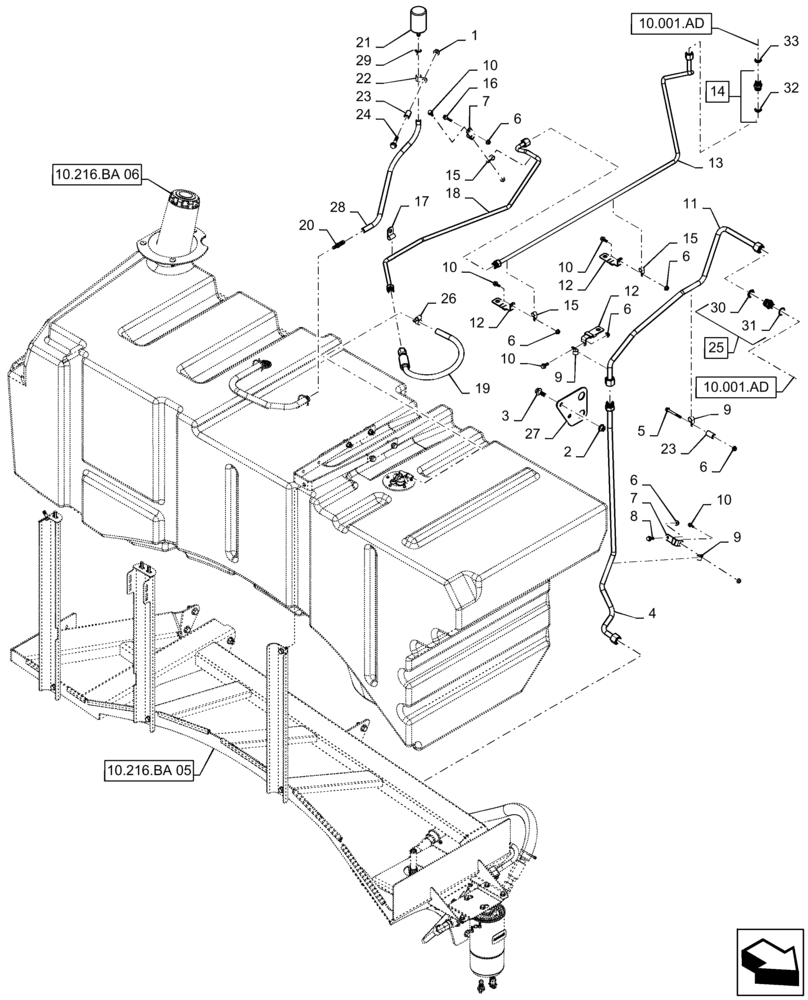

Схема запчастей Case IH 8240 - (10.216.BA [04]) - FUEL LINE (10) - ENGINE
7
29
9
14
22
15
15
10.216.ba 05
10
6
8
33
23
26
24
32
10.001.ad
10.001.ad
20
21
10
12
9
5
2
12
6
6
6
10
27
3
31
4
25
19
13
30
12
18
28
16
10.216.ba 06
11
15
23
6
17
10
6
9
1
7
10

Артикул

Название

Примечание

Количество

1

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

2

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

3

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

4

47698002

TUBE

Fuel, 14.8mm ID x 16mm OD x 875mm L

1шт.

5

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

6

86050300

FLANGE NUT,M6 x 1.0, Cl 10

8шт.

7

47400742

SUPPORT

Bracket, Fuel Line

2шт.

8

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

9

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

Fuel Line

3шт.

10

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

5шт.

11

47698883

TUBE

Fuel, 14.8mm ID x 16mm OD x 539mm L

1шт.

12

47401693

SUPPORT

Bracket, Fuel Line

3шт.

13

47698870

TUBE

Fuel, Return Line, 11.5mm ID x 12.7mm OD x 605mm L

1шт.

14

47402073

UNION,M18 x 1.5 x 13/16"-18

Adapter, Fuel Line, Incl 32

1шт.

15

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

3шт.

16

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

17

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

18

47697985

TUBE

Return Line, 11.5mm ID x 12.7mm OD x 844mm L

1шт.

19

47403215

HOSE

Return Line to Sender, 12.7mm ID x 578mm L

1шт.

20

47484902

UNION,3/8" - 1/4", Plastic Barb

Adapter

1шт.

21

47437399

FUEL FILTER

Tank Vent

1шт.

22

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

23

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

2шт.

24

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

1шт.

25

47688467

HYD CONNECTOR,M16 x 1.5 x 1"-14

Incl 30 - 31

1шт.

26

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1шт.

27

47535208

BRACKET

Support, Fuel Line

1шт.

28

47402087

BREATHER

Hose, 9.52mm ID x 500mm L

1шт.

29

86637702

HOSE CLAMP,15.49mm - 16.26mm

1шт.

30

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

31

82019812

SEAL,13.8mm ID x 8.9mm OD x 1.5mm Thk

1шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

33

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 33
