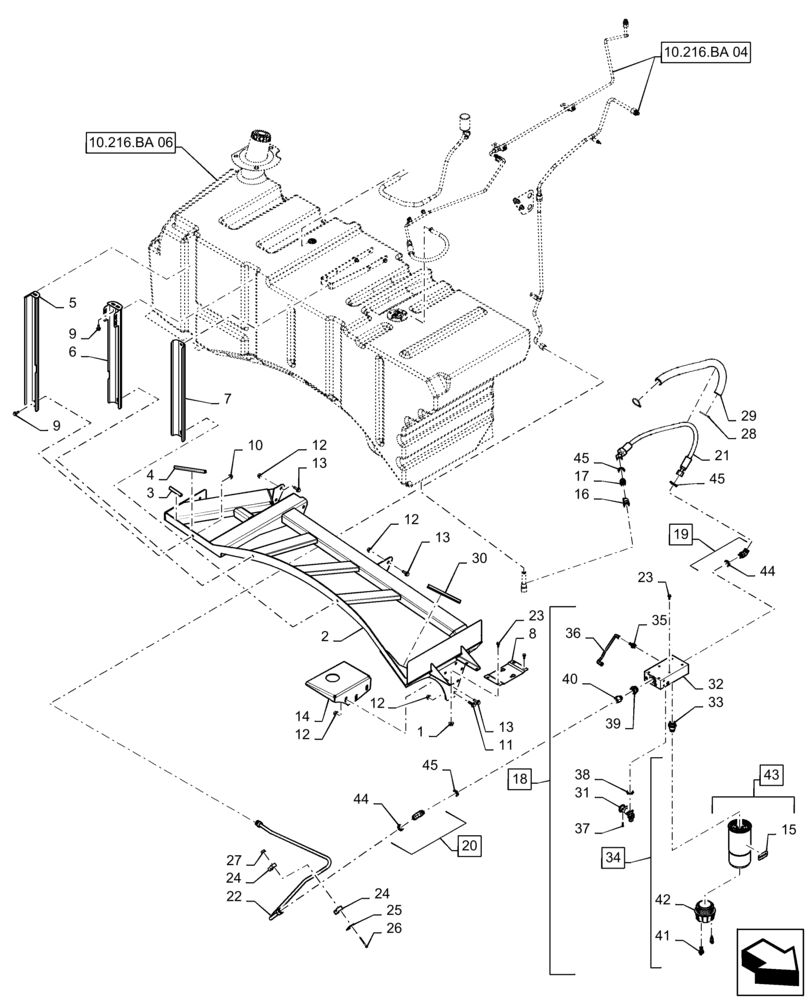

Запчасти Case IH 8240 (10.216.BA[05]) - FUEL LINE, FUEL FILTER (10) - ENGINE

1

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

2

47639599

SUPPORT

Fuel Tank, 1130L

1шт.

3

228634A1

PROTECTION STRIP

Fuel Tank Support, 88.9mm L

2шт.

4

121574A1

SEAL PROTECTION

Fuel Tank Support, 254mm L

5шт.

5

84156717

SUPPORT

Fuel Tank Rear

1шт.

6

84162005

SUPPORT

Fuel Tank Middle

1шт.

7

84157960

SUPPORT

Fuel Tank Front

1шт.

8

47742616

SUPPORT

Bracket, Fuel Manifold

1шт.

9

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

11

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

3шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

13

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

9шт.

14

47600161

BRACKET

Sump

1шт.

15

87679098

DECAL,37mm x 70mm

CIH Filter

1шт.

16

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Fuel

1шт.

17

84319917

HYD CONNECTOR,1/2"-14 NPTF x 1"-14 ORFS

1шт.

18

47552002

FUEL PUMP

Filter Assy, Incl 15, 31 - 43

1шт.

19

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 44

1шт.

20

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 44

1шт.

21

84160727

FUEL HOSE

Fuel, Tank to Filter Assy, 902mm OAL

1шт.

22

47698014

TUBE

Fuel, Pump to Tube, 14.8mm ID x 16mm OD

1шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

24

117395A1

COLLAR CLAMP,M15.87mm ID, 50mm x 35mm x 30mm

Fuel Tube, 50mm L x 30mm W x 35mm H

1шт.

25

86900727

COVER

Plate, Fuel Tube Clamp

1шт.

26

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

27

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

28

86566989

CABLE TIE,208mm L

2шт.

29

47581965

SLEEVE

Protective, Fuel Tank to Filter Assy Line

1шт.

30

448606A1

SEAL ASSY.,12.7mm W x 203.2mm OAL x 17mm Thk

Fuel Tank Support

1шт.

31

47635952

FUEL PUMP

Assy

1шт.

32

47638747

MANIFOLD

Fuel Pump

1шт.

33

47545596

ADAPTER,1-1/4"-12 RH x 1-1/4"-12 LH

Fuel Filter

1шт.

34

47635958

FUEL FILTER

Assy, Incl 15, 41 - 43

1шт.

35

47638916

COUPLING,M16 x 1.5 ORB x 3/8" Quick Connect

Hydraulic Connector

1шт.

36

47638905

HOSE

Fuel Pump to Manifold, 3/8" Fitting

1шт.

37

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

38

47643473

O-RING,12.37mm ID x 17.6mm OD x 2.62mm Thk

Fuel Pump to Manifold

1шт.

39

47741810

REDUCER,M22 x 1.5mm ID x 7/8"-4 OD

1шт.

40

47741815

REDUCER,7/8"-14 ID x 1-5/16"-2 OD

1шт.

41

84409712

SENSOR

Water/Fuel

1шт.

42

84409714

FILTER BOWL

Water Collection

1шт.

43

84423586

FUEL FILTER

Element, Incl 15, 30 Micron

1шт.

44

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

45

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.
