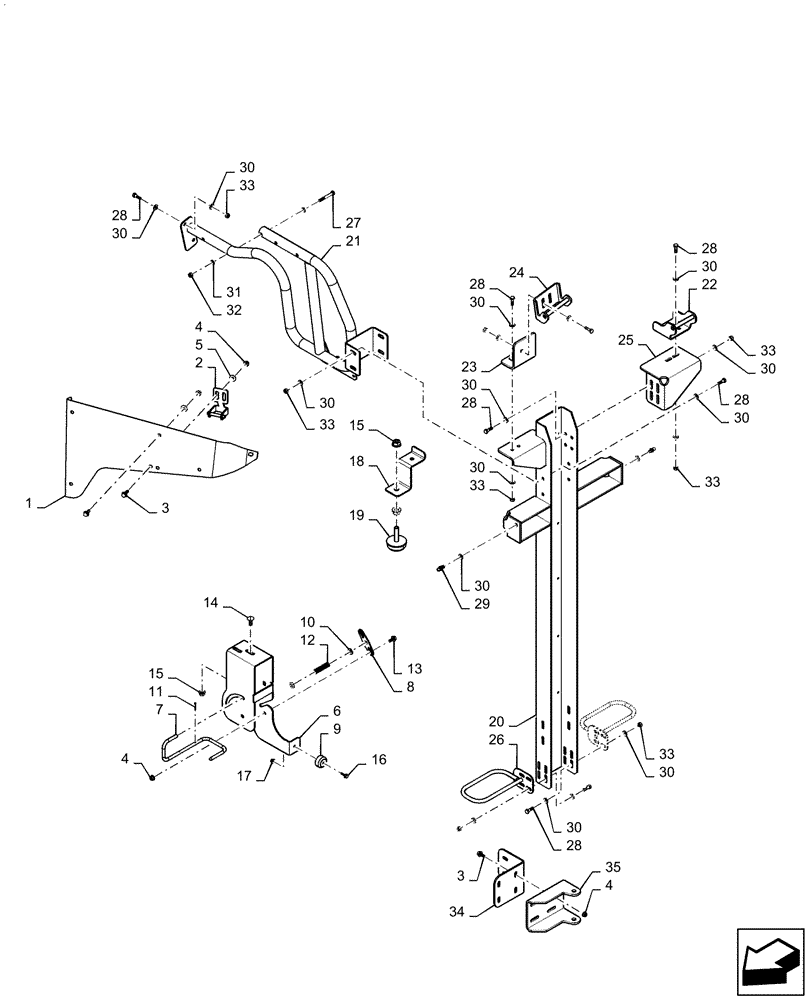

Запчасти Case IH 8240 (90.110.AU[05]) - BRACKET, BUMPER, BODY, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84336277

PROTECTION PLATE

LH, Front

1шт.

2

47398758

LATCH

LH, Support

1шт.

3

87698833

BOLT,M8 x 33.1mm, Cl 10.9

15шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

17шт.

5

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

7шт.

6

84153346

BRACKET

LH, Transport Lock

1шт.

7

84154209

LATCH

LH, Rod

1шт.

8

87676999

BRACKET

Strap, 30mm W

1шт.

9

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

12

192216A1

SPRING

Safety Stand Rod

1шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

14

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

15

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

16

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

17

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

18

84223638

BRACKET

LH, Rear Bumper Mount

1шт.

19

84440416

INSULATOR BLOCK

Rubber

1шт.

20

87673766

BRACKET

Channel

1шт.

21

84520009

BRACKET, SUPPORTING

Channel

1шт.

22

87475020

BRACKET

Trim Panel

1шт.

23

87633205

BRACKET

Upper Trim Panel, Supporting

1шт.

24

84318373

BRACKET

Upper, Trim Panel

1шт.

25

87684784

BRACKET

242.8mm W

1шт.

26

87728337

BRACKET

Trim Panel, Striker

2шт.

27

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

28

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

28шт.

29

83952214

BALL STUD,M8 x 29.5mm OAL

Regulator Pivot

2шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

31

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

32

9628098

NUT,M8 x 1.25, Cl 10

2шт.

33

9706690

NUT,M8 x 1.25, Cl 8

28шт.

34

47410846

BRACKET

Panel, Inner

1шт.

35

47402276

BRACKET

Panel, Outer

1шт.
