(90.102.AZ) - PLATFORM, REAR, SHIELD

Запчасти Case IH 8240 (90.102.AZ) - PLATFORM, REAR, SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

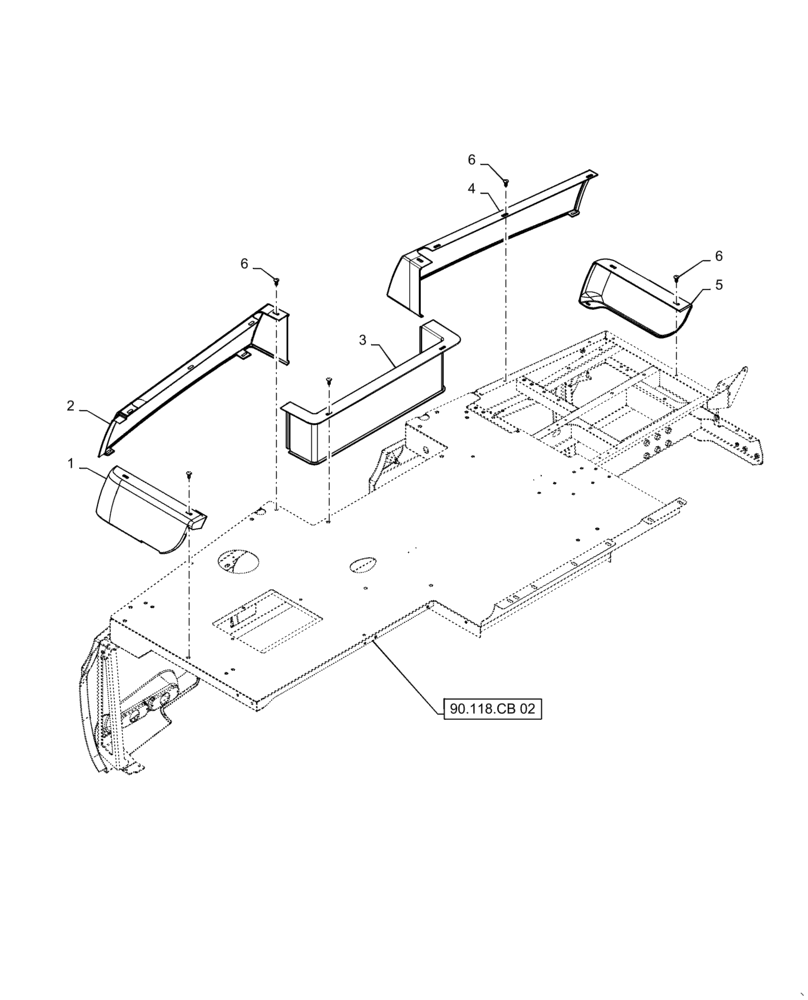

Схема запчастей Case IH 8240 - (90.102.AZ) - PLATFORM, REAR, SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
2
6
1
6
6
3
90.118.cb 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84211910

PANEL ASSY.

RH, Rear Outer Upper Skirt

1шт.

2

84170100

PANEL ASSY.

RH, Rear Upper Skirt

1шт.

3

87728326

SHIELD

Center, Rear Deck

1шт.

4

47672807

PANEL

LH, Rear Upper Skirt

1шт.

5

47671774

SHIELD

LH, Rear Outer Upper Skirt

1шт.

6

47551475

FASTENER

Fir Tree

14шт.

Выбрано товаров: 6
