Запчасти Case IH 8240 (88.100.60[06]) - DIA KIT, CONVERSION KIT, STONE TRAP (88) - ACCESSORIES

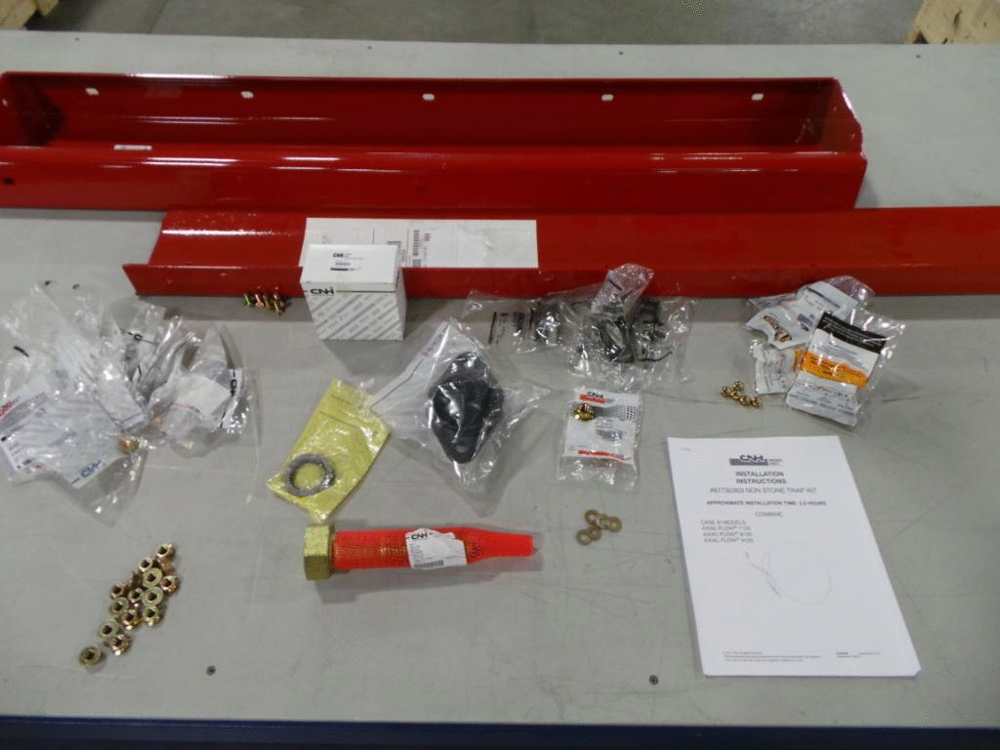

Схема запчастей Case IH 8240 - (88.100.60[06]) - DIA KIT, CONVERSION KIT, STONE TRAP (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

47762766

KIT

DIA, Non-Rock Trap to Rock Trap Conversion, Incl 2 - 19

1шт.

2

84398397

OPERATOR MANUAL

Conversion Installation Instruction

1шт.

3

84376397

FLOOR

Feeder, Rear

1шт.

4

47594434

SUMP

Stone Trap

1шт.

5

87730305

FLOOR

Feeder Access

1шт.

6

87108961

BEATER

Rock Trap

1шт.

7

86996082

COVER

Upper Feed Sprocket

1шт.

8

86995212

BEARING ASSY

38.1mm ID

1шт.

9

84257096

LINK,41.4mm Pitch, Threaded Pin

Master Link

4шт.

10

86974313

LINK,41.4mm Pitch

4шт.

11

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

15шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

16

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

15шт.

17

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

18

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

19

47534010

GEARBOX

Feeder/ Header

1шт.

19

47534010R

REMAN-GEARBOX

Reman Feeder/ Header

1шт.

19

47534010C

CORE-GEARBOX

Core reurn Number

1шт.

Выбрано товаров: 21
