Запчасти Case IH 8240 (88.100.55[13]) - DIA KIT, UNLOAD TUBE SIGNAL PLATE (88) - ACCESSORIES

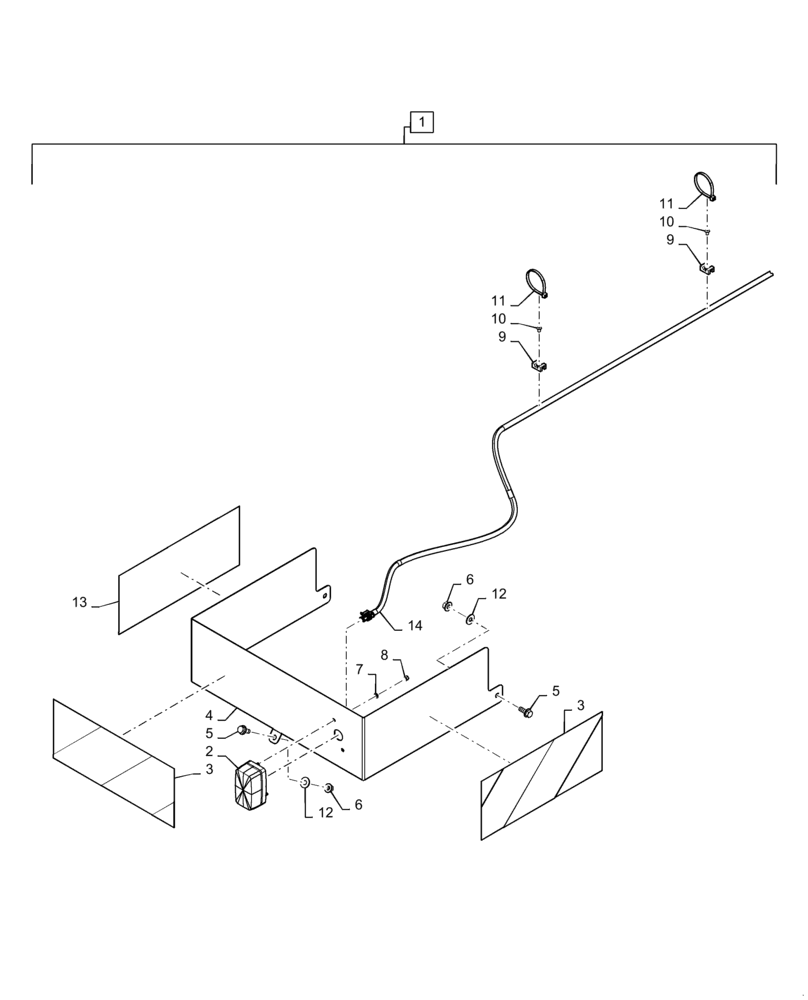

Схема запчастей Case IH 8240 - (88.100.55[13]) - DIA KIT, UNLOAD TUBE SIGNAL PLATE (88) - ACCESSORIES
5
4
1
11
11
2
10
13
9
3
3
10
6
7
6
5
12
12
8
14
9

Артикул

Название

Примечание

Количество

1

84361799

UNLOADING TUBE

Signal Plate, High Capacity, Rigid Tube, Incl 2 - 14

1шт.

2

84429842

LAMP

Assy

1шт.

3

84441358

DECAL

Reflector, RH, Center, Red/ White, 141mm W x 335mm OAL

2шт.

4

84427468

BRACKET

Supporting, Decal Mounting

1шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

3шт.

6

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

7

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

8

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

2шт.

10

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

2шт.

11

86566989

CABLE TIE,208mm L

2шт.

12

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

3шт.

13

84399948

DECAL

Reflector, LH, Red/White, 141mm W x 335mm OAL

1шт.

14

87479791

WIRE HARNESS

Assy, Signal Plate

1шт.

Выбрано товаров: 14
