Запчасти Case IH 8240 (88.100.55[10]) - DIA KIT, BRACKET, GRAIN TANK, AUTOGUIDANCE (88) - ACCESSORIES

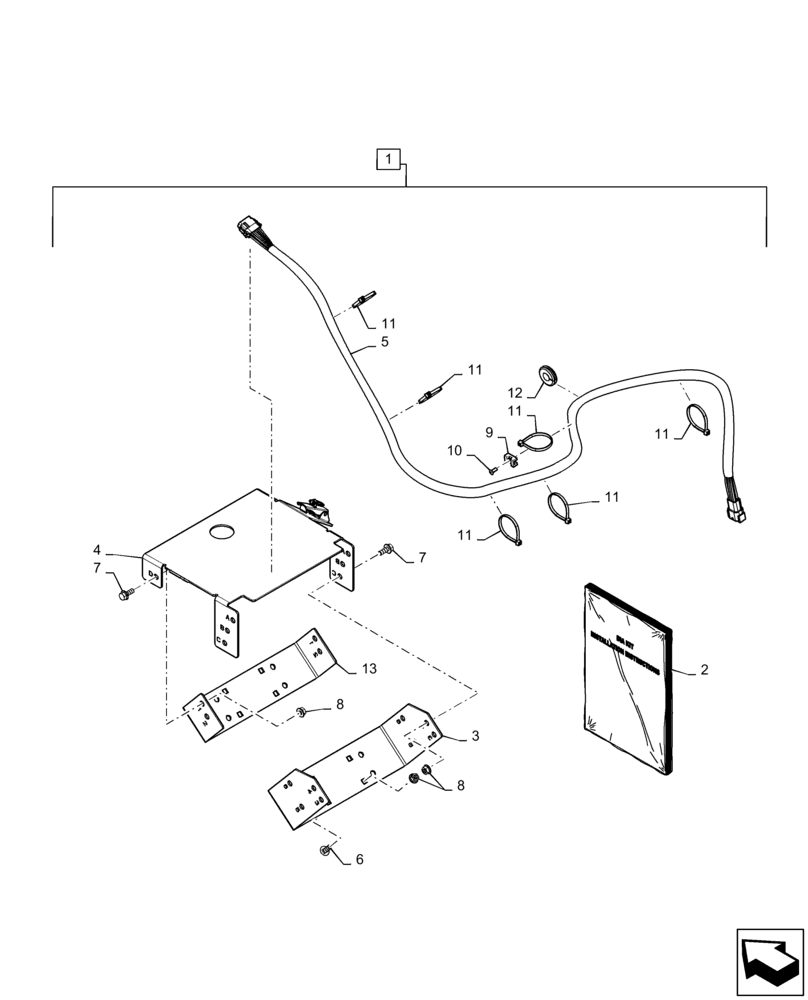

Схема запчастей Case IH 8240 - (88.100.55[10]) - DIA KIT, BRACKET, GRAIN TANK, AUTOGUIDANCE (88) - ACCESSORIES
13
2
8
10
11
11
12
5
6
11
7
1
11
8
4
3
11
7
9
11

Артикул

Название

Примечание

Количество

1

47705118

KIT

GPS Install, Incl 2 - 13

1шт.

2

47705113

KIT

Instruction, GPS

1шт.

3

87335677

BRACKET

Lower, Mounting

1шт.

4

87488331

BRACKET

Top, Cover

1шт.

5

47695045

WIRE HARNESS

GPS Antenna, Single Pigtail

1шт.

Will Be Replaced By 47884971/ 47894845

1шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

11

86566989

CABLE TIE,208mm L

6шт.

12

86637780

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

13

87335635

BRACKET

Lower, Mounting Bracket, GPS

1шт.

Выбрано товаров: 14
