Запчасти Case IH 8240 (88.100.48[01]) - DIA KIT, TRACK ASSY (88) - ACCESSORIES

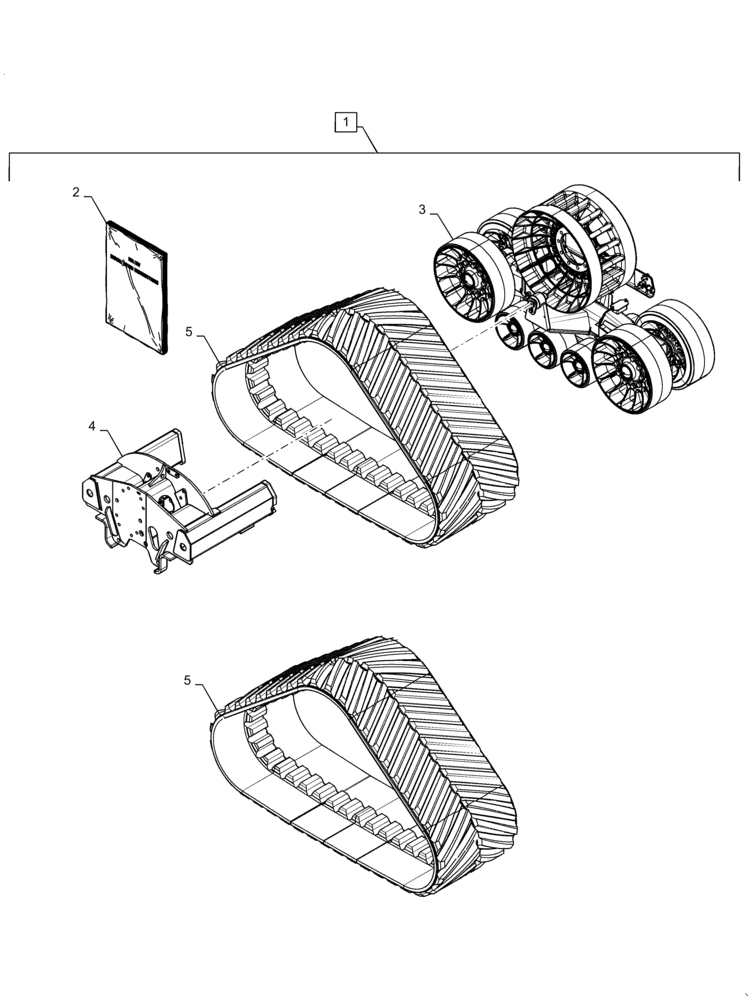

Схема запчастей Case IH 8240 - (88.100.48[01]) - DIA KIT, TRACK ASSY (88) - ACCESSORIES
3
5
4
2
1
5

Артикул

Название

Примечание

Количество

1

84130512

SERVICE KIT

Combine Track, Incl 2 - 5

1шт.

2

87555196

WARRANTY BOOKLET

Goodyear, AG Track

1шт.

3

47587310

KIT

Combine Track Roller

1шт.

Contains 2 Track Rollers

1шт.

4

84352071

SERVICE KIT

Track Frames

1шт.

Contains 2 Track Frames

1шт.

5

87471525

SERVICE KIT

36" Armor Lug Track

2шт.

Выбрано товаров: 7
