Запчасти Case IH 8240 (80.180.AR[03]) - VAR - 425345, 425345, 425347, 425348, 425349, 425350, 425353, 425356 - GEARBOX, HIGH SPEED, LOWER, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING

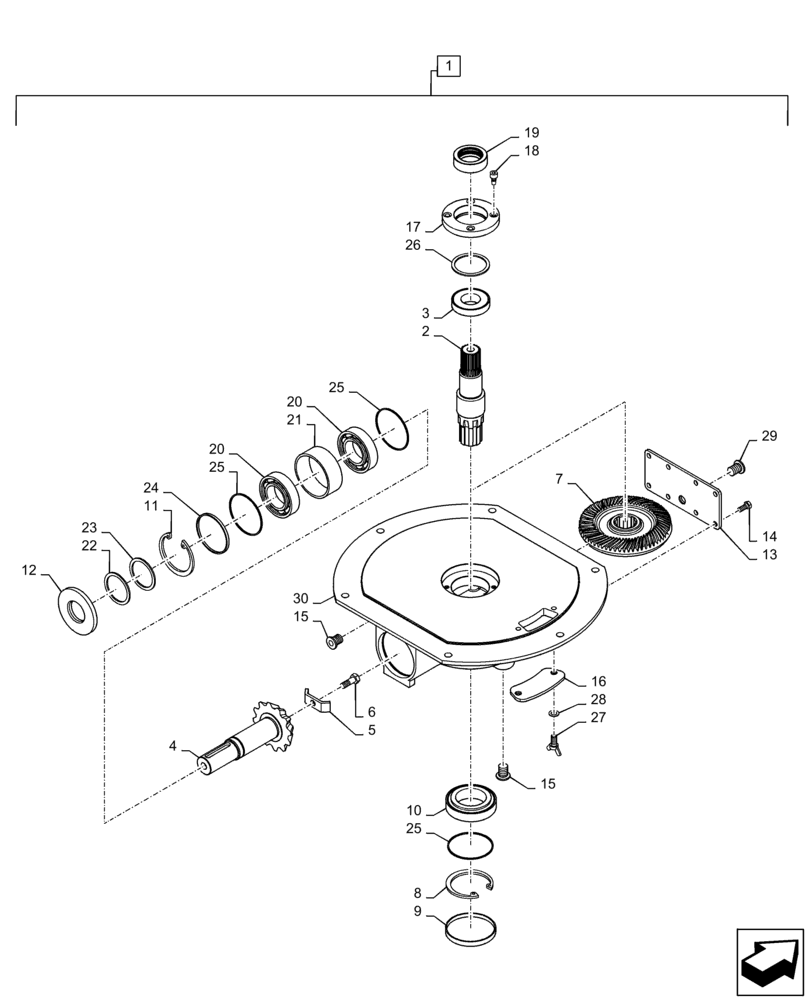

Схема запчастей Case IH 8240 - (80.180.AR[03]) - VAR - 425345, 425345, 425347, 425348, 425349, 425350, 425353, 425356 - GEARBOX, HIGH SPEED, LOWER, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING
27
2
7
15
29
10
14
3
9
25
5
25
24
13
6
1
30
25
22
8
12
20
16
15
21
18
4
11
28
23
20
26
17
19

Артикул

Название

Примечание

Количество

1

84262053

GEARBOX ASSY

Lower Unload, Incl 2 - 30

1шт.

2

84376256

SHAFT

Output, 198.6mm OAL

1шт.

3

86626475

BEARING ASSY,40mm ID x 68mm OD x 19mm W

40mm ID x 68mm OD x 19mm Thk

1шт.

4

84376257

SHAFT

Pinion, 21 Tooth, 260.9mm OAL

1шт.

5

86623220

PLATE

Oil Distribution

1шт.

6

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

7

84376258

BEVEL GEAR

42 Tooth, 167mm OD

1шт.

8

370013

SNAP RING,M90 x 3mm Thk, Internal

2шт.

9

86623227

COVER

Housing Bottom

1шт.

10

853116

TAPERED BEARING

Lower, 55mm ID x 90mm OD x 23mm Thk

1шт.

11

440442

SNAP RING,M40 x 2.5mm Thk, External

1шт.

12

86623230

RUBBER SEAL

Input Shaft, 40mm ID x 90mm OD x 7mm Thk

1шт.

13

86623224

COVER

Gearbox, Rear

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

15

86557412

PLUG,3/8" - 19 NPT

1шт.

15

47569828

HEX SOCKET PLUG

Flanged, M22

1шт.

15

322645950

SEALING WASHER,17mm ID x 22mm OD x 1.5mm Thk

1шт.

16

86623226

COVER

Side Cover

1шт.

17

86623222

FLANGE

57.6mm ID x 102mm OD x 18.7mm Thk

1шт.

18

86566099

HEX SOC SCREW,M8 x 16mm, Cl 12.9

4шт.

19

86623221

RUBBER SEAL,38.9mm ID x 60mm OD x 18.5mm Thk

45mm ID x 60mm OD x 18.5mm Thk

1шт.

20

87055660

TAPERED BEARING

Input Shaft, 40mm ID x 68mm OD x 19mm Thk

2шт.

21

84376259

SPACER,81mm ID x 89mm OD x 71.9mm OAL

1шт.

22

86623215

SPACER,81mm ID x 89.8mm OD x 7mm OAL

1шт.

23

86623231

SHIM,17.2mm ID x 24.9mm OD x 0.3mm Thk

1шт.

24

86623229

SHIM KIT

Input Shaft End Play

1шт.

25

86623216

SHIM

Input Shaft Bearing/Output Shaft Endplay

3шт.

26

86623218

SHIM KIT

Output Shaft Upper Bearing, 55.3mm ID x 67.7mm OD

1шт.

27

412049

SCREW,M10 x 16mm

2шт.

28

9511037

SEAL

10.2mm ID x 15.9mm OD x 1mm Thk

2шт.

29

84548648

PLUG

Sight Plug

1шт.

30

84414488

HOUSING

Lower Unload Gearbox

1шт.

Выбрано товаров: 32
