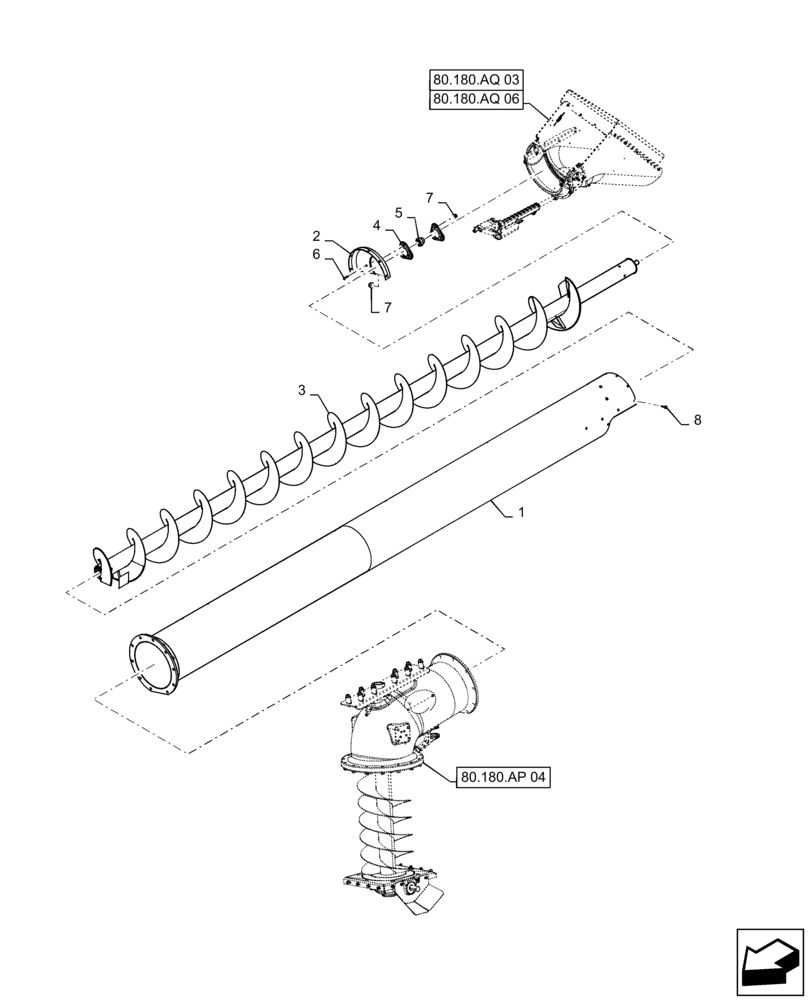

Запчасти Case IH 8240 (80.180.AQ[05]) - VAR - 425346, 425349 - UNLOADING TUBE, HIGH SPEED,AUGER ASSY, 6.4M (21FT) PERFORATED (80) - CROP STORAGE/UNLOADING

1

47407785

UNLOADING TUBE

High Capacity, Perforated, 16.22 FT

1шт.

2

84416907

COVER

End Tube Cap

1шт.

3

47373691

AUGER

Extended Wear, VAR - 425346, 425349, Serial Range: -YGG231218

1шт.

3

47897750

AUGER

Extended Wear, 8 Spline, VAR - 425346, 425349, Start Serial: YGG231219

1шт.

4

84414986

FLANGE

62mm ID x 8.73mm Thk

2шт.

5

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

1шт.

6

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

9шт.

8

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.
