Запчасти Case IH 8240 (80.180.AQ[03]) - VAR - 425344 - DISCHARGE SPOUT, PIVOT (80) - CROP STORAGE/UNLOADING

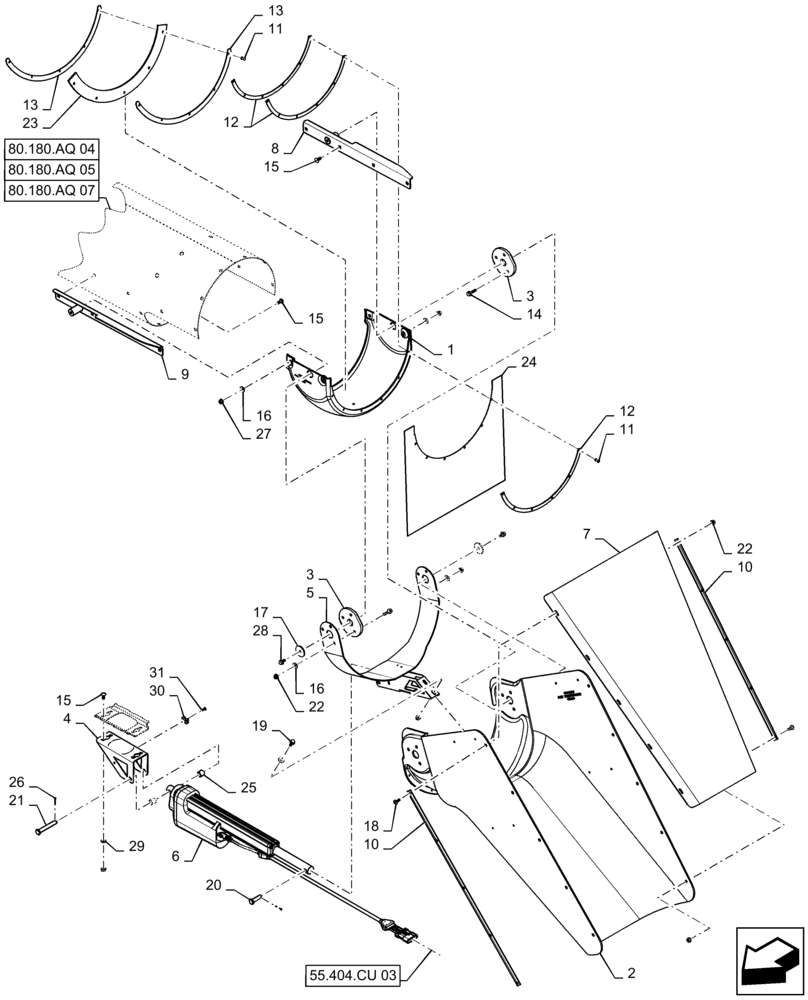

Схема запчастей Case IH 8240 - (80.180.AQ[03]) - VAR - 425344 - DISCHARGE SPOUT, PIVOT (80) - CROP STORAGE/UNLOADING
22
27
14
8
23
31
5
3
55.404.cu 03
9
26
21
2
18
17
3
10
22
19
12
10
13
30
12
15
11
16
20
15
6
28
24
7
1
15
16
11
80.180.aq 05
25
4
29
80.180.aq 04
80.180.aq 07
13

Артикул

Название

Примечание

Количество

1

47449506

SUPPORT

Boot

1шт.

2

47449507

SPOUT

Discharge

1шт.

3

84208552

SPACER,25.8mm ID x 110mm OD x 9mm Thk

2шт.

4

47797679

BRACKET

Unload Pivot Actuator, Mounting

1шт.

5

84522311

STRAP

Bottom, Support

1шт.

6

47789647

ACTUATOR

Unload Pivot

1шт.

7

47732177

STRIP

Discahrge Spout Cover, 763.6mm W x 943.5mm OAL x 4.6mm Thk

1шт.

8

84312367

BRACKET

Support, RH

1шт.

9

84312369

BRACKET

Support, LH

1шт.

10

84327223

PLATE

Fixing, 20mm W x 800mm OAL x 1.76mm Thk

2шт.

11

87610697

RIVET,3/16" OD x 0.825" OAL

11шт.

12

84380852

SUPPORT

Spout Boot, Front

3шт.

13

47446294

SUPPORT

Spout Boot, Rear

2шт.

14

87030775

BOLT,M8 x 38.1mm, Cl 10.9

6шт.

15

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

10шт.

16

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

12шт.

17

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

2шт.

18

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

10шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

20

412027

CLEVIS PIN,M12 x 45mm OAL

1шт.

21

86639103

CLEVIS PIN,M12 x 90mm OAL

1шт.

22

87681210

FLANGE NUT,M8 x 1.25, Cl 10

22шт.

23

47437518

SEAL

Boot, 4.6mm Thk

1шт.

24

47445009

SEAL

Discharge Spout, 490mm W x 450mm OAL x 1.574mm Thk

1шт.

25

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

2шт.

26

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

27

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

28

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

30

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

31

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

Выбрано товаров: 31
