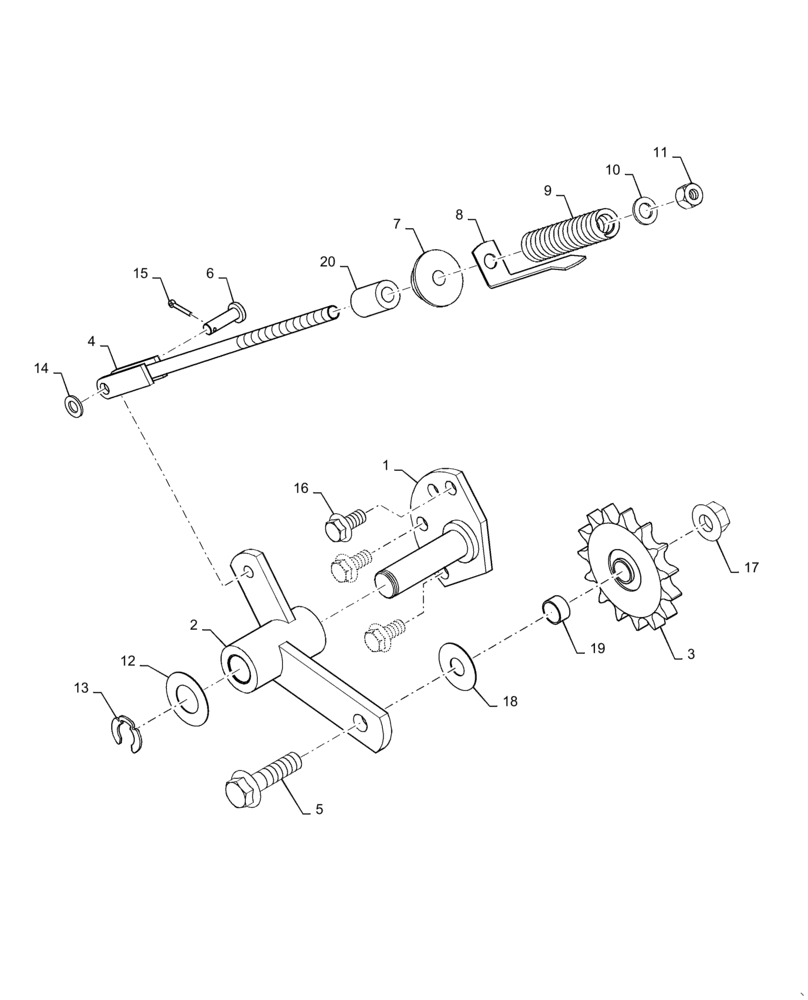

Запчасти Case IH 8240 (80.175.AK[02]) - VAR - 425364 - TENSIONER, CHAIN (80) - CROP STORAGE/UNLOADING

1

84170926

SHAFT

Tensioner Support, 101.9mm OAL

1шт.

2

84347469

ARM

Tension Adjuster

1шт.

3

84401598

SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk

Idler, 13 Tooth, 80 Standard

1шт.

4

86587035

ROD

Adjuster

1шт.

5

87675533

BOLT,M16 x 75.4mm, Cl 10.9

1шт.

6

390040

COTTER PIN,10mm OD x 39mm L

1шт.

7

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

1шт.

8

86596885

INDICATOR

Tension

1шт.

9

87540186

SPRING,129.3mm Free Length

Compression, 18 Coils

1шт.

10

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

11

412126

NUT,M12 x 1.75

1шт.

12

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

1шт.

13

579497

CIRCLIP,M20

1шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

15

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

16

87343550

FLANGE BOLT,Hex, M12 x 25mm

3шт.

17

86512498

FLANGE NUT,M16 x 2, Cl 10

1шт.

18

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

1шт.

19

87305411

SPACER,16.69mm ID x 22.23mm OD x 10.31mm Thk

1шт.

20

84572652

SPACER

13mm ID x 25.4mm OD x 39mm OAL

1шт.
