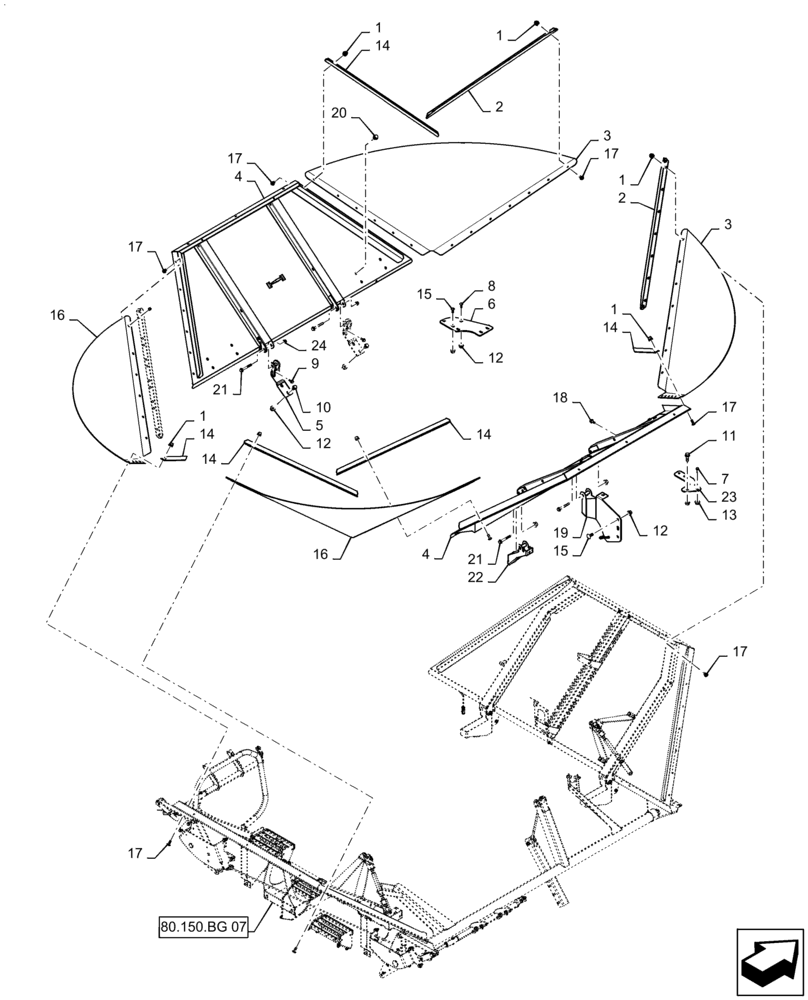

Запчасти Case IH 8240 (80.150.BG[06]) - VAR - 426367, 425369 - EXTENSION, GRAIN TANK (80) - CROP STORAGE/UNLOADING

1

86610200

THREADED INSERT,M8 x 1.25

50шт.

2

47625502

ANGLE

2шт.

3

47696738

SHEET,Rubber

LH/RH, Front, Grain Tank Extension

2шт.

4

84576513

EXTENSION

LH/RH, 34"

2шт.

5

47619045

HINGE

LH, Grain Tank Extension

2шт.

6

84510384

PLATE

LH, Grain Tank Extension, Mounting

1шт.

7

87030775

BOLT,M8 x 38.1mm, Cl 10.9

5шт.

8

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

2шт.

9

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

10

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

15шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

17шт.

14

47625506

ANGLE

6шт.

15

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

7шт.

16

84586000

SEAL SHEET

LH/RH, Rear, Grain Tank Extension

2шт.

17

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

50шт.

18

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

11шт.

19

47442127

HINGE

RH, Front, Grain Tank Extension

1шт.

20

87021006

BOLT,M10 x 26.4mm, Cl 10.9

8шт.

21

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

4шт.

22

47446873

HINGE

RH, Rear, Grain Tank Extension

1шт.

23

87551365

PLATE

RH, Grain Tank Extension, Mounting

1шт.

24

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.
