Запчасти Case IH 8240 (80.150.BG[05]) - VAR - 425371, 425367 - EXTENSION, GRAIN TANK, 410 BU (80) - CROP STORAGE/UNLOADING

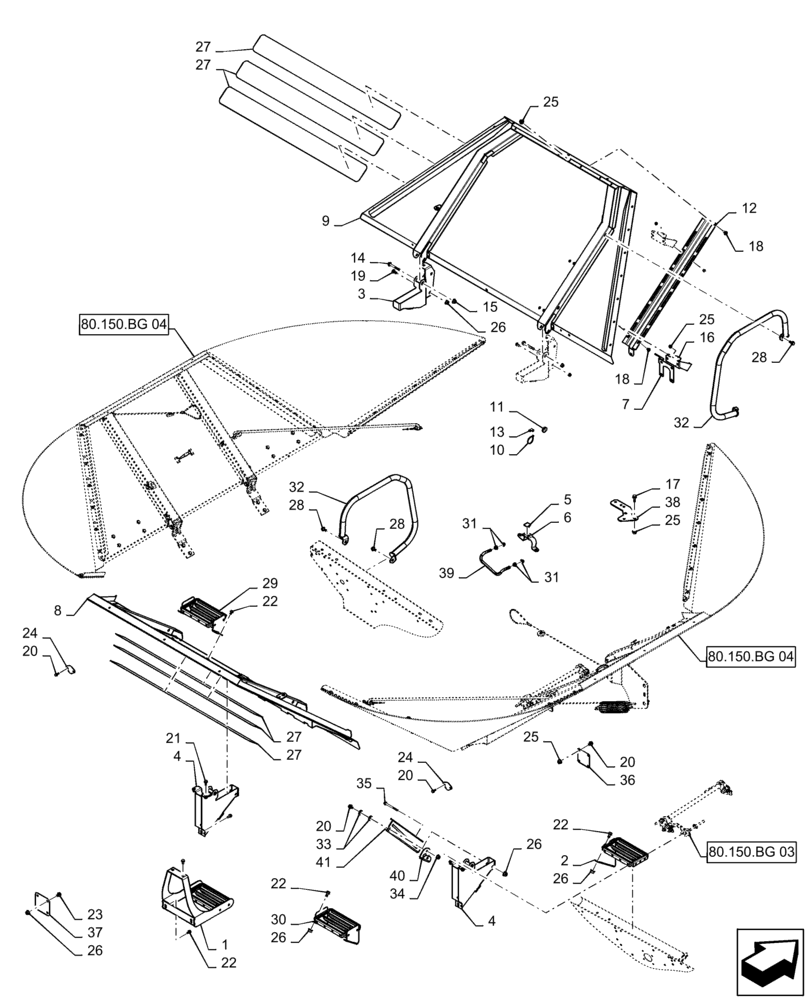

Схема запчастей Case IH 8240 - (80.150.BG[05]) - VAR - 425371, 425367 - EXTENSION, GRAIN TANK, 410 BU (80) - CROP STORAGE/UNLOADING
39
28
40
26
26
31
28
4
80.150.bg 03
25
22
80.150.bg 04
27
11
17
18
36
26
7
35
1
24
38
10
14
32
2
33
41
24
6
18
25
30
16
8
29
27
20
25
20
31
15
26
5
26
22
4
34
22
21
80.150.bg 04
32
13
22
27
25
3
19
20
9
28
20
12
37
23
27

Артикул

Название

Примечание

Количество

1

84395879

STEP

Grain Tank Extension, Middle

1шт.

2

84395881

STEP

Grain Tank Manual Extension

1шт.

3

87552212

HINGE

Front

2шт.

4

84174215

HINGE

Rear

2шт.

5

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

Grab Handle, Protection

1шт.

6

47787057

BRACKET

Grab Handle, Support

1шт.

7

84471274

BRACKET

Grain Tank Level Sensor, Support

1шт.

8

84586006

EXTENSION

Front/Rear, 34"

1шт.

9

84576508

EXTENSION

Front/Rear, 40"

1шт.

10

86566989

CABLE TIE,208mm L

1шт.

11

86625130

PLUG,Dome, 1.250" hole, Nylon

1шт.

12

84576518

BRACKET

Front, Grain Tank Extension, Support

1шт.

13

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

14

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

4шт.

15

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.

16

86975897

BRACKET

Grain Tank Level Sensor, Mounting

2шт.

17

87698833

BOLT,M8 x 33.1mm, Cl 10.9

13шт.

18

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

7шт.

19

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

6шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

22шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

22

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

11шт.

23

87021006

BOLT,M10 x 26.4mm, Cl 10.9

35шт.

24

84391053

SHEET

External Plug

2шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

33шт.

26

86050279

FLANGE NUT,M10 x 1.5, Cl 10

30шт.

27

86995792

PAD,125mm W x 1270mm L

Adhesive, Safety

6шт.

28

87343550

FLANGE BOLT,Hex, M12 x 25mm

5шт.

29

84393348

STEP

Grain Tank Extension, Upper

1шт.

30

84393346

STEP

Grain Tank Extension, Lower

1шт.

31

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

32

47488621

HANDLE

Grab

2шт.

33

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

34

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

35

87698861

BOLT,Hex, M10 x 110mm, Cl 10.9

1шт.

36

84120345

COVER

RH, Rear

1шт.

37

84267251

COVER

LH, Rear

1шт.

38

87551365

PLATE

Grain Tank Extension, Mounting

1шт.

39

87105130

HANDLE

Grab, Bubble - Up Auger

1шт.

40

87107781

BRACKET

Grain Tank Rear Latch, Mounting

1шт.

41

87107588

LATCH

Grain Tank, Rear

1шт.

Выбрано товаров: 41
