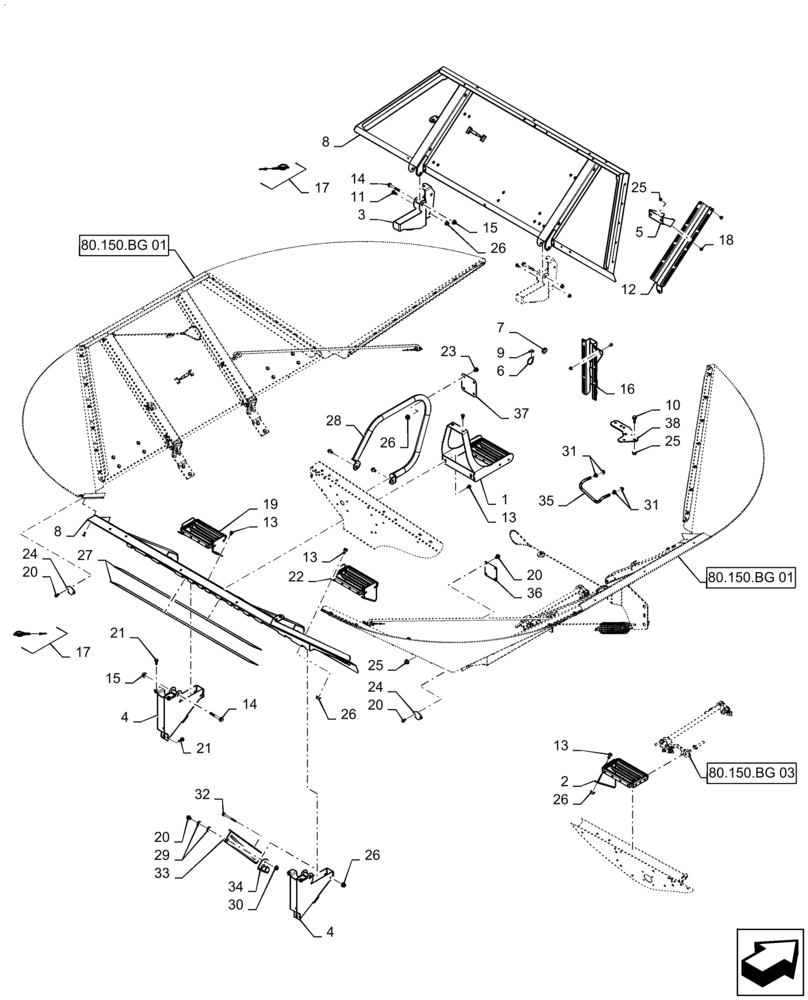

Запчасти Case IH 8240 (80.150.BG[02]) - VAR - 425371, 722763 - EXTENSION, GRAIN TANK, 315 BU (80) - CROP STORAGE/UNLOADING

1

84395879

STEP

Grain Tank Extension, Middle

1шт.

2

84395881

STEP

Grain Tank Manual Extension

1шт.

3

87552212

HINGE

Front

2шт.

4

84174215

HINGE

Rear

2шт.

5

86975897

BRACKET

Grain Tank Level Sensor, Mounting

1шт.

6

86566989

CABLE TIE,208mm L

1шт.

7

86625130

PLUG,Dome, 1.250" hole, Nylon

1шт.

8

47564908

PANEL

Front/Rear, 24"

2шт.

9

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

10

87698833

BOLT,M8 x 33.1mm, Cl 10.9

14шт.

11

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

6шт.

12

86975528

BRACKET

Front, Support, Upper

1шт.

13

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

14

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

4шт.

15

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.

16

87551580

BRACKET

Front, Support, Lower

1шт.

17

87106279

PIN,6.4mm OD

2шт.

18

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

8шт.

19

84393348

STEP

Grain Tank Extension, Upper

1шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

22шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

3шт.

22

84393346

STEP

Grain Tank Extension, Lower

1шт.

23

87021006

BOLT,M10 x 26.4mm, Cl 10.9

47шт.

24

84391053

SHEET

External Plug

2шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

35шт.

26

86050279

FLANGE NUT,M10 x 1.5, Cl 10

30шт.

27

86995792

PAD,125mm W x 1270mm L

Adhesive, Safety

2шт.

28

84510294

HANDLE

Grab

1шт.

29

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

30

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

31

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

32

87698861

BOLT,Hex, M10 x 110mm, Cl 10.9

1шт.

33

87107588

LATCH

Grain Tank, Rear

1шт.

34

87107781

BRACKET

Grain Tank Rear Latch, Mounting

1шт.

35

87105130

HANDLE

Grab, Bubble - Up Auger

1шт.

36

84120345

COVER

RH, Rear

1шт.

37

84267251

COVER

LH, Rear

1шт.

38

87551365

PLATE

Grain Tank Extension, Mounting

1шт.
