Запчасти Case IH 8240 (80.150.AI[01]) - VAR - 722763, 722513, 425252, 425369 - , TROUGH, GRAIN TANK (80) - CROP STORAGE/UNLOADING

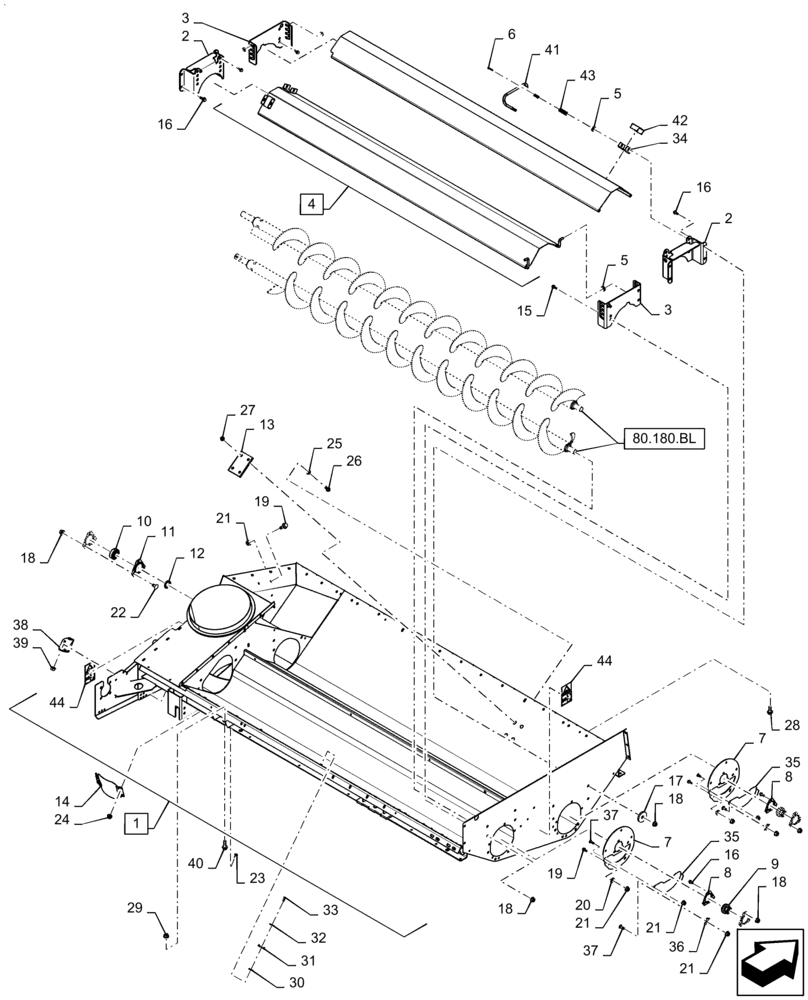

Схема запчастей Case IH 8240 - (80.150.AI[01]) - VAR - 722763, 722513, 425252, 425369 - , TROUGH, GRAIN TANK (80) - CROP STORAGE/UNLOADING
24
5
14
42
5
3
28
20
11
7
35
31
13
23
4
34
38
19
18
22
8
12
80.180.bl
27
40
10
33
37
35
15
25
36
39
16
18
9
37
17
32
21
41
18
26
6
43
44
44
16
7
8
16
3
30
21
19
21
29
2
21
1
18
2

Артикул

Название

Примечание

Количество

1

47573252

GRAIN TANK

Trough, Incl 44

1шт.

2

86975993

BRACKET

Support, Front

2шт.

3

86975994

BRACKET

Support, Rear

2шт.

4

86975412

COVER

Auger, Incl 5 - 6, 34, 41 - 43

2шт.

5

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

8шт.

6

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

8шт.

7

87342517

BEARING COVER

Grain Tank Cleanout, 71mm ID x 283mm OD x 4.37mm Thk

2шт.

8

84414986

FLANGE

62mm ID x 8.73mm Thk

4шт.

9

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

2шт.

10

84414985

FLANGED BEARING

72mm ID x 9.8mm Thk

4шт.

11

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

12

84075099

WASHER,36mm ID x 51mm OD x 6mm Thk

2шт.

13

87665292

PLATE

Support

1шт.

14

87583588

COVER ASSY

Lower Gearbox Access

1шт.

15

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

16

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

17шт.

17

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

21шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

18шт.

20

86588500

WASHER,9mm ID x 16mm OD x 2mm Thk

6шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

26шт.

22

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

6шт.

23

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

2шт.

24

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

25

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

4шт.

26

87695413

BOLT,M12 x 51.8mm, Cl 10.9

4шт.

27

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

28

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

4шт.

29

86512498

FLANGE NUT,M16 x 2, Cl 10

6шт.

30

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

31

362786

FASTENER

Wing Nut, 22mm W x 50mm Thk

2шт.

32

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

2шт.

33

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

34

87284631

COVER

Grain Tank Auger Tent

2шт.

35

87342513

COVER

Cleanout

2шт.

36

425093

CLAMP

J Clamp

9шт.

37

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

11шт.

38

84178875

BRACKET

Support

1шт.

39

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

40

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

41

86975418

HANDLE

Cover

2шт.

42

86976481

COVER

Cap

4шт.

43

80025823

SPRING,63.5mm Free Length

Compression, 13 Coils

4шт.

44

84004736

DANGER DECAL

Auger Entanglement

2шт.

Выбрано товаров: 44
