Запчасти Case IH 8240 (80.101.AR[03]) - VAR - 425528, 425529, 425399 - CLEAN GRAIN ELEVATOR, BOOT, SENSOR, NARROW TRACK VERSION (80) - CROP STORAGE/UNLOADING

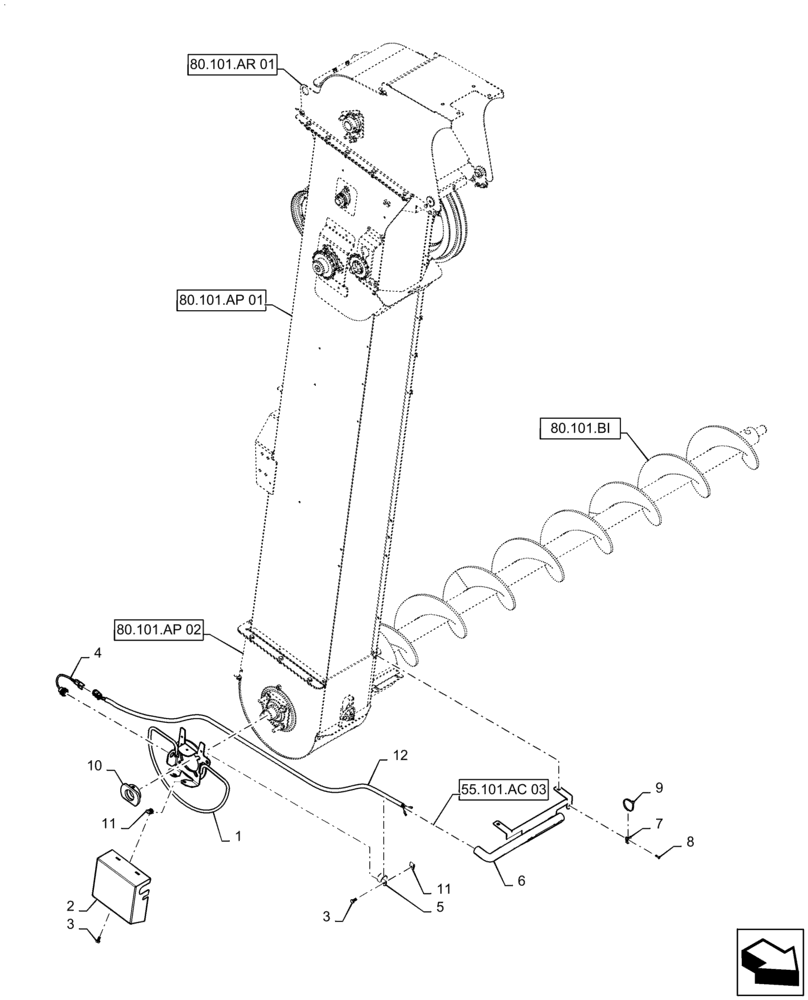

Схема запчастей Case IH 8240 - (80.101.AR[03]) - VAR - 425528, 425529, 425399 - CLEAN GRAIN ELEVATOR, BOOT, SENSOR, NARROW TRACK VERSION (80) - CROP STORAGE/UNLOADING
7
2
1
3
80.101.ar 01
80.101.bi
3
8
6
12
11
10
9
80.101.ap 02
4
55.101.ac 03
5
80.101.ap 01
11

Артикул

Название

Примечание

Количество

1

47697618

BRACKET

Mounting, Elevator Speed Sensor

1шт.

2

84401341

COVER

Elevator Speed Sensor

1шт.

3

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

4

87342073

SENSOR

Elevator Speed

1шт.

5

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

47519639

TUBE

Support

1шт.

7

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

5шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

5шт.

9

86566989

CABLE TIE,208mm L

5шт.

10

84399373

COLLAR

Locking, Elevator Speed Sensor Pickup, 40mm ID

1шт.

11

86508354

PUSH-ON NUT,M8 x 1.25

3шт.

12

47501359

WIRE HARNESS

Clean Grain RPM

1шт.

Выбрано товаров: 12
