Запчасти Case IH 8240 (74.140.CN) - VAR - 425198, 425199, 425513 - AUGER, DRIVE, TAILINGS DELIVERY (74) - CLEANING

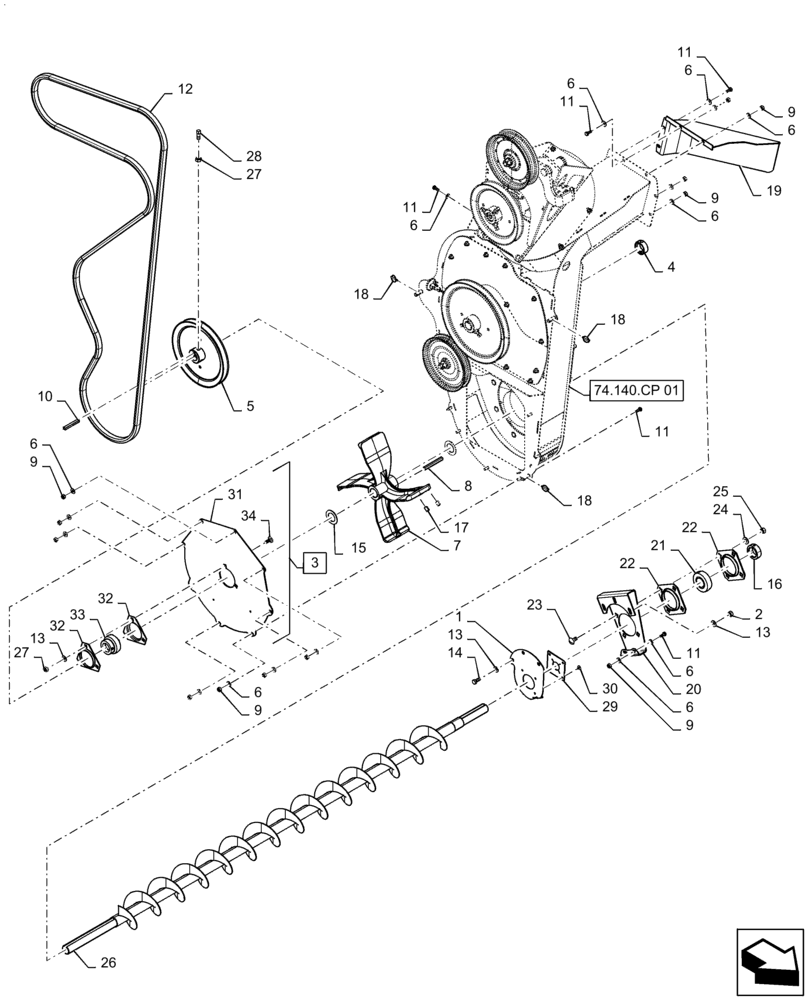

Схема запчастей Case IH 8240 - (74.140.CN) - VAR - 425198, 425199, 425513 - AUGER, DRIVE, TAILINGS DELIVERY (74) - CLEANING
9
2
34
6
6
6
27
13
17
11
9
6
13
4
21
12
6
29
28
11
9
10
11
11
30
24
13
31
9
5
11
32
18
6
6
23
1
8
27
6
7
15
18
6
16
19
22
26
25
20
22
32
9
6
3
33
18
9
74.140.cp 01
14

Артикул

Название

Примечание

Количество

1

87574415

COVER

Shaft, 60mm ID

1шт.

2

86500689

NUT,M10 x 1.5, Cl 10

3шт.

3

87108003

PLATE

Bearing, Incl 13, 27, 31 - 34

1шт.

4

86997053

COLLAR

Support

1шт.

5

87282789

PULLEY,299.9mm OD

Lower Impellar, 35.025mm ID x 304.78mm OD

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

31шт.

7

87542137

BLOWER

Standard, - VAR - 425198

1шт.

7

87549450

BLOWER

Extended Wear, - VAR - 425199, 425513

1шт.

8

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

14шт.

10

86996914

KEY

8mm W x 74.2mm OAL x 10mm Thk

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

17шт.

12

87283139

V-BELT,4622.8mm Nominal Length

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

15

87109160

SHIM,35.5mm ID x 58mm OD x 2.18mm Thk

1шт.

16

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

38mm ID x 60.325mm OD x 18.3mm Thk

1шт.

17

84814918

SET SCREW,M8 x 12mm, Cl 8.8

2шт.

18

87109290

LOCK PIN,25.4mm OD x 30mm L

4.76mm OD x 30mm OAL

3шт.

19

87339975

DEFLECTOR

Standard, - VAR - 425198

1шт.

19

87735231

DEFLECTOR

Extended Wear, - VAR - 425199, 425513

1шт.

20

87542571

SUPPORT

Bearing Plate, 91.9mm ID

1шт.

21

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

1шт.

22

86974037

FLANGE

Bearing Support, 80mm ID

2шт.

23

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

25

337475

NUT,M12, Cl 10

4шт.

26

84402650

AUGER

2465mm OAL, Standard, - VAR - 425198

1шт.

26

84402652

AUGER

1975mm OAL, Extended Wear, - VAR - 425199, 425513

1шт.

27

100016

NUT,M10 x 1.5, Cl 8

3шт.

28

393599

SET SCREW,M10 x 25mm, Cl 12.9

3шт.

29

87528798

SEAL

35mm ID x 90mm OD x 3.5mm Thk

1шт.

30

9512968

RIVET,Pop, 4.8mm OD x 11.2mm L

4.8mm OD x 15.9mm Head

4шт.

31

47666884

DOOR

Outside, Lower Impellar

1шт.

32

84414985

FLANGED BEARING

72mm ID x 9.525mm Thk

2шт.

33

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

34

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

Выбрано товаров: 37
