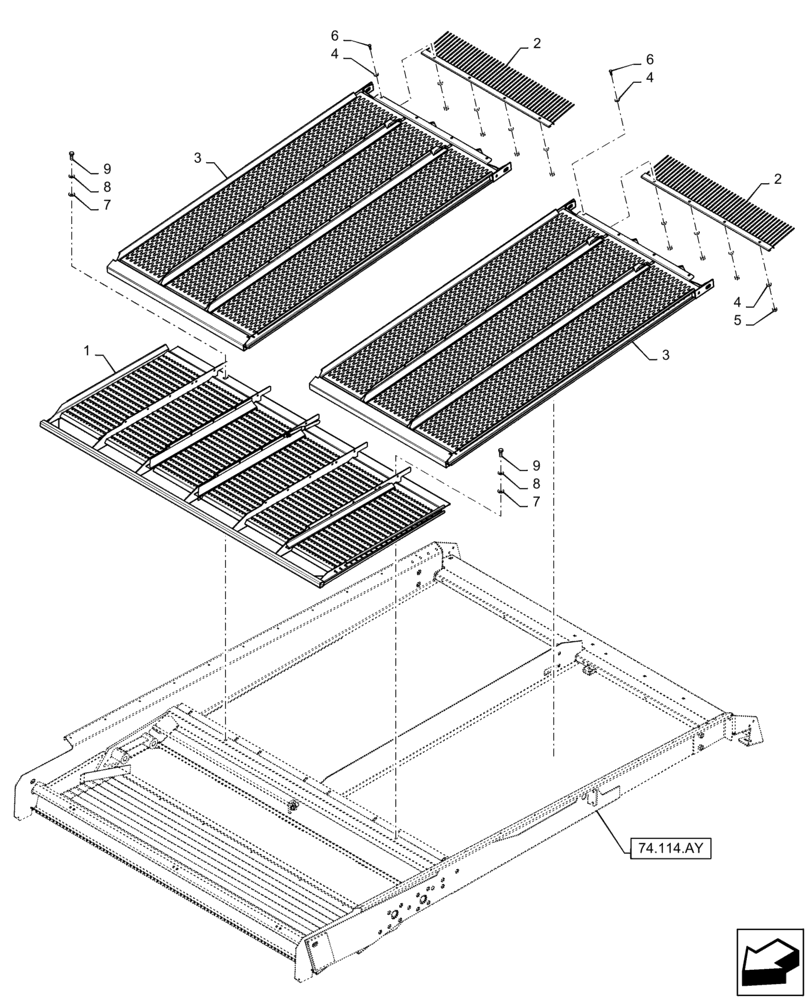

Запчасти Case IH 8240 (74.114.AZ[03]) - VAR - 425057 - UPPER SIEVE (74) - CLEANING

1

87109817

GRAIN SIEVE

1-1/8"

1шт.

2

84100961

RAKE,151mm L

151mm OAL

2шт.

3

87109830

SIEVE

Upper, 1-1/8"

2шт.

4

412653

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

16шт.

5

9706755

NUT,M6, Cl 8

8шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

7

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.
