Запчасти Case IH 8240 (66.360.AH[01]) - VAR - 425198, 425199, 425513 - FRAME, THRESHING CYLINDER (66) - THRESHING

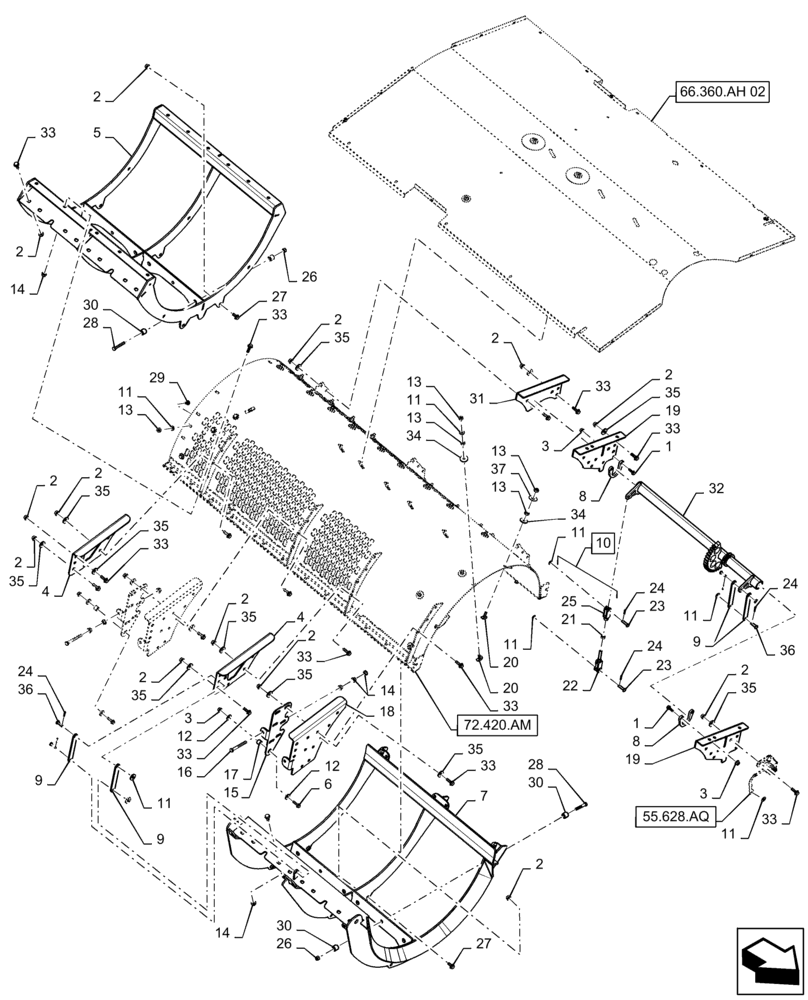

Схема запчастей Case IH 8240 - (66.360.AH[01]) - VAR - 425198, 425199, 425513 - FRAME, THRESHING CYLINDER (66) - THRESHING
33
4
35
33
9
35
19
33
23
2
3
11
7
35
2
10
27
24
2
72.420.am
35
33
3
24
25
35
33
13
11
20
27
24
1
5
16
2
20
2
29
22
14
11
66.360.ah 02
33
8
8
6
18
2
13
14
19
55.628.aq
30
35
28
11
15
34
33
11
4
17
9
26
37
36
2
2
30
26
2
23
35
36
35
35
35
33
11
33
12
24
34
30
31
1
11
13
3
2
32
14
9
12
2
21
13
2
2
33
28
13

Артикул

Название

Примечание

Количество

1

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

2

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

73шт.

3

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

6шт.

4

87281795

ANGLE

Support Bracket, RH

2шт.

5

84589921

FRAME

Assy, Threshing, Rear

1шт.

6

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

7

87391300

CONCAVE

Frame Assy, Front

1шт.

8

86997859

BRACKET

Supporting, LH, 52mm ID

2шт.

9

86998439

BAR

Support, 194mm OAL x 25.4mm W

4шт.

10

86980964

CONNECTING LINK

Incl 21 - 22, 25

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

13

100016

NUT,M10 x 1.5, Cl 8

13шт.

14

43436

FLANGE NUT,M12

22шт.

15

47447429

BRACKET

Mounting, 326mm OAL

2шт.

16

9837937

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

17

86998150

SPACER,11.11mm ID x 22.23mm OD x 16mm L

11.11mm ID x 22.23mm OD x 16mm OAL

2шт.

18

47447428

BRACKET

Support, RH

2шт.

19

87359399

ANGLE

Support Bracket, LH

2шт.

20

87106338

BOLT

M10 x 30mm, Cl 8.8

4шт.

21

9706685

NUT,M12 x 1.75, Cl 8

1шт.

22

87000108

SHAFT

11mm ID x 135.7mm OAL

1шт.

23

9507095

CLEVIS PIN,10mm OD x 40mm L

2шт.

24

130003

COTTER PIN,3mm OD x 30mm OAL

6шт.

25

86633519

CLEVIS

M12 x 48mm OAL

1шт.

26

100038

NUT,M12 x 1.75, Cl 8

8шт.

27

87343550

FLANGE BOLT,Hex, M12 x 25mm

8шт.

28

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

8шт.

29

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

30

86998116

PIN,25.4mm OD x 27mm L

13.5mm ID x 25.4mm OD x

16шт.

31

87281791

ANGLE

Support Bracket, LH

1шт.

32

87361505

TORSION BAR

Torsion, Concave, 863.7mm OAL

1шт.

33

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

81шт.

34

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

4шт.

35

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

53шт.

36

390040

COTTER PIN,10mm OD x 39mm L

4шт.

37

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

3шт.

Выбрано товаров: 37
