Запчасти Case IH 8240 (60.150.AO[01]) - VAR - 425464 - DRIVE SHAFT, FEEDER (60) - PRODUCT FEEDING

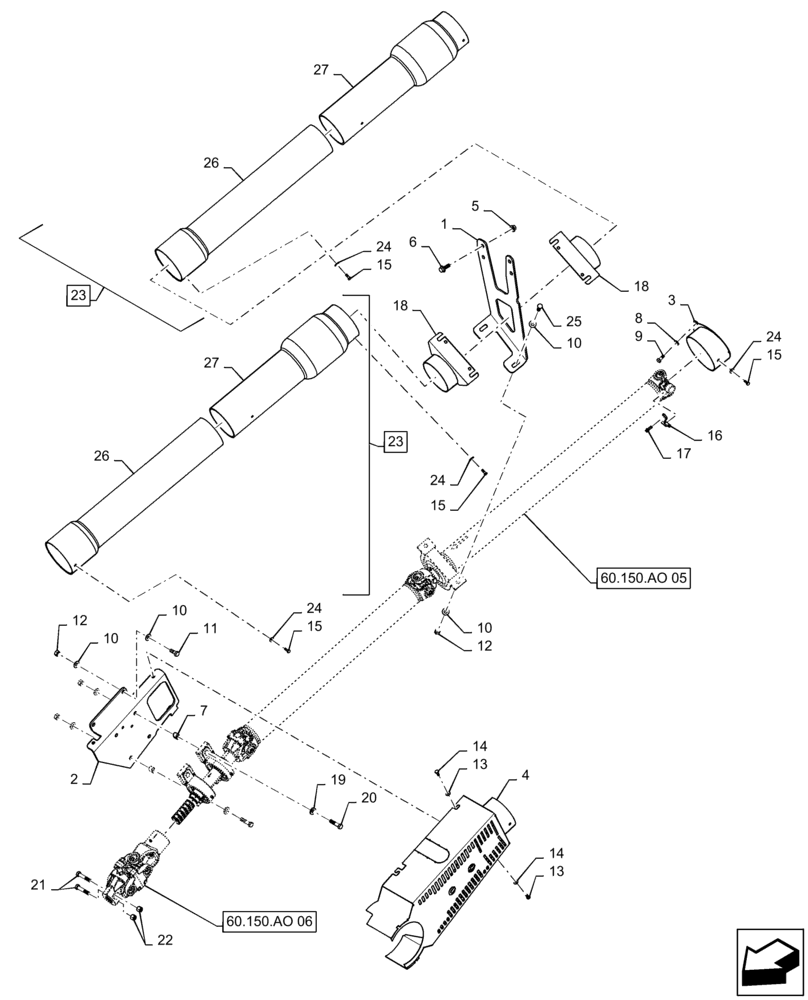

Схема запчастей Case IH 8240 - (60.150.AO[01]) - VAR - 425464 - DRIVE SHAFT, FEEDER (60) - PRODUCT FEEDING
3
17
18
8
20
24
26
24
1
25
24
15
10
10
4
27
14
13
24
60.150.ao 06
9
19
15
14
18
11
23
23
16
60.150.ao 05
5
12
7
22
15
13
15
12
6
27
10
21
10
2
26

Артикул

Название

Примечание

Количество

1

47575647

BRACKET

Support Bearing

1шт.

2

84310960

BRACKET

Feeder/Header Pillowblock

1шт.

3

87673747

SHIELD

Variable

1шт.

4

47425909

SHIELD

Feeder Drive Shaft

1шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

6

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

2шт.

7

84475437

SPACER

Alignment, 12.3mm ID x 15mm OAL

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

11шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

12

9706685

NUT,M12 x 1.75, Cl 8

6шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

15

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

4шт.

16

9672925

SECURING STRAP

35.1mm ID x 73.2mm OAL x 22.4mm Thk

2шт.

17

87010436

12 PT SCREW,3/8"-24 x 1-1/5", Cl 8

4шт.

18

87673744

BRACKET

Center Driveshaft

2шт.

19

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

20

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

21

87021759

BOLT,M12 x 1.75 x 60mm, Cl 10.9

2шт.

22

87021758

NUT,M12 x 1.75, Cl 10

2шт.

23

87106571

SHIELD

Drive Shaft Guard, Incl 26 - 27

2шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

25

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

26

NSS

NOT SOLD SEPARAT

Sleeve, Feeder/Header Driveshaft, Inner, Incl in 23

2шт.

27

NSS

NOT SOLD SEPARAT

Sleeve, Feeder/Header Driveshaft, Outer, Incl in 23

2шт.

Выбрано товаров: 27
