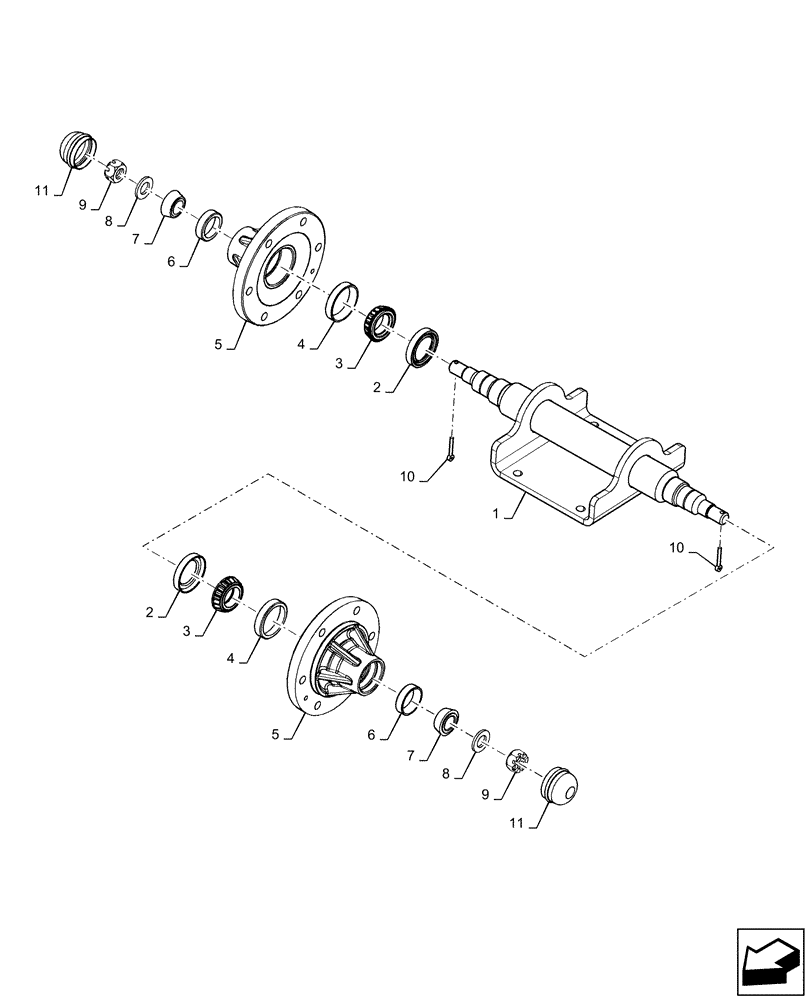

Запчасти Case IH 8240 (60.110.AL[02]) - VAR - 722090, 722374, 722203 - AXLE, SUPPORT, FEEDER (60) - PRODUCT FEEDING

1

47625283

AXLE

Support, Base

1шт.

2

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

Rear, 1.706" ID x 2.334" OD

2шт.

3

36726

BEARING CONE,31.75mm ID x 16.76mm W

2шт.

4

36723

BEARING CUP,59.16mm OD x 11.81mm W

Inner Race, 2.329" OD

2шт.

5

86631051

HUB

Wheel, 1.5" ID x 7.25" OD

2шт.

6

574810

BEARING CUP,45.26mm OD x 12.06mm W

Outer Race, 1.782" OD x 0.475" Thk

2шт.

7

574809

BEARING CONE,21.98mm ID x 16.64mm W

2шт.

8

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

Taper Roller, 49/64" ID x 1-3/8" OD

2шт.

9

88886

SLOTTED NUT,3/4"-16

2шт.

10

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

11

249130

HUB CAP

Dust

2шт.
