Запчасти Case IH 8240 (55.510.AH[06]) - LOWER ROOF WIRE HARNESS & CONNECTOR, CONTINUED (55) - ELECTRICAL SYSTEMS

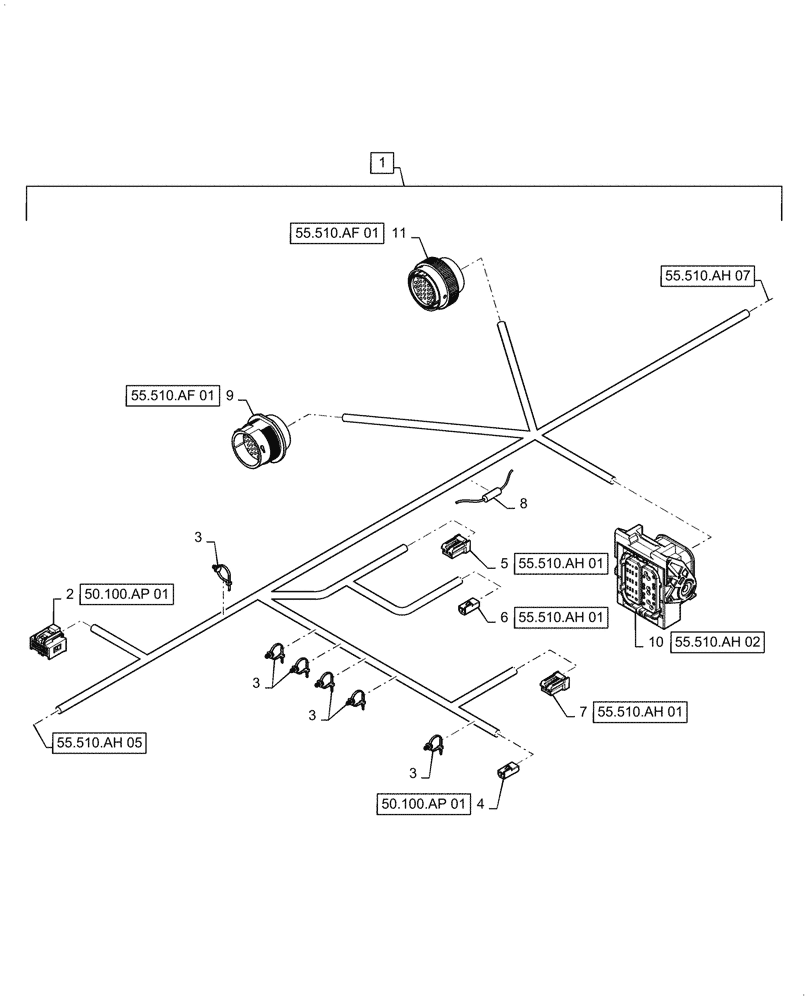

Схема запчастей Case IH 8240 - (55.510.AH[06]) - LOWER ROOF WIRE HARNESS & CONNECTOR, CONTINUED (55) - ELECTRICAL SYSTEMS
50.100.ap 01
3
2
10
1
8
3
3
4
3
9
5
11
7
6
55.510.ah 07
55.510.ah 01
55.510.ah 01
55.510.ah 01
55.510.af 01
55.510.af 01
55.510.ah 02
55.510.ah 05
50.100.ap 01

Артикул

Название

Примечание

Количество

1

47705806

WIRE HARNESS

Lower Roof, Incl 2 - 11, Continued

1шт.

2

84491253

WIRE CONNECTOR

HVAC Control Panel, X-128

1шт.

2

84479035

RETAINER

HVAC Control Panel, X-128

1шт.

2

84479173

TERMINAL CONNECTOR,Tin, 0.35 - 0.50mm

HVAC Control Panel, X-128

12шт.

3

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

6шт.

4

87697541

ELEC CONNECTOR

Fresh Air Inlet Temp, X-701

1шт.

4

87705061

RETAINER

Fresh Air Inlet Temp, X-701

1шт.

4

84199545

TERMINAL

Fresh Air Inlet Temp, X-701

2шт.

5

87690957

TERMINAL

RH Rear Speaker, X-122

1шт.

5

87680668

ELEC. TERMINAL PIN,Tin, 0.50 - 1.40mm

RH Rear Speaker, X-122

2шт.

6

87697541

ELEC CONNECTOR

Cab Air Temp, X-149

1шт.

6

87705061

RETAINER

Cab Air Temp, X-149

1шт.

6

84199545

TERMINAL

Cab Air Temp, X-149

2шт.

7

87690957

TERMINAL

LH Rear Speaker, X-123

1шт.

7

87680668

ELEC. TERMINAL PIN,Tin, 0.50 - 1.40mm

LH Rear Speaker, X-123

2шт.

8

81878921

DIODE

Light Control, D-225

1шт.

9

87700162

ELEC CONNECTOR

Cab Main Harness, X-007

1шт.

9

87695623

ELEC. TERMINAL PIN

Cab Main Harness, X-007

26шт.

9

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Cab Main Harness, X-007

4шт.

10

84536445

ELEC CONNECTOR

Cab Roof Upper Harness, X-036

1шт.

10

84520480

Cab Roof Upper Harness, X-036

ELEC. TERMINAL PIN

1шт.

10

87695923

TERMINAL

Cab Roof Upper Harness, X-036

5шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Cab Roof Upper Harness, X-036

23шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Roof Upper Harness, X-036

1шт.

10

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Cab Roof Upper Harness, X-036

5шт.

11

87700171

ELEC CONNECTOR

Cab Main Harness, X-345

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Main Harness, X-345

6шт.

Выбрано товаров: 27
