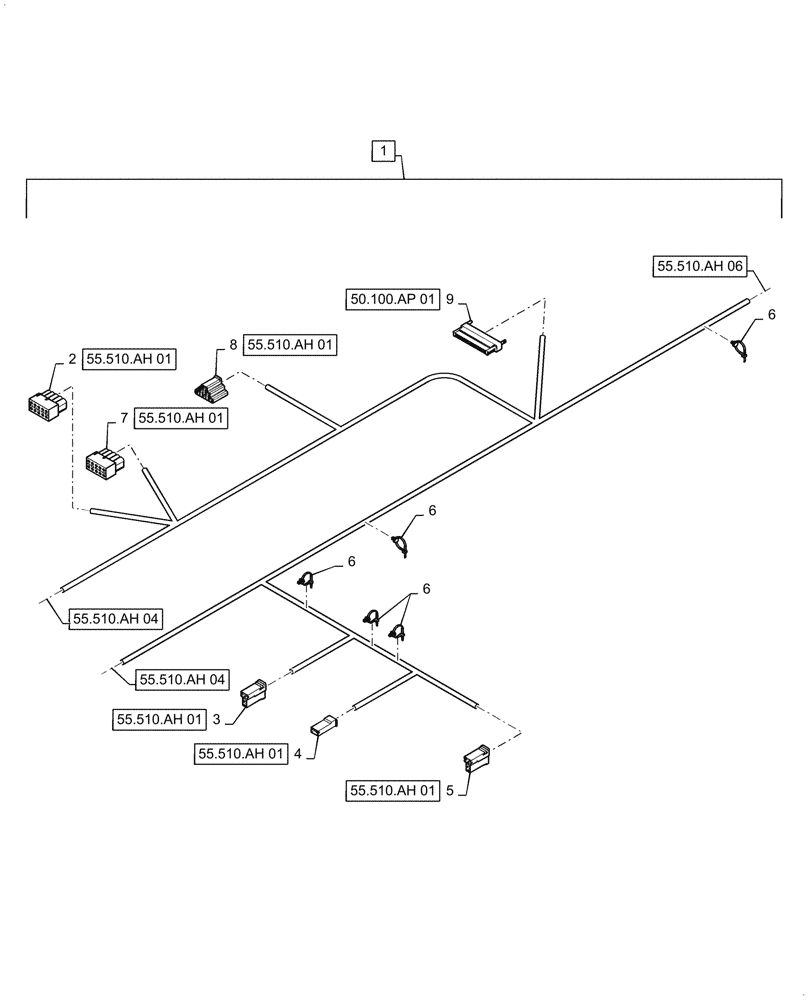

Запчасти Case IH 8240 (55.510.AH[05]) - LOWER ROOF WIRE HARNESS & CONNECTOR, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47705806

WIRE HARNESS

Lower Roof, Incl 2 - 9, Continued

1шт.

2

84159859

ELEC CONNECTOR,Female, 10 Cavities

Distance Spot Lights Switch, X-146

1шт.

2

87694670

ELEC. TERMINAL PIN

Distance Spot Lights Switch, X-146

2шт.

2

87694668

ELEC CONNECTOR

Distance Spot Lights Switch, X-146

2шт.

3

87691950

TERMINAL CONNECTOR

RH Console Projection, X-138

1шт.

3

84397998

TERMINAL

RH Console Projection, X-138

2шт.

4

87581782

ELEC CONNECTOR,Female

Dome Light, X-131

1шт.

4

87691548

TERMINAL

Dome Light, X-131

1шт.

5

87691950

TERMINAL CONNECTOR

Dome Light, X-129

1шт.

5

84397998

TERMINAL

Dome Light, X-129

2шт.

6

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

5шт.

7

84159859

ELEC CONNECTOR,Female, 10 Cavities

Beacon Light Switch, X-130

1шт.

7

87694668

ELEC CONNECTOR

Beacon Light Switch, X-130

7шт.

8

87697775

ELEC CONNECTOR

Rotory Light Switch, X-132

1шт.

8

87697660

TERMINAL

Rotory Light Switch, X-132

2шт.

8

87709400

ELEC. TERMINAL PIN

Rotory Light Switch, X-132

3шт.

9

87693055

ELEC CONNECTOR

ATC Control Module, X-397

1шт.

9

87693316

RETAINER

ATC Control Module, X-397

1шт.

9

87693318

RETAINER

ATC Control Module, X-397

1шт.

9

87693315

RUBBER SEAL

ATC Control Module, X-397

1шт.

9

87693269

ELEC. TERMINAL PIN

ATC Control Module, X-397

24шт.

9

87693268

TERMINAL

ATC Control Module, X-397

3шт.
