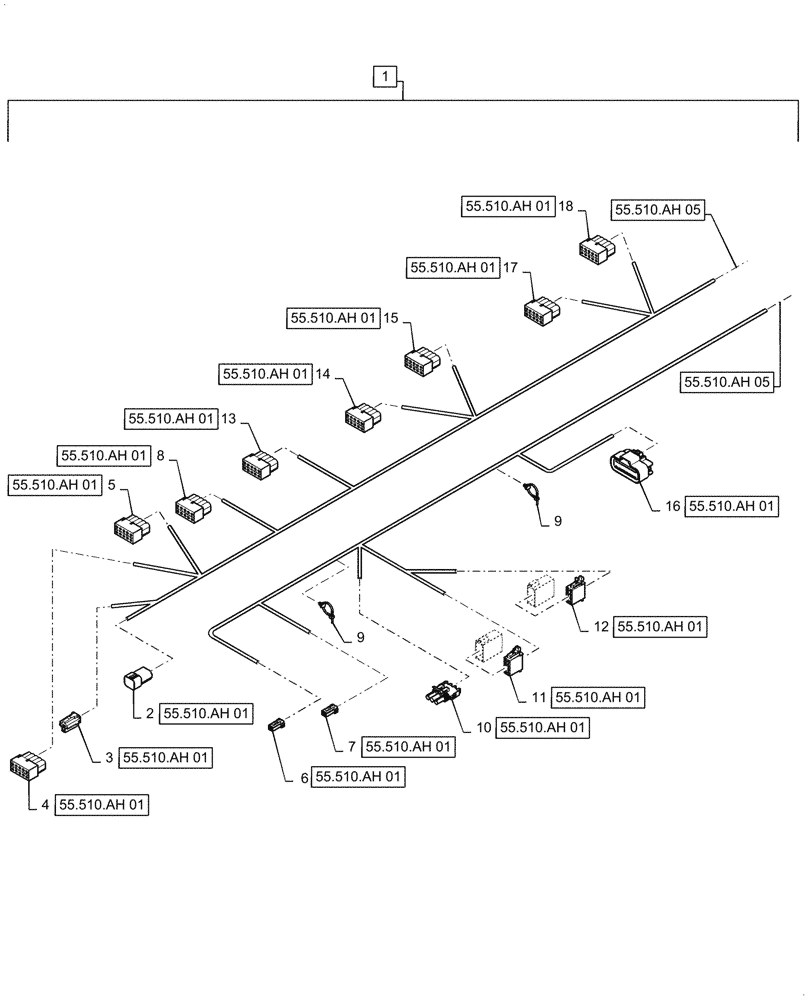

Запчасти Case IH 8240 (55.510.AH[04]) - LOWER ROOF WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47705806

WIRE HARNESS

Lower Roof, Incl 2 - 18

1шт.

2

84807268

WIRE CONNECTOR,Male, Pole

Mirror Adjust, X-126

1шт.

2

84807269

WIRE CONNECTOR

Mirror Adjust, X-126

1шт.

2

87693269

ELEC. TERMINAL PIN

Mirror Adjust, X-126

8шт.

3

84398827

WIRE CONNECTOR

Headliner Aux Outlet, X-141

1шт.

3

84178477

RETAINER

Headliner Aux Outlet, X-141

1шт.

3

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Headliner Aux Outlet, X-141

2шт.

4

84159859

ELEC CONNECTOR,Female, 10 Cavities

Mirror Heater Switch, X-127

1шт.

4

87694668

ELEC CONNECTOR

Mirror Heater Switch, X-127

4шт.

5

84159859

ELEC CONNECTOR,Female, 10 Cavities

Unload Unfold Switch, X-142

1шт.

5

87694668

ELEC CONNECTOR

Unload Unfold Switch, X-142

7шт.

6

87736475

WIRE CONNECTOR,Male, 2 Cavities/Pins

LH Front Speaker, X-136

1шт.

6

87691922

ELEC CONNECTOR

LH Front Speaker, X-136

2шт.

7

87736475

WIRE CONNECTOR,Male, 2 Cavities/Pins

RH Front Speaker, X-139

1шт.

7

87691922

ELEC CONNECTOR

RH Front Speaker, X-139

2шт.

8

84159859

ELEC CONNECTOR,Female, 10 Cavities

Grain Tank Covers Switch, X-125

1шт.

8

87694668

ELEC CONNECTOR

Grain Tank Covers Switch, X-125

6шт.

9

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

10

87644909

WIRE CONNECTOR,Female, 3 Pins

Auxiliary Power, X-082

1шт.

10

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Auxiliary Power, X-082

2шт.

11

87709371

ELEC CONNECTOR,Female, 8 Cavities

AM/FM Radio, X-315

1шт.

11

87714514

ELEC CONNECTOR

AM/FM Radio, X-315

1шт.

11

84247613

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

AM/FM Radio, X-315

8шт.

12

87709660

ELEC CONNECTOR,Female, 2 Cavities

AM/FM Radio, X-314

1шт.

12

87714270

ELEC CONNECTOR

AM/FM Radio, X-314

1шт.

12

84247613

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

AM/FM Radio, X-314

1шт.

12

87691915

TERMINAL CONNECTOR

AM/FM Radio, X-314

3шт.

13

84159859

ELEC CONNECTOR,Female, 10 Cavities

Autoguidance Control, X-484

1шт.

13

87694668

ELEC CONNECTOR

Autoguidance Control, X-484

4шт.

14

84159859

ELEC CONNECTOR,Female, 10 Cavities

Washer Switch, X-134

1шт.

15

84159859

ELEC CONNECTOR,Female, 10 Cavities

Road Mode Switch, X-049

1шт.

15

87694668

ELEC CONNECTOR

Road Mode Switch, X-049

4шт.

16

87696573

ELEC CONNECTOR

A-Post Display, X-347

1шт.

16

87688853

WIRE CONNECTOR

A-Post Display, X-347

1шт.

16

87694139

ELEC. TERMINAL PIN

A-Post Display, X-347

2шт.

16

84193153

TERMINAL

A-Post Display, X-347

3шт.

17

84159859

ELEC CONNECTOR,Female, 10 Cavities

Wiper Switch, X-135

1шт.

17

87694670

ELEC. TERMINAL PIN

Wiper Switch, X-135

5шт.

17

87694668

ELEC CONNECTOR

Wiper Switch, X-135

2шт.

18

84159859

ELEC CONNECTOR,Female, 10 Cavities

Hazard Switch, X-042

1шт.

18

87694668

ELEC CONNECTOR

Hazard Switch, X-042

7шт.
