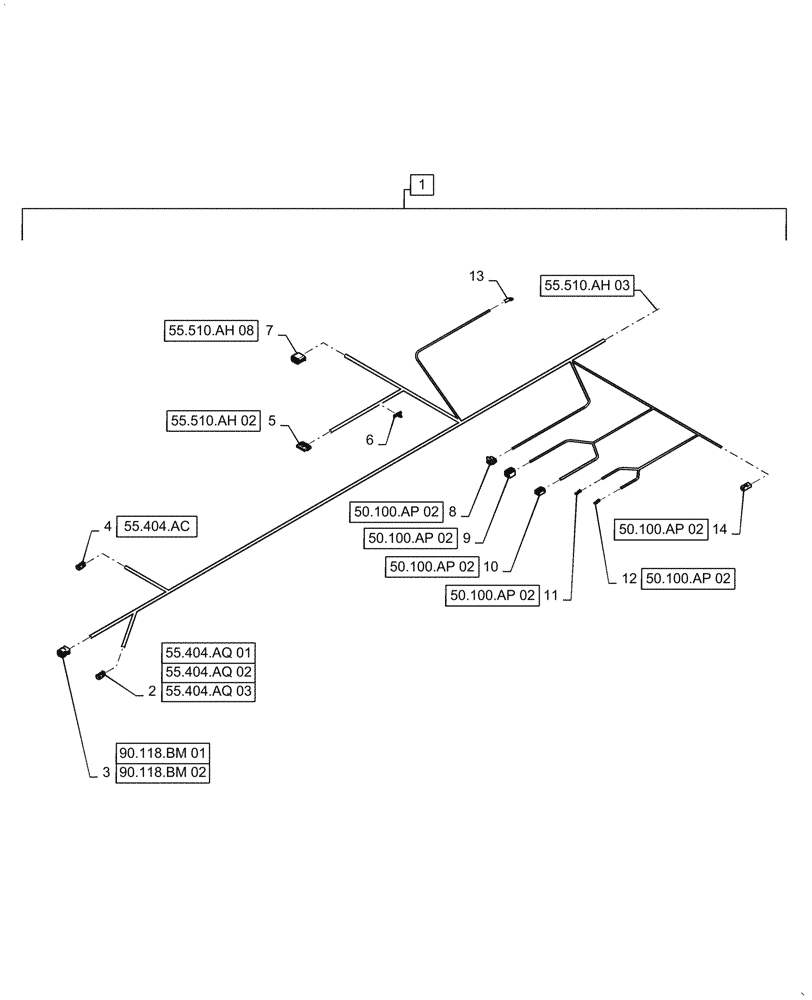

Запчасти Case IH 8240 (55.510.AH[02]) - UPPER ROOF WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47705803

WIRE HARNESS

Upper Roof, Incl 2 - 14

1шт.

2

87695909

ELEC CONNECTOR,Female, 2 Pole

LH Distance Lights, X-145

1шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

LH Distance Lights, X-145

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Distance Lights, X-145

2шт.

3

87708152

ELEC CONNECTOR

LH Side Mirror/Worklight, X-111

1шт.

3

84806312

LOCKING TAB,Wedge Lock

LH Side Mirror/Worklight, X-111

1шт.

3

84068583

PLUG,12 - 16 Ga, White

LH Side Mirror/Worklight, X-111

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Side Mirror/Worklight, X-111

2шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Side Mirror/Worklight, X-111

5шт.

4

87695909

ELEC CONNECTOR,Female, 2 Pole

LH Beacon Light, X-113

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

LH Beacon Light, X-113

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Beacon Light, X-113

2шт.

5

87693690

ELEC CONNECTOR

Wiper Motor, X-116

1шт.

5

84199352

ELEC CONNECTOR

Wiper Motor, X-116

1шт.

5

87686742

PLUG

Wiper Motor, X-116

1шт.

5

87680656

CONTACT

Wiper Motor, X-116

4шт.

6

87705056

CLIP

Fir Tree

1шт.

7

87708149

ELEC CONNECTOR

Cab Roof Light Harness, X-033

1шт.

7

87695651

LOCKING TAB,Wedge Lock

Cab Roof Light Harness, X-033

1шт.

7

84068583

PLUG,12 - 16 Ga, White

Cab Roof Light Harness, X-033

4шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cab Roof Light Harness, X-033

8шт.

8

87694714

ELEC CONNECTOR,Female, 6 Cavities

Water Valve, X-151

1шт.

8

87694719

LOCKING TAB,Wedge Lock

Water Valve, X-151

1шт.

8

87689636

PLUG,Red, Taxi Seal Connector Cavity

Water Valve, X-151

3шт.

8

87688852

ELEC. TERMINAL PIN

Water Valve, X-151

3шт.

9

84392737

ELEC CONNECTOR

Motor Drive 1, X-152

1шт.

9

84289211

ELEC. TERMINAL PIN

Motor Drive 1, X-152

1шт.

9

84393188

ELEC. TERMINAL PIN

Motor Drive 1, X-152

2шт.

10

84392738

ELEC CONNECTOR

Motor Drive 2, X-396

1шт.

10

84393188

ELEC. TERMINAL PIN

Motor Drive 2, X-396

2шт.

11

87697617

TERMINAL

Blower Motor (-), X-157

1шт.

12

87697617

TERMINAL

Blower Motor (+), X-156

1шт.

13

84399575

TERMINAL,5/16" Ring, SAE 8

Chassis Ground, X-940

1шт.

14

87697541

ELEC CONNECTOR

Air Outlet Temp, X-148

1шт.

14

87705061

RETAINER

Air Outlet Temp, X-148

1шт.

14

84199545

TERMINAL

Air Outlet Temp, X-148

2шт.
