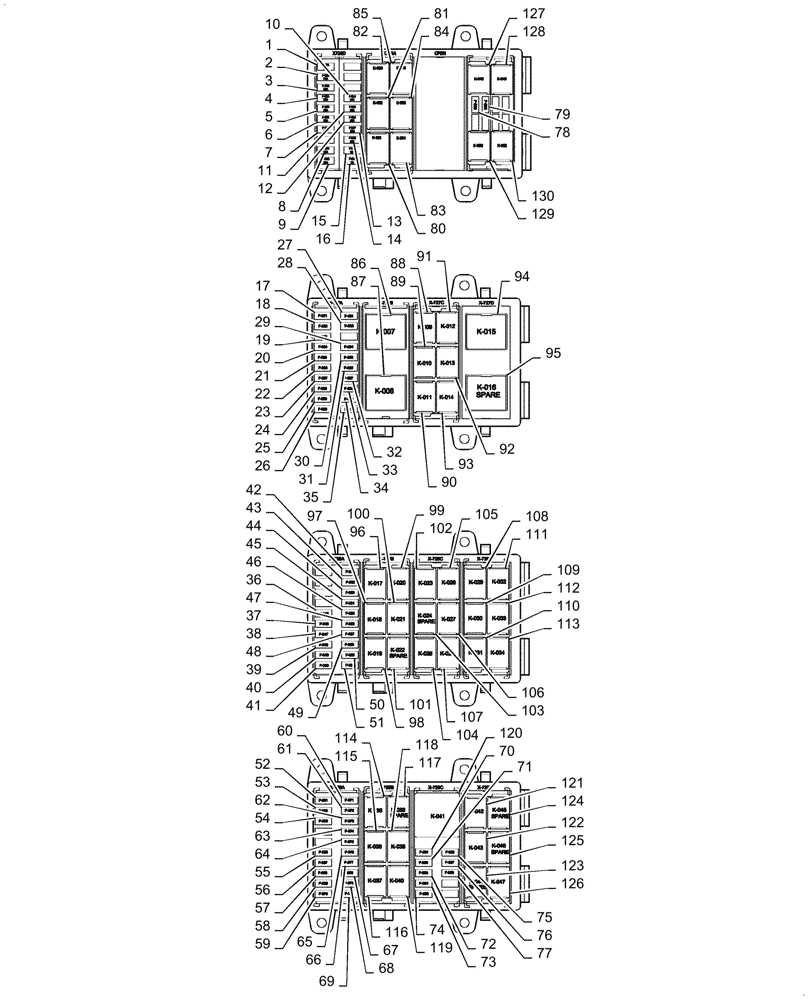

Запчасти Case IH 8240 (55.510.AF[08]) - CAB MAIN FUSE BOX (55) - ELECTRICAL SYSTEMS

1

84127705

FUSE,25A, Mini, White

Outer Roof Lights, F-001

1шт.

2

84127705

FUSE,25A, Mini, White

Mid Outer Roof Lights, F-002

1шт.

3

84127705

FUSE,25A, Mini, White

Inner Roof Lights, F-003

1шт.

4

84127705

FUSE,25A, Mini, White

Rotary Light Switch Power, F-004

1шт.

5

84127704

FUSE,20A, Mini, Yellow

Dome Light, F-005

1шт.

6

84127708

FUSE,30A, Mini, Green

Side/Exit Light, F-006

1шт.

7

84127705

FUSE,25A, Mini, White

Distance LED, F-007

1шт.

8

84127703

FUSE,15A, Mini, Blue

B+ (Radio Memory), F-009

1шт.

9

84127703

FUSE,15A, Mini, Blue

After Cut/Grain Tank Lights, F-010

1шт.

10

84127702

FUSE,10A, Mini, Red

CUCM, Cover, Road, Beacon Switches, F-014

1шт.

11

84127702

FUSE,10A, Mini, Red

Washer Motor, F-015

1шт.

12

84127703

FUSE,15A, Mini, Blue

Wiper Motor, F-016

1шт.

13

84127708

FUSE,30A, Mini, Green

Roof Blower Motor, F-017

1шт.

14

84127702

FUSE,10A, Mini, Red

ACC, Switch B+ Radio, F-018

1шт.

15

84127702

FUSE,10A, Mini, Red

Headliner Aux Outlet, F-019

1шт.

16

84153830

FUSE,5A, Mini, Beige

A-Post Instrumentation Switch B+, F-020

1шт.

17

84127703

FUSE,15A, Mini, Blue

UCM-1 12VD, F-021

1шт.

18

84127703

FUSE,15A, Mini, Blue

UCM-1 12VF3, F-022

1шт.

19

84127703

FUSE,15A, Mini, Blue

UCM-1 12VH1, F-023

1шт.

20

84127703

FUSE,15A, Mini, Blue

UCM-1 12VH, F-024

1шт.

21

84127703

FUSE,15A, Mini, Blue

UCM-1 12VF1, F-025

1шт.

22

84127703

FUSE,15A, Mini, Blue

UCM-1 12VM, F-026

1шт.

23

84127703

FUSE,15A, Mini, Blue

UCM-1 12VS, F-027

1шт.

24

84127703

FUSE,15A, Mini, Blue

UCM-1 12VU2, F-028

1шт.

25

84127703

FUSE,15A, Mini, Blue

UCM-1 12VU1, F-029

1шт.

26

84127703

FUSE,15A, Mini, Blue

UCM-1 12VTI, F-030

1шт.

27

84127703

FUSE,15A, Mini, Blue

RHC Display, F-031

1шт.

28

84127703

FUSE,15A, Mini, Blue

High Beam Road Lights, F-032

1шт.

29

84127703

FUSE,15A, Mini, Blue

UCM-2 12VU, F-034

1шт.

30

84127703

FUSE,15A, Mini, Blue

UCM-2 12VS, F-035

1шт.

31

84127703

FUSE,15A, Mini, Blue

UCM-2 12VM, F-036

1шт.

32

84127703

FUSE,15A, Mini, Blue

UCM-2 12VH, F-037

1шт.

33

84127703

FUSE,15A, Mini, Blue

UCM-2 12VH1, F-038

1шт.

34

84127703

FUSE,15A, Mini, Blue

UCM-2 12VF3, F-039

1шт.

35

84127703

FUSE,15A, Mini, Blue

UCM-2 12VD, F-040

1шт.

36

84127703

FUSE,15A, Mini, Blue

Key Switch Power Outlet, F-045

1шт.

37

84127704

FUSE,20A, Mini, Yellow

UCM-1 Power, F-046

1шт.

38

84127704

FUSE,20A, Mini, Yellow

UCM-2 Power, F-047

1шт.

39

84127703

FUSE,15A, Mini, Blue

Key Switch, F-048

1шт.

40

84127702

FUSE,10A, Mini, Red

Memory, F-049

1шт.

41

84127703

FUSE,15A, Mini, Blue

Starter Relay, F-050

1шт.

42

84152583

FUSE,7.5A, Mini, Brown

Heated Seat, F-051

1шт.

43

84127702

FUSE,10A, Mini, Red

Accessory Outlet, F-052

1шт.

44

84127702

FUSE,10A, Mini, Red

Sieve Lights, F-053

1шт.

45

84127702

FUSE,10A, Mini, Red

Moisture Sensor, F-054

1шт.

46

84152583

FUSE,7.5A, Mini, Brown

RH Marker Lights, F-055

1шт.

47

84152583

FUSE,7.5A, Mini, Brown

LH Marker Lights, F-056

1шт.

48

84127705

FUSE,25A, Mini, White

Accessory, F-057

1шт.

49

84127702

FUSE,10A, Mini, Red

Cigar Lighter, F-058

1шт.

50

84127703

FUSE,15A, Mini, Blue

Marker Light, F-059

1шт.

51

84127704

FUSE,20A, Mini, Yellow

ECU Power, F-060

1шт.

52

84127703

FUSE,15A, Mini, Blue

Fuel Pump, F-061

1шт.

53

84127703

FUSE,15A, Mini, Blue

Upper Sieve, F-062

1шт.

54

84127703

FUSE,15A, Mini, Blue

Lower Sieve, F-063

1шт.

55

84127703

FUSE,15A, Mini, Blue

Turntable, F-066

1шт.

56

84127708

FUSE,30A, Mini, Green

Transmission Shift, F-067

1шт.

57

84127708

FUSE,30A, Mini, Green

Shoe Leveling, F-068

1шт.

58

84127708

FUSE,30A, Mini, Green

Concave, F-069

1шт.

59

84127708

FUSE,30A, Mini, Green

Screen Brush, F-070

1шт.

60

84127703

FUSE,15A, Mini, Blue

High Beam Relay, F-071

1шт.

61

84127703

FUSE,15A, Mini, Blue

A/C Clutch, F-072

1шт.

62

84127704

FUSE,20A, Mini, Yellow

Seat Pump, F-073

1шт.

63

84127703

FUSE,15A, Mini, Blue

Rear Work Light, F-074

1шт.

64

84127704

FUSE,20A, Mini, Yellow

Service Light, F-075

1шт.

65

84127702

FUSE,10A, Mini, Red

Brake Light, F-076

1шт.

66

84127703

FUSE,15A, Mini, Blue

Beacon Light, F-077

1шт.

67

84127703

FUSE,15A, Mini, Blue

Service Socket, F-078

1шт.

68

84127702

FUSE,10A, Mini, Red

Horn, F-079

1шт.

69

84127703

FUSE,15A, Mini, Blue

Separator Blower, F-080

1шт.

70

84127703

FUSE,15A, Mini, Blue

Distribution Actuator, F-081

1шт.

71

84127703

FUSE,15A, Mini, Blue

Spreader Plate LH Actuator, F-082

1шт.

72

84127703

FUSE,15A, Mini, Blue

Spreader Plate RH Actuator, F-083

1шт.

73

84127703

FUSE,15A, Mini, Blue

Draper Header, F-084

1шт.

74

84127703

FUSE,15A, Mini, Blue

Switched Power Outlet, F-085

1шт.

75

84153830

FUSE,5A, Mini, Beige

Camera, F-086

1шт.

76

84127704

FUSE,20A, Mini, Yellow

Plug C, F-087

1шт.

77

84127704

FUSE,20A, Mini, Yellow

After Treatment Sensor, F-088

1шт.

78

84127703

FUSE,15A, Mini, Blue

Windrow Door, F-095

1шт.

79

84127703

FUSE,15A, Mini, Blue

Chopper Speed, F-096

1шт.

80

84543528

RELAY,12V, 20A, Micro

Inner Roof Lights, K-001

1шт.

81

84543528

RELAY,12V, 20A, Micro

Mid Outer Roof Lights, K-002

1шт.

82

84543528

RELAY,12V, 20A, Micro

Side/Exit Light, K-003

1шт.

83

84543528

RELAY,12V, 20A, Micro

Outer Roof Lights, K-004

1шт.

84

84543528

RELAY,12V, 20A, Micro

Road Lights, K-005

1шт.

85

84543528

RELAY,12V, 20A, Micro

Light Control, K-006

1шт.

86

84543666

RELAY,12V, 40A, Mini

UCM-1 Power, K-007

1шт.

87

84543666

RELAY,12V, 40A, Mini

UCM-2 Power, K-008

1шт.

88

84543528

RELAY,12V, 20A, Micro

Turntable Left (EU Option), K-009

1шт.

89

84543528

RELAY,12V, 20A, Micro

Upper Sieve Close, K-010

1шт.

90

84543528

RELAY,12V, 20A, Micro

Upper Sieve Open, K-011

1шт.

91

84543528

RELAY,12V, 20A, Micro

Turntable Right (EU Option), K-012

1шт.

92

84543528

RELAY,12V, 20A, Micro

Lower Sieve Close, K-013

1шт.

93

84543528

RELAY,12V, 20A, Micro

Lower Sieve Open, K-014

1шт.

94

84543666

RELAY,12V, 40A, Mini

Starting, K-015

1шт.

95

84543666

RELAY,12V, 40A, Mini

Spare, K-016

1шт.

96

84543528

RELAY,12V, 20A, Micro

Spreader RH Open, K-017

1шт.

97

84543528

RELAY,12V, 20A, Micro

Spreader LH Close, K-018

1шт.

98

84543528

RELAY,12V, 20A, Micro

Spreader LH Open, K-019

1шт.

99

84543528

RELAY,12V, 20A, Micro

Spreader RH Close, K-020

1шт.

100

84543528

RELAY,12V, 20A, Micro

Feeder Disengage, K-021

1шт.

101

84543528

RELAY,12V, 20A, Micro

Spare, K-022

1шт.

102

84543528

RELAY,12V, 20A, Micro

Neutral Start, K-023

1шт.

103

84543528

RELAY,12V, 20A, Micro

Spare, K-024

1шт.

104

84543528

RELAY,12V, 20A, Micro

UCM-1 Power, K-025

1шт.

105

84543528

RELAY,12V, 20A, Micro

Light Control, K-026

1шт.

106

84543528

RELAY,12V, 20A, Micro

Accessory, K-027

1шт.

107

84543528

RELAY,12V, 20A, Micro

UCM-2 Power, K-028

1шт.

108

84543528

RELAY,12V, 20A, Micro

Separator Blower, K-029

1шт.

109

84543528

RELAY,12V, 20A, Micro

Swap 1, K-030

1шт.

110

84543528

RELAY,12V, 20A, Micro

Swap 2, K-031

1шт.

111

84543528

RELAY,12V, 20A, Micro

Fuel Pump, K-032

1шт.

112

84543528

RELAY,12V, 20A, Micro

Distribution Down, K-033

1шт.

113

84543528

RELAY,12V, 20A, Micro

Distribution Up, K-034

1шт.

114

84543528

RELAY,12V, 20A, Micro

Rear Work Light, K-035

1шт.

115

84543528

RELAY,12V, 20A, Micro

Unload Tube Light, K-036

1шт.

116

84543528

RELAY,12V, 20A, Micro

Brake Light, K-037

1шт.

117

84543528

RELAY,12V, 20A, Micro

Spare, K-038

1шт.

118

84543528

RELAY,12V, 20A, Micro

A/C Clutch, K-039

1шт.

119

84543528

RELAY,12V, 20A, Micro

Beacon Light, K-040

1шт.

120

82012872

RELAY,70A

Roof Power, K-041

1шт.

121

84543528

RELAY,12V, 20A, Micro

Auxillary, K-042

1шт.

122

84543528

RELAY,12V, 20A, Micro

High Beam (EU Only), K-043

1шт.

123

84543528

RELAY,12V, 20A, Micro

Spare, K-044

1шт.

124

84543528

RELAY,12V, 20A, Micro

Spare, K-045

1шт.

125

84543528

RELAY,12V, 20A, Micro

Spare, K-046

1шт.

126

84543528

RELAY,12V, 20A, Micro

Header Swap Valve, K-047

1шт.

127

84543666

RELAY,12V, 40A, Mini

Windrow Door Open, K-048

1шт.

128

84543666

RELAY,12V, 40A, Mini

Windrow Door Close, K-049

1шт.

129

84543666

RELAY,12V, 40A, Mini

Chopper Low Speed, K-050

1шт.

130

84543666

RELAY,12V, 40A, Mini

Chopper High Speed, K-052

1шт.
