Запчасти Case IH 8240 (55.510.AF[07]) - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

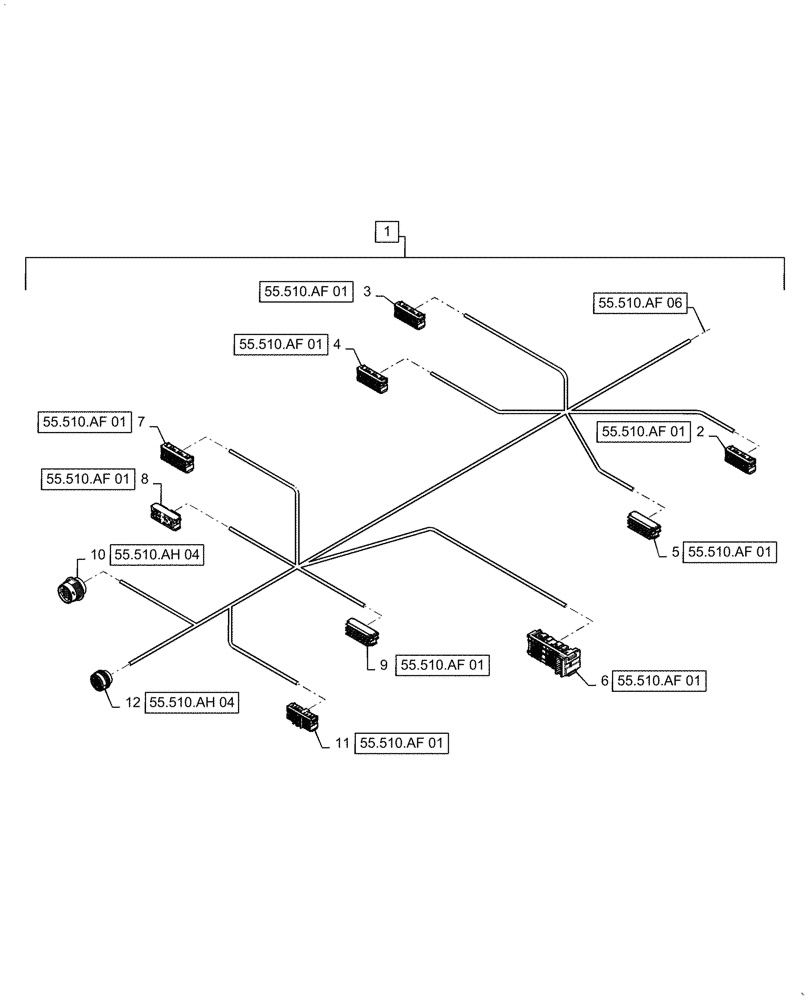

Схема запчастей Case IH 8240 - (55.510.AF[07]) - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS
55.510.af 01
8
5
3
7
9
11
12
4
6
10
1
2
55.510.ah 04
55.510.ah 04
55.510.af 06
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01

Артикул

Название

Примечание

Количество

1

47700991

WIRE HARNESS

Cab Main, Incl 2 - 12, Continued

1шт.

2

84526304

MODULE

Cab Main Relay Module, X-728B

1шт.

2

84529032

TERMINAL

Cab Main Relay Module, X-728B

10шт.

2

84546216

TERMINAL

Cab Main Relay Module, X-728B

4шт.

2

84491251

TERMINAL

Cab Main Relay Module, X-728B

8шт.

2

84491250

TERMINAL

Cab Main Relay Module, X-728B

2шт.

3

84526304

MODULE

Cab Main Relay Module, X-728D

1шт.

3

84529032

TERMINAL

Cab Main Relay Module, X-728D

14шт.

3

84491251

TERMINAL

Cab Main Relay Module, X-728D

9шт.

3

84546216

TERMINAL

Cab Main Relay Module, X-728D

2шт.

3

84491250

TERMINAL

Cab Main Relay Module, X-728D

2шт.

4

84526304

MODULE

Cab Main Relay Module, X-728C

1шт.

4

84491250

TERMINAL

Cab Main Relay Module, X-728C

6шт.

4

84529032

TERMINAL

Cab Main Relay Module, X-728C

9шт.

4

84491251

TERMINAL

Cab Main Relay Module, X-728C

2шт.

4

84546216

TERMINAL

Cab Main Relay Module, X-728C

1шт.

5

87733581

FUSE BOX

Cab Main Fuse Module, X-728A

1шт.

5

84123443

TERMINAL

Cab Main Fuse Module, X-728A

8шт.

5

84123442

TERMINAL

Cab Main Fuse Module, X-728A

15шт.

6

84529037

MODULE

Cab Main Relay Module, X-727B

1шт.

6

84491252

ELEC. TERMINAL PIN

Cab Main Relay Module, X-727B

4шт.

6

84491250

TERMINAL

Cab Main Relay Module, X-727B

4шт.

7

84526304

MODULE

Cab Main Relay Module, X-727C

1шт.

7

84491250

TERMINAL

Cab Main Relay Module, X-727C

8шт.

7

84529032

TERMINAL

Cab Main Relay Module, X-727C

14шт.

7

84546216

TERMINAL

Cab Main Relay Module, X-727C

4шт.

7

84491251

TERMINAL

Cab Main Relay Module, X-727C

4шт.

8

87733587

ELEC CONNECTOR

Cab Main Relay Module, X-727D

1шт.

8

84164961

TERMINAL

Cab Main Relay Module, X-727D

2шт.

8

84153403

TERMINAL

Cab Main Relay Module, X-727D

2шт.

9

87733581

FUSE BOX

Cab Main Fuse Module, X-727A

1шт.

9

84123442

TERMINAL

Cab Main Fuse Module, X-727A

19шт.

9

84123443

TERMINAL

Cab Main Fuse Module, X-727A

4шт.

10

87426768

MULTIPOLE CONNECTOR,Male, 29 Pole

Lower Roof Harness, X-077

1шт.

10

87695623

ELEC. TERMINAL PIN

Lower Roof Harness, X-077

6шт.

11

84529039

MODULE

Cab Roof Fuse Module, X-726D

1шт.

11

84529032

TERMINAL

Cab Roof Fuse Module, X-726D

8шт.

11

84491250

TERMINAL

Cab Roof Fuse Module, X-726D

4шт.

11

87301957

TERMINAL CONNECTOR,1 - 2 mm2

Cab Roof Fuse Module, X-726D

2шт.

11

84123443

TERMINAL

Cab Roof Fuse Module, X-726D

1шт.

11

84546216

TERMINAL

Cab Roof Fuse Module, X-726D

4шт.

11

84491251

TERMINAL

Cab Roof Fuse Module, X-726D

4шт.

12

87696950

CONNECTOR,ELECTRIC

Lower Roof Harness, X-007

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Lower Roof Harness, X-007

26шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Lower Roof Harness, X-007

3шт.

Выбрано товаров: 45
