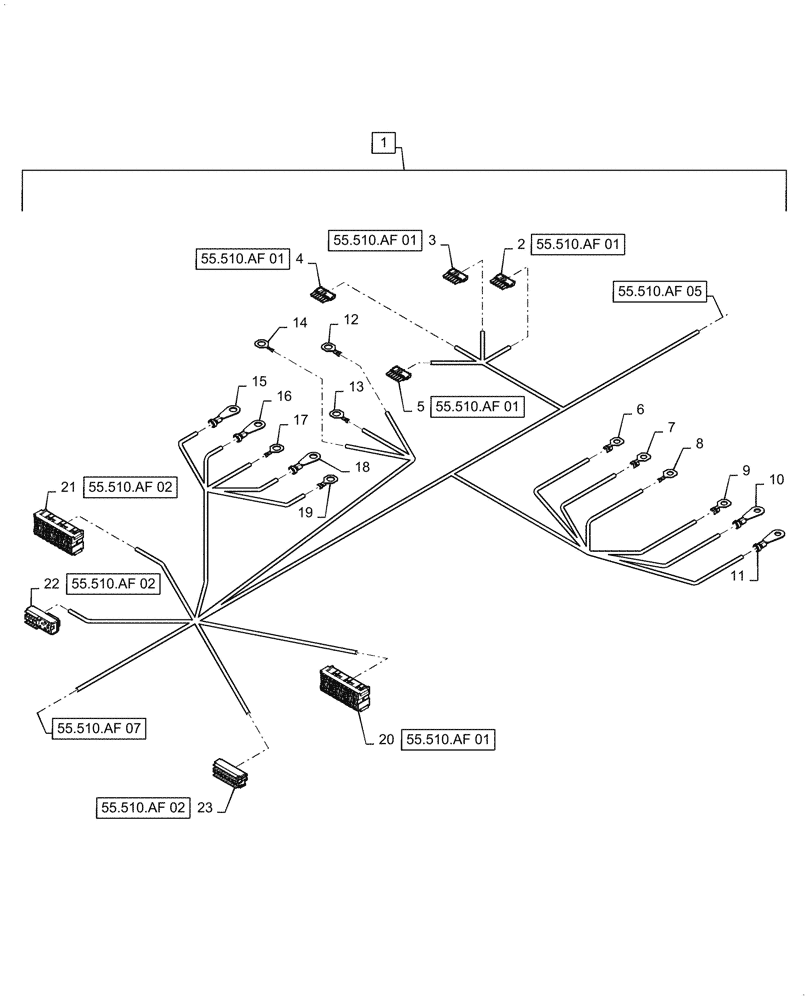

Запчасти Case IH 8240 (55.510.AF[06]) - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47700991

WIRE HARNESS

Cab Main, Incl 2 - 23, Continued

1шт.

2

87039236

ELEC CONNECTOR

Chop to Swath Diode, X-876

1шт.

2

87692856

CABLE TERMINAL

Chop to Swath Diode, X-876

5шт.

2

87680701

SEAL

Chop to Swath Diode, X-876

5шт.

3

87039236

ELEC CONNECTOR

Sieve Diode Module, X-877

1шт.

3

87692856

CABLE TERMINAL

Sieve Diode Module, X-877

5шт.

3

87680701

SEAL

Sieve Diode Module, X-877

5шт.

4

87039236

ELEC CONNECTOR

UCM2 Diode Module, X-878

1шт.

4

87692856

CABLE TERMINAL

UCM2 Diode Module, X-878

3шт.

4

87680701

SEAL

UCM2 Diode Module, X-878

3шт.

5

87039236

ELEC CONNECTOR

UCM1 Diode Module, X-875

1шт.

5

87680701

SEAL

UCM1 Diode Module, X-875

6шт.

5

87692856

CABLE TERMINAL

UCM1 Diode Module, X-875

6шт.

6

47700571

TERMINAL,Ring, M8

Ground, X-970

1шт.

7

47700571

TERMINAL,Ring, M8

Ground, X-971

1шт.

8

84278801

TERMINAL

Ground, X-972

1шт.

9

47700571

TERMINAL,Ring, M8

Ground, X-973

1шт.

10

47735962

Ground, X-974

TERMINAL

1шт.

11

47735962

Ground, X-975

TERMINAL

1шт.

12

47735957

Switched B+, X-966

TERMINAL

1шт.

13

47735959

Switched B+, X-967

TERMINAL

1шт.

14

47735961

Switched B+, X-963

TERMINAL

1шт.

15

47735954

Unswitched B+, X-959

TERMINAL

1шт.

16

47735954

Unswitched B+, X-958

TERMINAL

1шт.

17

47735959

Unswitched B+, X-960

TERMINAL

1шт.

18

47735954

Unswitched B+, X-957

TERMINAL

1шт.

19

47735955

Terminal, Unswitched B+, X-955

TERMINAL

1шт.

20

84526304

MODULE

Cab Main Relay Module, X-729B

1шт.

20

84491251

TERMINAL

Cab Main Relay Module, X-729B

3шт.

20

84529032

TERMINAL

Cab Main Relay Module, X-729B

10шт.

20

84491250

TERMINAL

Cab Main Relay Module, X-729B

7шт.

21

84526304

MODULE

Cab Main Relay Module, X-729D

1шт.

21

84529032

TERMINAL

Cab Main Relay Module, X-729D

6шт.

21

84491251

TERMINAL

Cab Main Relay Module, X-729D

2шт.

21

84491250

TERMINAL

Cab Main Relay Module, X-729D

2шт.

22

87733595

FUSE HOLDER

Cab Main Fuse Module, X-729C

1шт.

22

84123443

TERMINAL

Cab Main Fuse Module, X-729C

2шт.

22

84123442

TERMINAL

Cab Main Fuse Module, X-729C

8шт.

22

84164961

TERMINAL

Cab Main Fuse Module, X-729C

2шт.

22

84127679

TERMINAL

Cab Main Fuse Module, X-729C

1шт.

23

87733581

FUSE BOX

Cab Main Fuse Module, X-729A

1шт.

23

84123443

TERMINAL

Cab Main Fuse Module, X-729A

8шт.

23

84123442

TERMINAL

Cab Main Fuse Module, X-729A

14шт.
