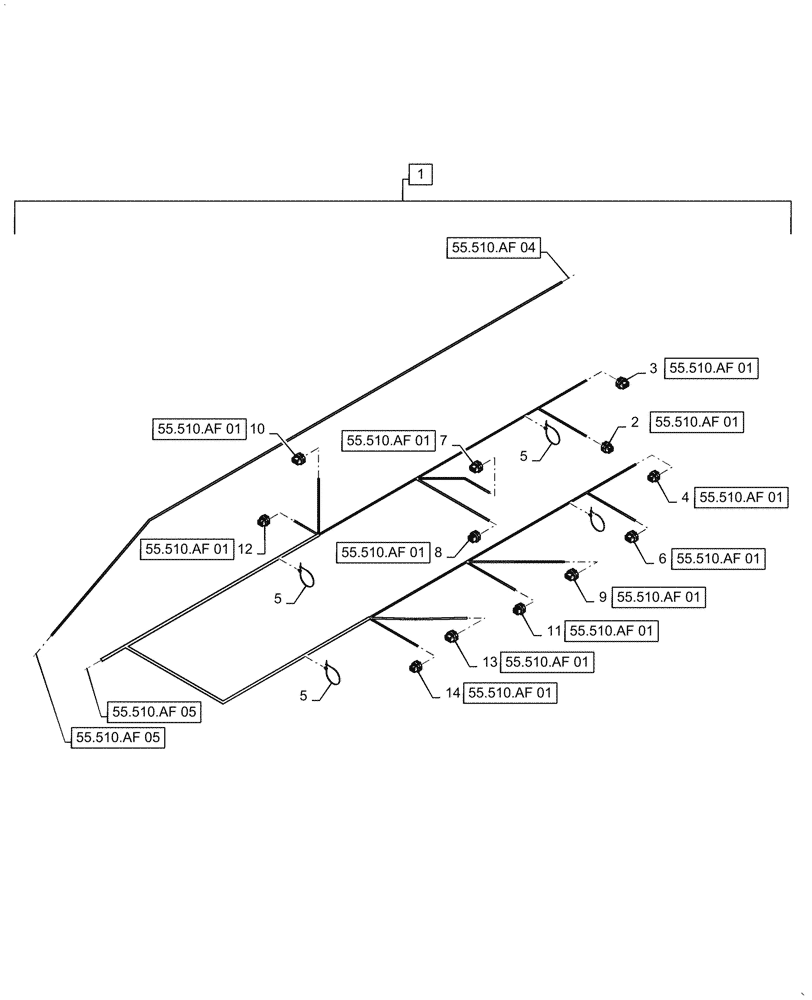

Запчасти Case IH 8240 (55.510.AF[04]) - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47700991

WIRE HARNESS

Cab Main, Incl 2 - 14, Continued

1шт.

2

84130760

ELEC CONNECTOR,Female, 34 Cavities

UCM2 CN3B/Top, X-018B

1шт.

2

82017048

CABLE TERMINAL

UCM2 CN3B/Top, X-018B

22шт.

3

84130757

ELEC CONNECTOR,Female, 26 Cavities

UCM2 CN3A/Top, X-018A

1шт.

3

82017048

CABLE TERMINAL

UCM2 CN3A/Top, X-018A

13шт.

4

84130760

ELEC CONNECTOR,Female, 34 Cavities

UCM1 CN3B/Bottom, X-014B

1шт.

4

82017048

CABLE TERMINAL

UCM1 CN3B/Bottom, X-014B

22шт.

5

87741307

SECURING STRAP

Fir Tree

4шт.

6

84130757

ELEC CONNECTOR,Female, 26 Cavities

UCM1 CN3A/Bottom, X-014A

1шт.

6

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN3A/Bottom, X-014A

16шт.

7

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM2 CN2B/Top, X-017B

1шт.

7

82017048

CABLE TERMINAL

UCM2 CN2B/Top, X-017B

18шт.

8

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM2 CN2A/Top, X-017A

1шт.

8

82017048

CABLE TERMINAL

UCM2 CN2A/Top, X-017A

12шт.

9

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM1 CN2B/Bottom, X-013B

1шт.

9

82017048

CABLE TERMINAL

UCM1 CN2B/Bottom, X-013B

26шт.

10

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

UCM2 CN1B/Top, X-016B

1шт.

10

82017048

CABLE TERMINAL

UCM2 CN1B/Top, X-016B

16шт.

11

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM1 CN2A/Bottom, X-013A

1шт.

11

82017048

CABLE TERMINAL

UCM1 CN2A/Bottom, X-013A

21шт.

12

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM2 CN1A/Top, X-016A

1шт.

12

82017048

CABLE TERMINAL

UCM2 CN1A/Top, X-016A

16шт.

13

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

UCM1 CN1B/Bottom, X-012B

1шт.

13

82017048

CABLE TERMINAL

UCM1 CN1B/Bottom, X-012B

18шт.

14

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM1 CN1A/Bottom, X-012A

1шт.

14

82017048

CABLE TERMINAL

UCM1 CN1A/Bottom, X-012A

15шт.
