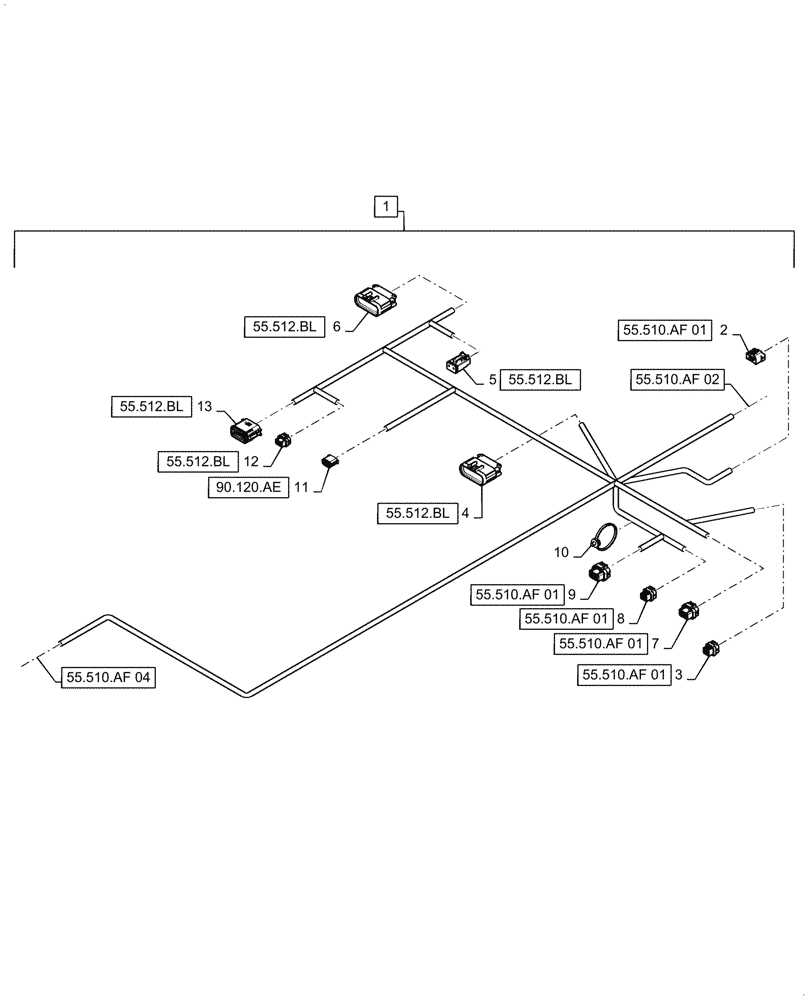

Запчасти Case IH 8240 (55.510.AF[03]) - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47700991

WIRE HARNESS

Cab Main, Incl 2 - 13, Continued

1шт.

2

87352746

ELEC CONNECTOR

Splice Block, X-179

1шт.

2

87693733

RETAINER

Splice Block, X-179

1шт.

2

87352747

CAP

Splice Block, X-179

1шт.

2

87693249

ELEC. TERMINAL PIN

Splice Block, X-179

1шт.

2

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Splice Block, X-179

10шт.

3

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM1 CN4A Bottom, X-015A

1шт.

3

82017048

CABLE TERMINAL

UCM1 CN4A Bottom, X-015A

13шт.

4

87696550

ELEC CONNECTOR

X-320

1шт.

4

87688853

WIRE CONNECTOR

X-320

1шт.

4

84193152

TERMINAL

X-320

4шт.

4

84143101

SEAL

X-320

4шт.

4

87697670

ELEC. TERMINAL PIN

X-320

6шт.

4

47438783

TERMINAL

X-320

3шт.

4

84151883

X-320

SEAL

1шт.

5

87711966

PLUG

X-507

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-507

2шт.

6

87696550

ELEC CONNECTOR

Display Harness, X-506

1шт.

6

87688853

WIRE CONNECTOR

Display Harness, X-506

1шт.

6

84193152

TERMINAL

Display Harness, X-506

4шт.

6

84143101

SEAL

Display Harness, X-506

4шт.

6

87697670

ELEC. TERMINAL PIN

Display Harness, X-506

8шт.

6

47438783

TERMINAL

Display Harness, X-506

3шт.

6

84151883

Display Harness, X-506

SEAL

1шт.

7

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM1 CN4B Bottom, X-015B

1шт.

7

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN4B Bottom, X-015B

7шт.

7

82017048

CABLE TERMINAL

UCM1 CN4B Bottom, X-015B

6шт.

8

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM2 CN4A Top, X-019A

1шт.

8

82017048

CABLE TERMINAL

UCM2 CN4A Top, X-019A

15шт.

9

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM2 CN4B Top, X-019B

1шт.

9

82017048

CABLE TERMINAL

UCM2 CN4B Top, X-019B

13шт.

10

84332778

STRAP,148mm L x 16mm W

Cable Tie

1шт.

11

84146309

ELEC CONNECTOR

Air Seat, X-073

1шт.

11

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Air Seat, X-073

2шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Air Seat, X-073

4шт.

12

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

RH Console, X-009

1шт.

12

82017048

CABLE TERMINAL

RH Console, X-009

8шт.

13

87708149

ELEC CONNECTOR

X-041

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-041

9шт.
