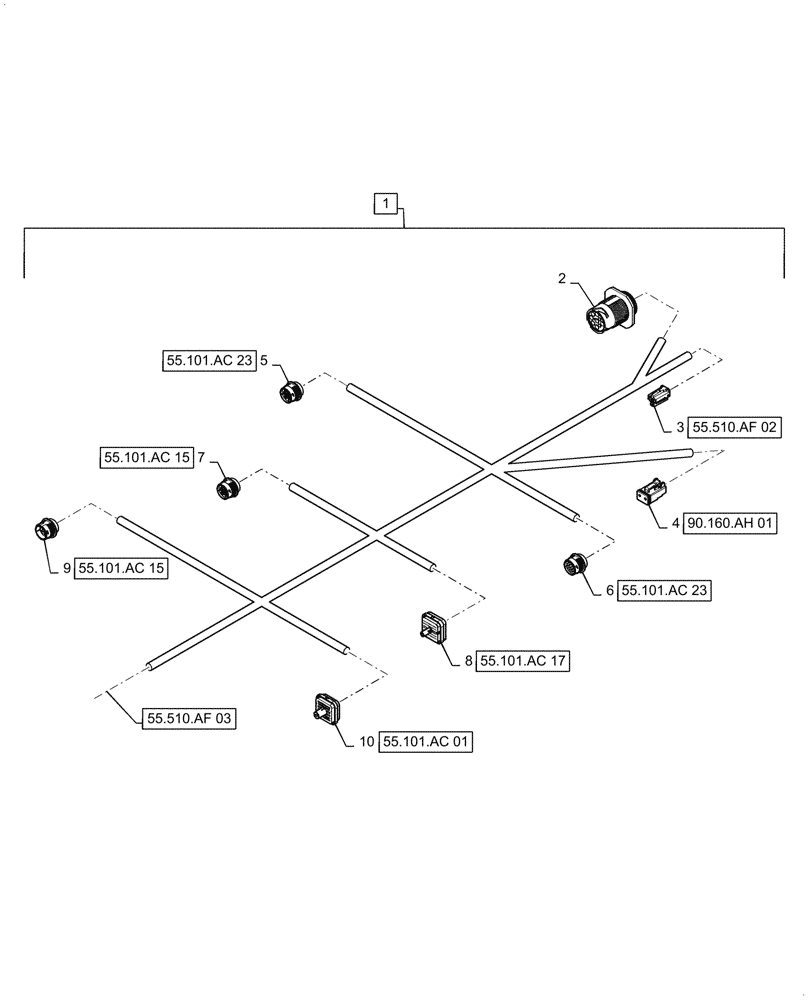

Запчасти Case IH 8240 (55.510.AF[02]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47700991

WIRE HARNESS

Cab Main, Incl 2 - 10

1шт.

2

47617975

ELEC CONNECTOR

Diagnostic Connector, X-065

1шт.

2

47617976

CAP

Diagnostic Connector, X-065

1шт.

2

47619984

JAM NUT

Diagnostic Connector, X-065

1шт.

2

87695623

ELEC. TERMINAL PIN

Diagnostic Connector, X-065

8шт.

3

84398827

WIRE CONNECTOR

LH Auxiliary Outlet, X-076

1шт.

3

84178477

RETAINER

LH Auxiliary Outlet, X-076

1шт.

3

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

LH Auxiliary Outlet, X-076

2шт.

4

87711966

PLUG

Cooler Box, X-528

1шт.

4

87712180

ELEC CONNECTOR

Cooler Box, X-528

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cooler Box, X-528

2шт.

5

87700162

ELEC CONNECTOR

Front Frame A, X-001

1шт.

5

87695623

ELEC. TERMINAL PIN

Front Frame A, X-001

26шт.

5

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Front Frame A, X-001

2шт.

6

87700159

ELEC CONNECTOR

Front Frame B, X-002

1шт.

6

87695623

ELEC. TERMINAL PIN

Front Frame B, X-002

16шт.

6

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Front Frame B, X-002

2шт.

7

87700162

ELEC CONNECTOR

Left Main Frame B, X-004

1шт.

7

87695623

ELEC. TERMINAL PIN

Left Main Frame B, X-004

28шт.

7

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Left Main Frame B, X-004

2шт.

8

84550086

Expansion A, X-005

ELEC CONNECTOR

1шт.

8

84550087

Lock, Expansion A, X-005

ELEC. TERMINAL PIN

1шт.

8

84550088

Flange, Expansion A, X-005

ELEC CONNECTOR

1шт.

8

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Expansion A, X-005

1шт.

8

87695623

ELEC. TERMINAL PIN

Expansion A, X-005

10шт.

8

87696141

TERMINAL

Expansion A, X-005

45шт.

9

87696098

ELEC CONNECTOR

Left Main Frame A, X-003

1шт.

9

87704524

ELEC CONNECTOR,Pin, Size 12

Left Main Frame A, X-003

3шт.

9

87695623

ELEC. TERMINAL PIN

Left Main Frame A, X-003

7шт.

9

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Left Main Frame A, X-003

4шт.

10

84177903

ELEC CONNECTOR

Expansion B, X-006

1шт.

10

87016253

ELEC CONNECTOR

Expansion B, X-006

1шт.

10

87695623

ELEC. TERMINAL PIN

Expansion B, X-006

6шт.

10

87696141

TERMINAL

Expansion B, X-006

22шт.

10

87704524

ELEC CONNECTOR,Pin, Size 12

Expansion B, X-006

8шт.

10

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Expansion B, X-006

6шт.
