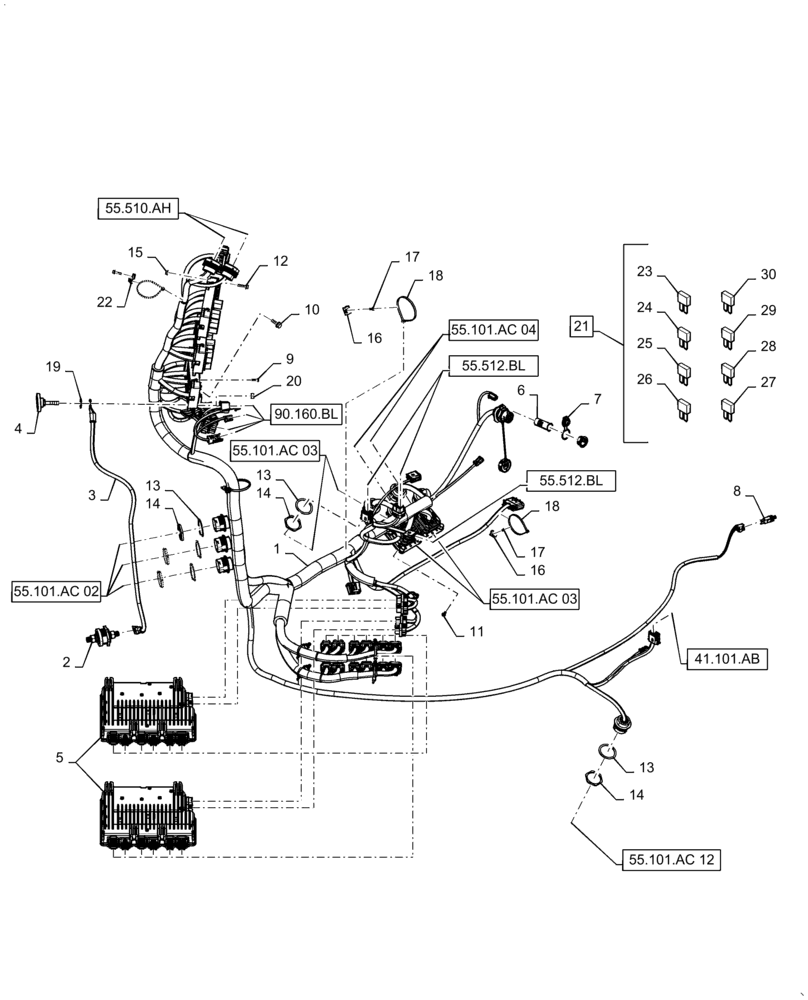

Запчасти Case IH 8240 (55.510.AF[01]) - VAR - 425357, 425358 -CAB, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47700991

WIRE HARNESS

Cab Main, Incl 23 - 30

1шт.

2

190158A1

BLOCK

Junction

1шт.

3

47406283

CABLE,660mm L

Cab to Front Panel

1шт.

4

303717A1

JUNCTION BLOCK

2шт.

5

84589140

MODULE

ECU

2шт.

6

388812A1

OUTLET

10A, 12V

1шт.

7

84556691

COVER

DC Outlet, Dust

1шт.

8

1983341C1

SWITCH

Diff. Lock Brake

1шт.

9

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

4шт.

10

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

11

87040922

SELF-TAP SCREW,Washer Hd, #12-24 x 5/8"

8шт.

12

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

21шт.

13

84420455

LOCK WASHER,48mm ID x 45.8mm OD

2.080" OD

8шт.

14

87271930

NUT

Plastic, Size 24

8шт.

15

86050300

FLANGE NUT,M6 x 1.0, Cl 10

21шт.

16

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

5шт.

17

445394

RIVET,Pop, 3/16" x 1/2" OAL

5шт.

18

86566990

CABLE TIE,292mm OAL x 4.8mm W

11шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

222699A1

FUSE KIT

Incl 23 - 30

1шт.

22

84340333

BASE PLATE

Base Tie

1шт.

23

121416A1

FUSE,30A, Mini, Green

1шт.

24

121415A1

FUSE,25A, Mini, Clear

1шт.

25

121414A1

FUSE,20A, Mini, Yellow

1шт.

26

121413A1

FUSE,15A, Mini, Blue

1шт.

27

121412A1

FUSE,10A, Mini, Red

1шт.

28

121411A1

FUSE,7.5A, Mini, Brown

1шт.

29

121410A1

FUSE,5A, Mini, Tan

1шт.

30

121850A1

FUSE,3A, Mini, Violet

1шт.
