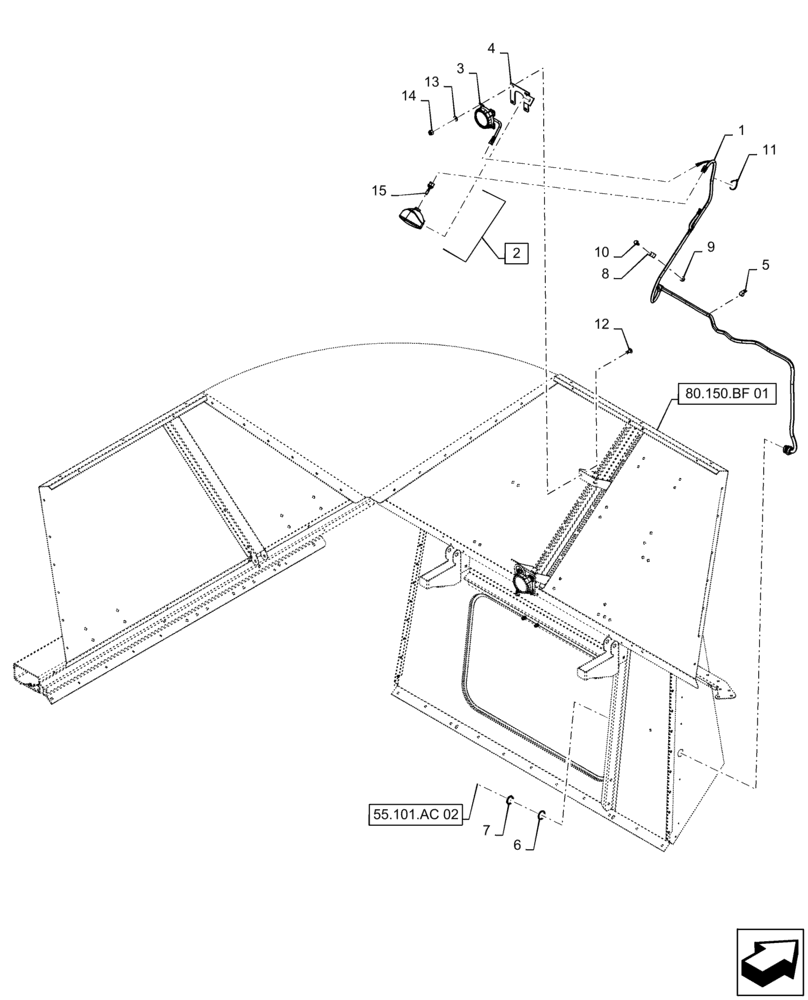

Запчасти Case IH 8240 (55.426.AH[01]) - WIRE HARNESS, GRAIN BIN EXTENSION (55) - ELECTRICAL SYSTEMS

1

47583734

WIRE HARNESS

Grain Bin Extension

1шт.

2

87329757

LAMP,Halogen, 12V, 16W, Clear

Grain Bin Light, Incl 15

1шт.

3

84545938

SENSOR

Grain Bin Level

2шт.

4

84471274

BRACKET

Upper Grain Bin Level Sensor Mount/ Grain Bin Camera

1шт.

5

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

6

9861349

LOCK WASHER,38.4mm ID x 47.9mm OD x 1.6mm Thk

1шт.

7

9861348

NUT,1-1/2"-18

1шт.

8

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

3шт.

11

86566989

CABLE TIE,208mm L

5шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

13

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

8шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

15

87329813

BULB,Halogen, 12.8V, 16W

16W, Incl in 2

1шт.
