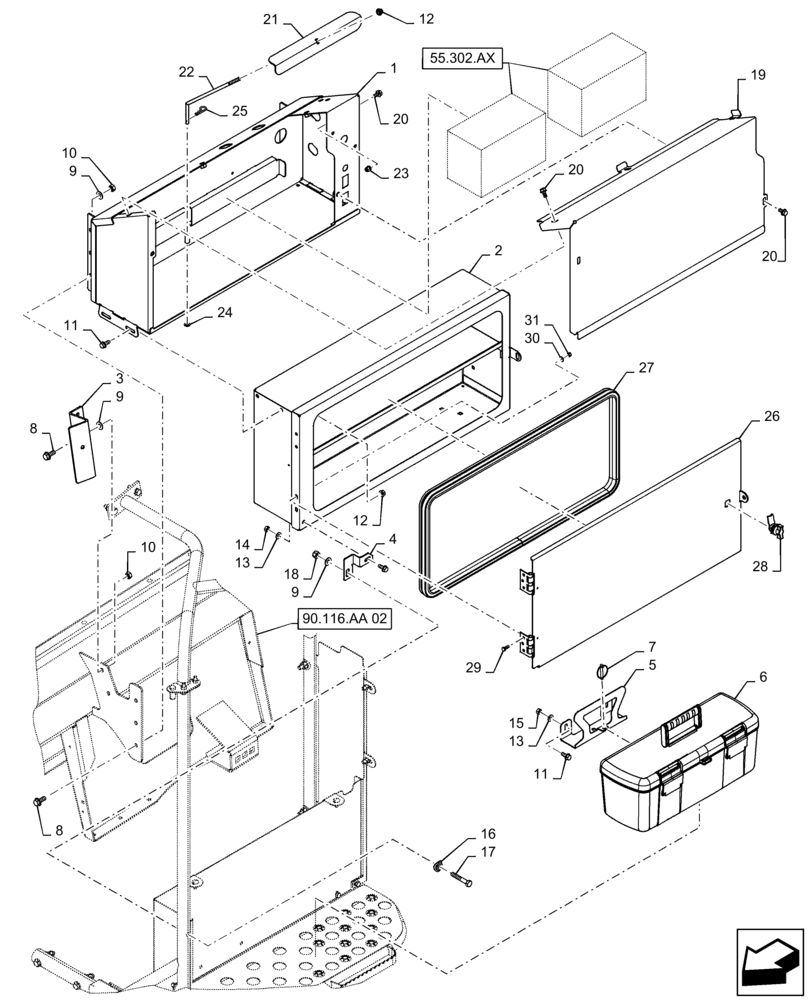

Запчасти Case IH 8240 (55.302.AH) - BATTERY, BOX (55) - ELECTRICAL SYSTEMS

1

47634560

BATTERY TRAY

799mm OAL

1шт.

2

84238727

CAB STORAGE BOX

178mm W

1шт.

3

84358514

BRACKET

Mounting, Battery Tray

1шт.

4

84257010

BRACKET

Mounting, Storage

1шт.

5

84319897

BRACKET

Mounting, Toolbox

1шт.

6

87400261

TOOL BOX

477mm OAL x 172mm Thk

1шт.

7

82013836

ROLL PIN,6mm OD

Linch

1шт.

8

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

10

86500689

NUT,M10 x 1.5, Cl 10

8шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

14

9706690

NUT,M8 x 1.25, Cl 8

1шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

379401

WASHER,11mm ID x 30mm OD

1шт.

17

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

18

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

19

84527136

PANEL

Battery Box, Front

1шт.

20

87681207

BOLT,M8 x 24.1mm, Cl 10.9

8шт.

21

47699546

CLAMP

Battery Hold Down, 325mm OAL x 70.2mm W x 3.3mm Thk

1шт.

22

84319485

ROD

Battery Hold Down, M8 x 1.25 x 269mm OAL

1шт.

23

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

5шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

26

84278002

DOOR

Storage Box

1шт.

27

401209

SEAL PROTECTION

Storage Box

1шт.

28

182925A1

LOCK

Storage Box

1шт.

29

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

31

353308

NUT,M6 x 1.0, Cl 8

4шт.
