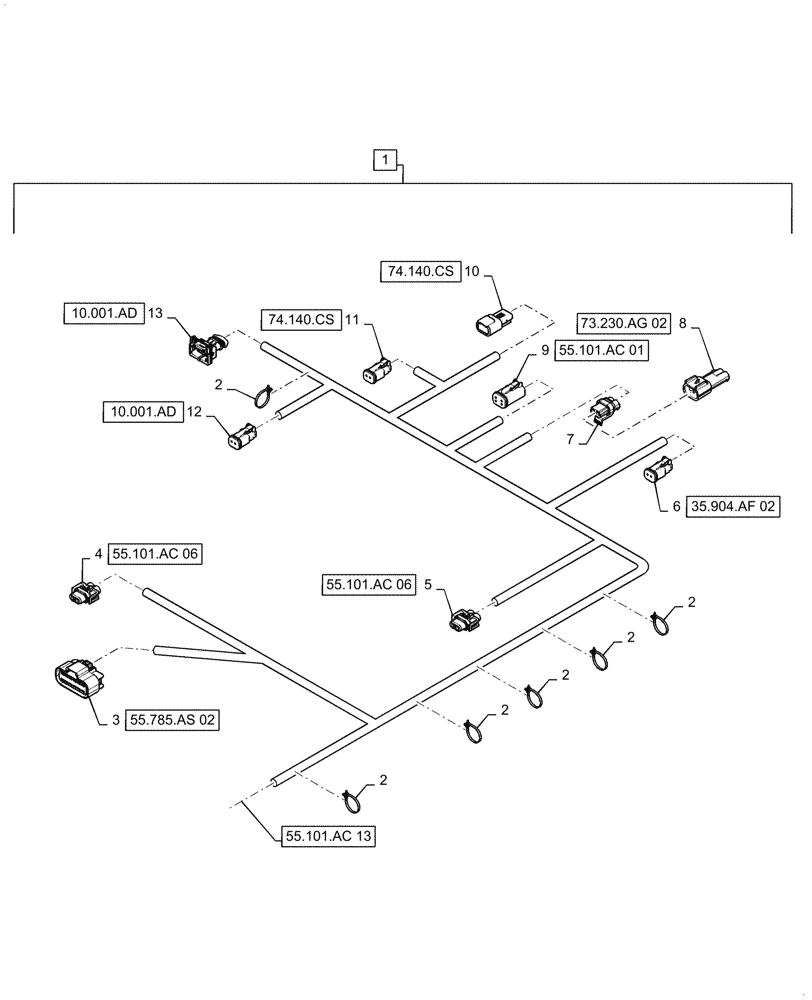

Запчасти Case IH 8240 (55.101.AC[13]) - RH MAIN FRAME WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47691941

WIRE HARNESS

RH Main Frame, Incl 2 - 13

1шт.

2

84266055

PLASTIC

Fir Tree Clip

5шт.

3

84137524

ELEC CONNECTOR

Clean Grain Elevator, X-220

1шт.

3

87354736

RETAINER

Clean Grain Elevator, X-220

1шт.

3

87745379

PLUG

Clean Grain Elevator, X-220

1шт.

3

84143101

SEAL

Clean Grain Elevator, X-220

11шт.

3

84193153

TERMINAL

Clean Grain Elevator, X-220

11шт.

4

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

RH Front Shield Light, X-347

1шт.

4

87690602

LOCK

RH Front Shield Light, X-347

1шт.

4

87680656

CONTACT

RH Front Shield Light, X-347

1шт.

4

87680701

SEAL

RH Front Shield Light, X-347

2шт.

4

84247557

ELEC. TERMINAL PIN

RH Front Shield Light, X-347

1шт.

5

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

RH Rear Shield Light, X-348

1шт.

5

87690602

LOCK

RH Rear Shield Light, X-348

1шт.

5

87680701

SEAL

RH Rear Shield Light, X-348

2шт.

5

87680656

CONTACT

RH Rear Shield Light, X-348

1шт.

5

84247557

ELEC. TERMINAL PIN

RH Rear Shield Light, X-348

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Fan Drive Solenoid, X-444

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Fan Drive Solenoid, X-444

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Fan Drive Solenoid, X-444

2шт.

7

87679438

WIRE CONNECTOR,Female

Discharge Deflector, X-590

1шт.

7

84806458

COLLAR

Discharge Deflector, X-590

1шт.

7

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Discharge Deflector, X-590

2шт.

7

87680701

SEAL

Discharge Deflector, X-590

2шт.

8

87686736

ELEC CONNECTOR

Cap, X-590A

1шт.

8

84806458

COLLAR

Cap, X-590A

1шт.

9

87694153

CONTACT HOUSING,Female, 4 Cavities

RH Rotor Loss, X-188

1шт.

9

84068583

PLUG,12 - 16 Ga, White

RH Rotor Loss, X-188

1шт.

9

84074640

LOCKING TAB,Wedge Lock

RH Rotor Loss, X-188

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Rotor Loss, X-188

3шт.

10

84817101

ELEC CONNECTOR,Male, 16 - 20 SAE

Tailings Volume Sensor, X-445

1шт.

10

84817102

LOCKING TAB,Wedge Lock, 3-Pin

Tailings Volume Sensor, X-445

1шт.

10

87696141

TERMINAL

Tailings Volume Sensor, X-445

3шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Returns RPM, X-186

1шт.

11

84074638

LOCKING TAB,Locking Wedge, Green

RH Returns RPM, X-186

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Returns RPM, X-186

2шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

Fuel Pump, X-183

1шт.

12

84068583

PLUG,12 - 16 Ga, White

Fuel Pump, X-183

1шт.

12

84074638

LOCKING TAB,Locking Wedge, Green

Fuel Pump, X-183

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Fuel Pump, X-183

2шт.

13

84806091

WIRE CONNECTOR,Female, 3 Pin

Water In Fuel Sensor, X-424

1шт.

13

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

Water In Fuel Sensor, X-424

3шт.

13

87691478

SEAL

Water In Fuel Sensor, X-424

3шт.
