Запчасти Case IH 8240 (55.101.AC[10]) - WIRE HARNESS, FRAME, FEEDER DRIVESHAFT (55) - ELECTRICAL SYSTEMS

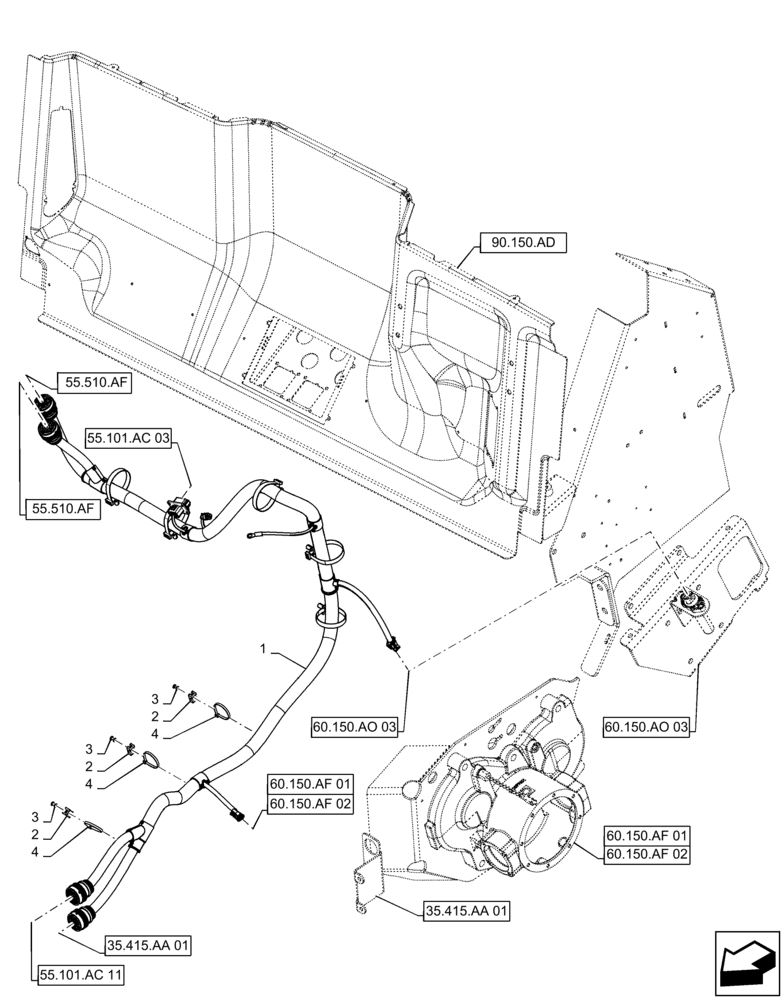

Схема запчастей Case IH 8240 - (55.101.AC[10]) - WIRE HARNESS, FRAME, FEEDER DRIVESHAFT (55) - ELECTRICAL SYSTEMS
60.150.af 01
35.415.aa 01
4
55.510.af
60.150.ao 03
3
3
4
3
1
60.150.af 02
60.150.ao 03
60.150.af 01
90.150.ad
60.150.af 02
55.101.ac 03
2
55.510.af
2
2
55.101.ac 11
35.415.aa 01
4

Артикул

Название

Примечание

Количество

1

47613017

WIRE HARNESS

Front Frame

1шт.

2

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

3шт.

3

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

3шт.

4

86566989

CABLE TIE,208mm L

3шт.

Выбрано товаров: 4
