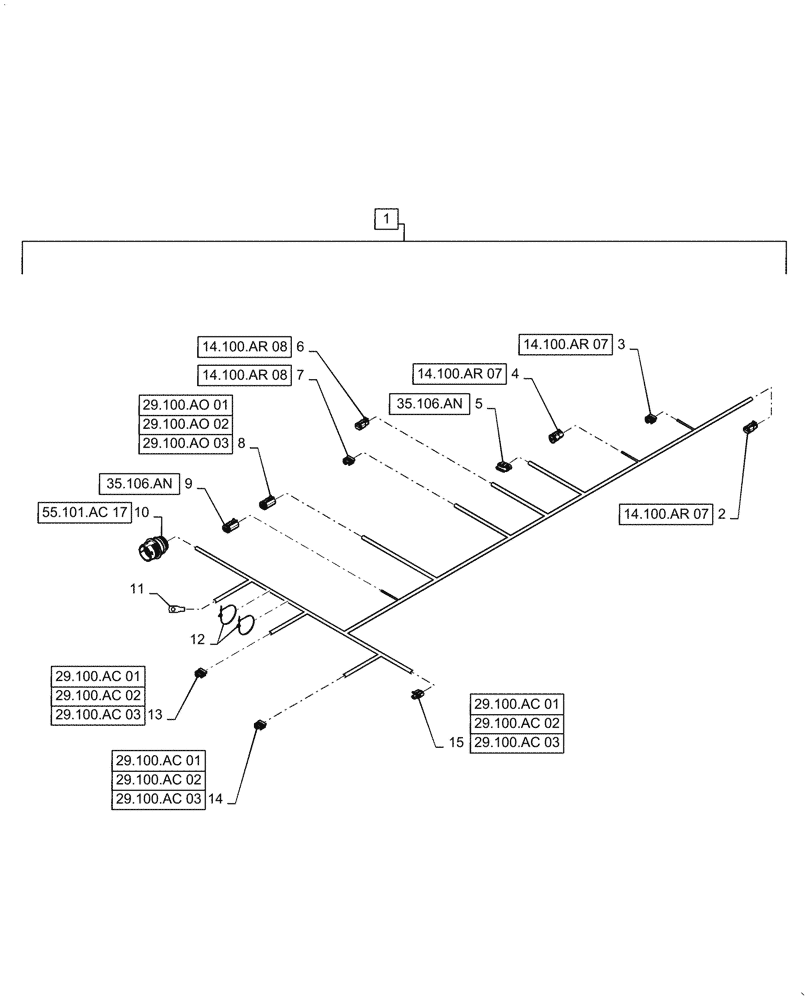

Запчасти Case IH 8240 (55.101.AA[02]) - PTO WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47501329

WIRE HARNESS

PTO Gearbox, Incl 2 - 15

1шт.

2

87695909

ELEC CONNECTOR,Female, 2 Pole

Rotor R to F Clutch, X-409

1шт.

2

87712180

ELEC CONNECTOR

Rotor R to F Clutch, X-409

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Rotor R to F Clutch, X-409

2шт.

3

87692812

ELEC CONNECTOR

Rotor E to R Clutch, X-410

1шт.

3

12124824

Lock, Rotor E to R Clutch, X-410

1шт.

3

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Rotor E to R Clutch, X-410

2шт.

4

87695549

ELEC CONNECTOR,Female, 3 Cavities

Rotor Hydro RPM, X-428

1шт.

4

84058193

LOCKING TAB,Wedge Lock

Rotor Hydro RPM, X-428

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Rotor Hydro RPM, X-428

3шт.

5

87679489

Elec Connector, Feeder Pump, X-402

ELEC CONNECTOR

1шт.

5

12047948

Lock, Feeder Pump, X-402

1шт.

5

87688852

ELEC. TERMINAL PIN

Feeder Pump, X-402

4шт.

5

87689629

SEAL

Feeder Pump, X-402

4шт.

6

87695909

ELEC CONNECTOR,Female, 2 Pole

Feeder R to F Clutch, X-403

1шт.

6

87712180

ELEC CONNECTOR

Feeder R to F Clutch, X-403

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Feeder R to F Clutch, X-403

2шт.

7

87692812

ELEC CONNECTOR

Feeder E to R Clutch, X-401

1шт.

7

12124824

Lock, Feeder E to R Clutch, X-401

1шт.

7

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Feeder E to R Clutch, X-401

2шт.

8

87694101

ELEC CONNECTOR,Female, 4 Cavities

Ground Speed Hydro, X-158

1шт.

8

87694148

ELEC CONNECTOR

Ground Speed Hydro, X-158

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Ground Speed Hydro, X-158

4шт.

9

87694101

ELEC CONNECTOR,Female, 4 Cavities

Rotor Pump, X-408

1шт.

9

87694148

ELEC CONNECTOR

Rotor Pump, X-408

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Rotor Pump, X-408

4шт.

10

87360316

WIRE CONNECTOR

Gearbox, X-101

1шт.

10

87696197

NUT

Cap, Gearbox, X-101

1шт.

10

87696199

SEALING RING

Gearbox, X-101

1шт.

10

87695623

ELEC. TERMINAL PIN

Gearbox, X-101

17шт.

11

41126

Terminal, Ground, X-947

1шт.

12

87741307

SECURING STRAP

Fir Tree

2шт.

13

87692812

ELEC CONNECTOR

Unload Clutch, X-449

1шт.

13

87705090

Lock, Unload Clutch, X-449

ELEC CONNECTOR

1шт.

14

87692812

ELEC CONNECTOR

Beater/Chopper Clutch, X-450

1шт.

14

12124824

Lock, Beater/Chopper Clutch, X-450

1шт.

15

82012093

WIRE CONNECTOR

Reservior Temp, X-159

1шт.

15

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Reservior Temp, X-159

2шт.
