Запчасти Case IH 8240 (41.432.AE[01]) - VAR - 722968, 425111, 425286 - AUTOGUIDANCE, HYDRAULIC VALVE (41) - STEERING

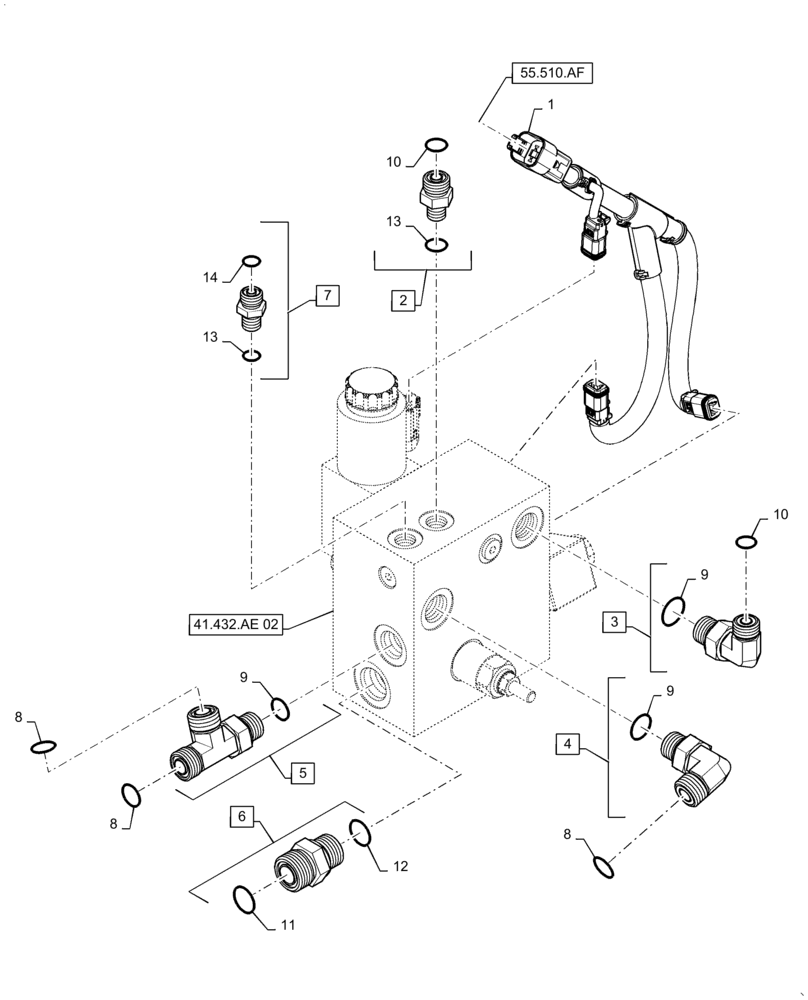

Схема запчастей Case IH 8240 - (41.432.AE[01]) - VAR - 722968, 425111, 425286 - AUTOGUIDANCE, HYDRAULIC VALVE (41) - STEERING
1
7
14
8
10
11
5
8
55.510.af
9
8
9
12
3
13
6
41.432.ae 02
9
2
13
10
4

Артикул

Название

Примечание

Количество

1

47501355

WIRE HARNESS

Autoguidance Valve

1шт.

2

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

Incl 10, 13

1шт.

3

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

Incl 9

1шт.

4

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 9

1шт.

5

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 9

1шт.

6

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 11 - 12

1шт.

7

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

Incl 13 - 14

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 14
