Запчасти Case IH 8240 (36.100.AC) - VAR - 722525 - AIR COMPRESSOR AND RESERVOIR (36) - PNEUMATIC SYSTEM

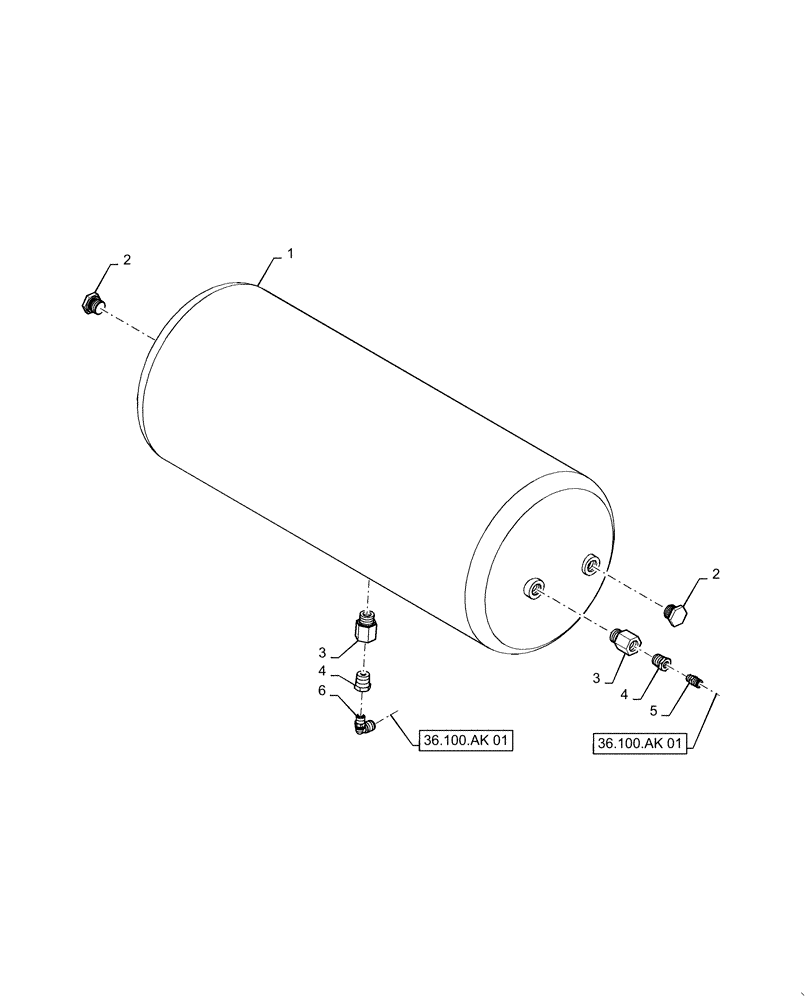

Схема запчастей Case IH 8240 - (36.100.AC) - VAR - 722525 - AIR COMPRESSOR AND RESERVOIR (36) - PNEUMATIC SYSTEM
2
4
36.100.ak 01
4
3
2
6
5
36.100.ak 01
1
3

Артикул

Название

Примечание

Количество

1

84036945

AIR RESERVOIR

Tank

1шт.

2

84814963

FITTING

Nipple

2шт.

3

84171940

HYD CONNECTOR

Adapter, M22 x 1.5mm (Male) x 1-1/8" x 1/2" (Female)

2шт.

4

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

2шт.

5

84162977

HYD CONNECTOR

Adapter, 3/8" OD, Push Connect

1шт.

6

84162975

HYD CONNECTOR

3/8", Push Connect Elbow

1шт.

Выбрано товаров: 6
