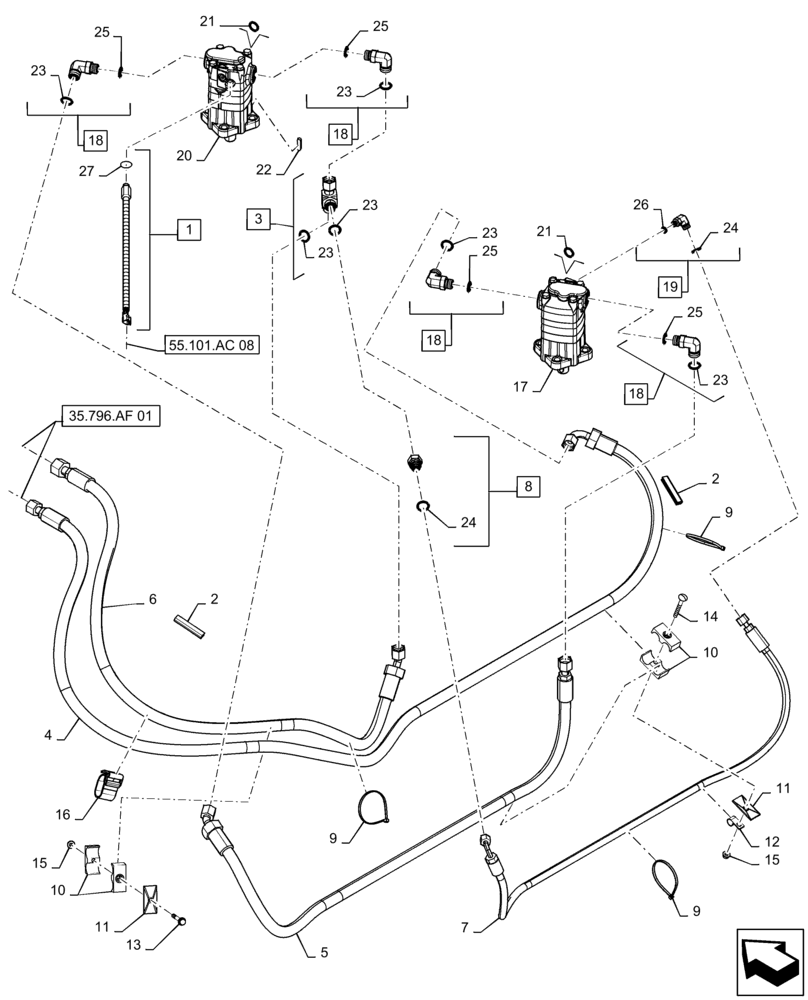

Запчасти Case IH 8240 (35.796.AC[01]) - VAR - 425488 - HYDRAULIC SYSTEM, CHAFF SPREADER, HORIZONTAL (35) - HYDRAULIC SYSTEMS

1

47421734

SENSOR

Spreader Speed, Incl 27

1шт.

2

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

Trim Edge, Black

2шт.

Rub Protection for Lines 4, 6

1шт.

3

84989850

3 WAY CONNECTION

16mm ORFS, Incl 23

1шт.

4

84592106

HYDRAULIC HOSE

Disc Spreader, Supply, 16mm ID x 3020mm L

1шт.

5

84592107

HYDRAULIC HOSE

Disc Spreader, Intermediate, 16mm ID x 1616mm L

1шт.

6

84592109

HYDRAULIC HOSE

Disc Spreader, Return, 16mm ID x 1810mm L

1шт.

7

84592110

HYDRAULIC HOSE

Disc Spreader Case Drain, 10mm ID x 1494mm L

1шт.

8

47629113

REDUCER

-6M x -10F, ORFS, Incl 24

1шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

4шт.

10

87000924

CLAMP

Hydraulic, 25.4mm ID x 25.4mm ID x 30mm Thk

3шт.

11

87000230

PLATE

Hose Clamp, 9mm ID x 65mm L x 30mm Thk

3шт.

12

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

13

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

14

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

15

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

16

84177788

SECURING STRAP

Hydraulic, Cinching, 228mm L x 38mm W

1шт.

17

84255961

HYDRAULIC MOTOR,90CC

90CC W/ Case Drain

1шт.

18

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 23, 25

4шт.

19

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

Incl 24, 26

1шт.

20

84590746

HYDRAULIC MOTOR

90CC Sensor Ready

1шт.

21

S300417

SEAL KIT

Services 17, 20

2шт.

22

170030

KEY,8mm x 7mm x 32mm

2шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

25

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

26

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
