Запчасти Case IH 8240 (35.780.AD[01]) - VAR - 425465, 425361 - FIXED, FEEDER, HEADER, HYDRAULIC MOTOR, DRIVE (35) - HYDRAULIC SYSTEMS

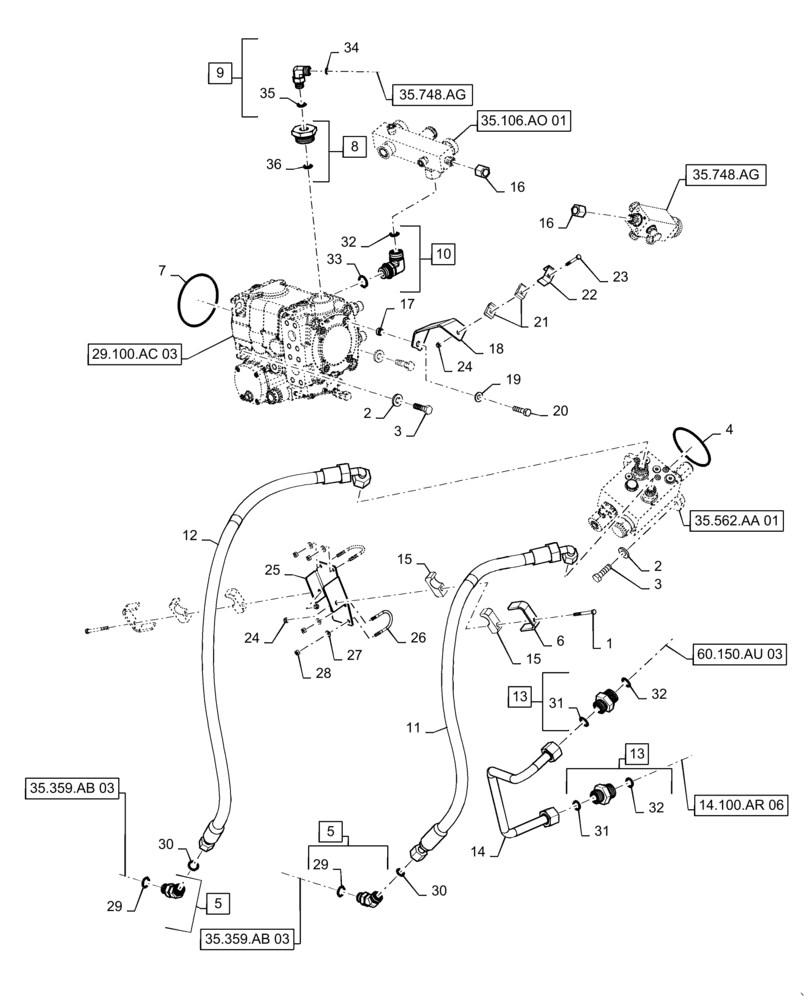

Схема запчастей Case IH 8240 - (35.780.AD[01]) - VAR - 425465, 425361 - FIXED, FEEDER, HEADER, HYDRAULIC MOTOR, DRIVE (35) - HYDRAULIC SYSTEMS
35.359.ab 03
6
28
24
1
4
14.100.ar 06
34
25
14
35.748.ag
33
20
16
12
3
7
18
29
36
15
17
27
21
16
5
15
60.150.au 03
2
11
31
24
29
30
8
32
23
35.748.ag
2
35.359.ab 03
35
10
29.100.ac 03
9
32
35.562.aa 01
31
13
19
30
35.106.ao 01
3
22
26
32
5
13

Артикул

Название

Примечание

Количество

1

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

2

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

6шт.

3

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

6шт.

4

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

5

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 29

2шт.

6

743318

SUPPORT

Hydraulic Hose Clamp, 97.3mm L x 20mm Thk

2шт.

7

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

8

87607845

PLUG

Reducer, M42 x M18, Incl 36

1шт.

9

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 34 - 35

1шт.

10

87598659

ELBOW

Hydraulic, 20mm ORFS x M26 ORB, Incl 32 - 33

1шт.

11

87283792

HOSE,16mm ID x 1270mm L

Hydraulic, Feeder Reverser, Supply

1шт.

12

87284629

FLEXIBLE HOSE

Hydraulic, Feeder Reverser, Return

1шт.

13

86579683

HYD CONNECTOR,1-3/16"-12 ORFS x M33 x 2.0 ORB

Incl 31 - 32

2шт.

14

87283801

HYD TUBE,0.75" OD

1шт.

15

457546

CLAMP

Hydraulic Hose, 57mm L x 20mm W

4шт.

16

9840575

CAP,13/16" - 16 ORFS

2шт.

17

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

1шт.

18

87646029

BRACKET, SUPPORTING

Hydraulic Hose, Rotor Pump to Control Pressure Manifold

1шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

20

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

21

433008

CLAMP

Hydraulic Hose, 31mm L x 20mm W

2шт.

22

442340

SUPPORT

Hydraulic Hose Clamp, 38mm L x 20mm Thk

1шт.

23

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

24

353308

NUT,M6 x 1.0, Cl 8

3шт.

25

84176365

BRACKET

Mounting, Feeder Hose

1шт.

26

799339

U-BOLT

M6 x 21mm of Thread

2шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

28

9706755

NUT,M6, Cl 8

4шт.

29

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

30

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

31

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

33

87621902

O-RING

M26 x 32mm OD

1шт.

34

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

36

87621903

O-RING KIT,39mm ID x 50mm OD x 2mm Thk

1шт.

Выбрано товаров: 36
