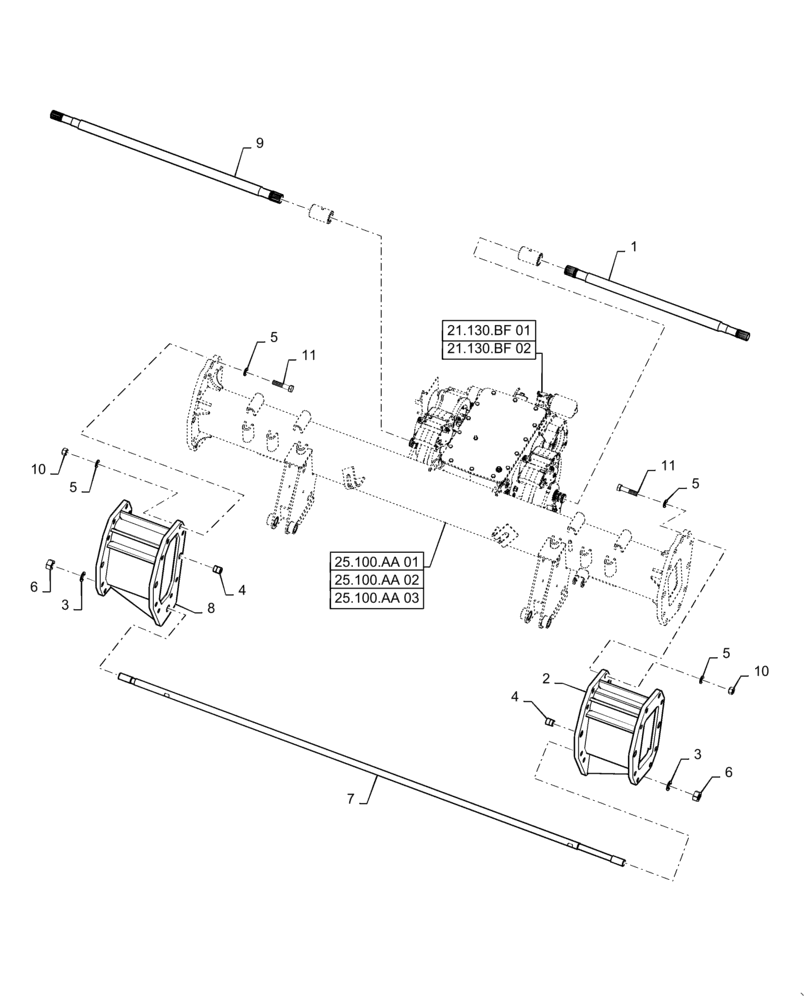

Запчасти Case IH 8240 (25.400.AD[06]) - VAR - 712547, 712551 - AXLE EXTENSION, 316MM (25) - FRONT AXLE SYSTEM

1

87011353

DRIVE SHAFT

23T, 990.5mm L, - VAR - 712547

1шт.

1

84440951

DRIVE SHAFT

22T, 979mm L, - VAR - 712551

1шт.

2

87108164

EXTENSION

LH, Axle, 316mm W

1шт.

3

80140184

WASHER,31mm ID x 50mm OD x 3mm Thk

31mm ID x 50mm OD

2шт.

4

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

5

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

32шт.

6

300852

NUT,M30 x 1.5, Cl 8

2шт.

7

84989399

ROD

M30 x 1.5 x 2752mm L

1шт.

8

87108166

EXTENSION

RH, Axle, 316mm W

1шт.

9

87011355

CONTROL SHAFT

23T, 1250.5mm L, - VAR - 712547

1шт.

9

84440957

DRIVE SHAFT

22T, 1239mm L, - VAR - 712551

1шт.

10

87024336

NUT,M20 x 2.5, Cl 10

16шт.

11

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

16шт.
