Запчасти Case IH 8240 (25.102.AT[01]) - PEDAL, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

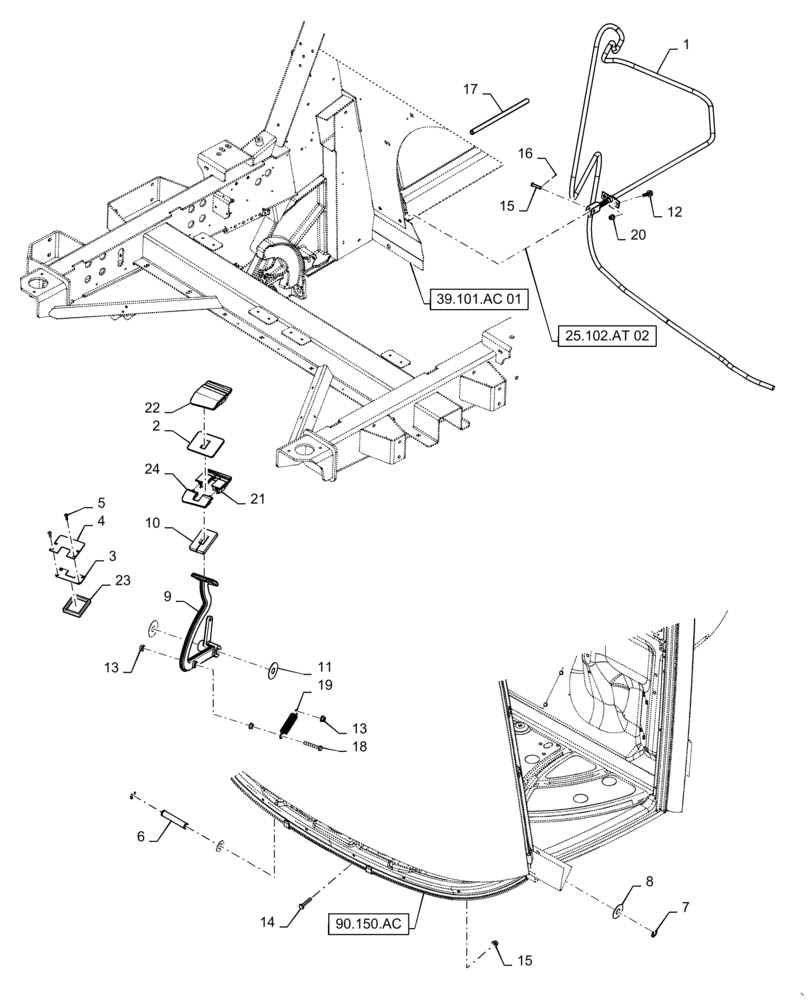

Схема запчастей Case IH 8240 - (25.102.AT[01]) - PEDAL, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM
17
23
22
13
24
1
18
14
90.150.ac
7
15
9
8
10
16
5
19
6
12
13
3
2
20
15
4
11
39.101.ac 01
21
25.102.at 02

Артикул

Название

Примечание

Количество

1

84559755

CABLE,3980mm L

Diff Lock, To Front Axle Gearbox

1шт.

2

84531217

PLUG

W/O Diff Lock Pedal

1шт.

3

84385072

PLATE

Rear, Diff Lock Pedal, Cab Floor

1шт.

4

84367108

PLATE

Front, Diff Lock Pedal, Cab Floor

1шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

6

84064170

PIN

Pedal Pivot

1шт.

7

84062118

CIRCLIP,M12 ID x 13mm OD, External

2шт.

8

9513615

WASHER,16.5mm ID x 34mm OD x 0.5mm Thk

2шт.

9

84536860

PEDAL

Diff Lock

1шт.

10

84540319

SEAL

Adhesive Gasket

1шт.

11

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

2шт.

12

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

14

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

15

376876

CLEVIS PIN,6mm OD x 30mm L

1шт.

16

86977785

COTTER PIN,M1.6 x 20mm

1шт.

17

9507812

CONDUIT

Cut From Bulk, Approx 0.75M

1шт.

18

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

1шт.

19

47390744

SPRING

Extension, Diff Lock

1шт.

20

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

2шт.

21

84531221

PLUG

Rear, Top Cab Cover

1шт.

22

84551832

PLUG

Front, Top Cab Cover

1шт.

23

84540359

GASKET,9.5mm Thk

Plate to Cab

1шт.

24

84543542

COVER

Floor Seal, W/O Diff Lock

1шт.

Выбрано товаров: 24
