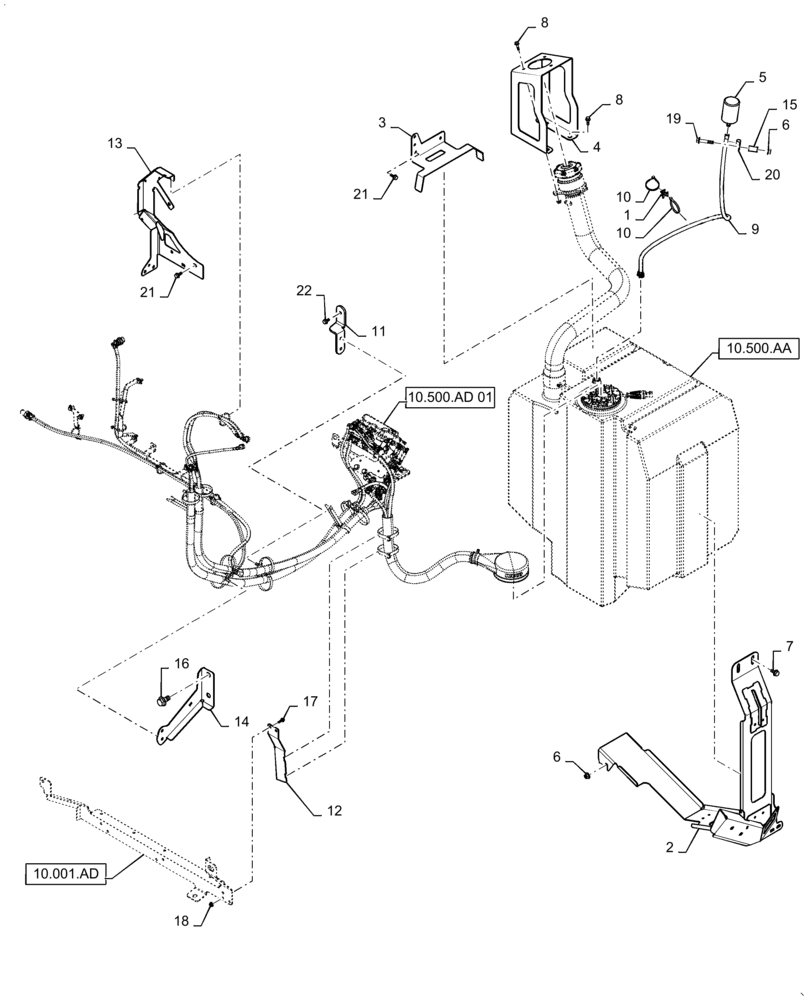

Запчасти Case IH 8240 (10.500.AD[03]) - DEF LINES, DEF TANK (10) - ENGINE

1

84318895

SPACER,17.97mm H

Swivel Tie Base, 20.32mm L x 23.62mm Thk

1шт.

2

47491572

BRACKET

Fuel Tank Support

1шт.

3

47679725

BRACKET

Harness Support

1шт.

4

47707367

SUPPORT

Filler Neck

1шт.

5

47437399

FUEL FILTER

Fuel Tank Vent, 10 Micron

1шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

7

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

8

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

9

47702995

HOSE

Vent, 870mm L

1шт.

10

86566989

CABLE TIE,208mm L

2шт.

11

47584272

BRACKET

Upper, Harness Support

1шт.

12

47499053

BRACKET

Lower, Harness Support

1шт.

13

47707671

BRACKET

Harness, Mounting

1шт.

14

47707485

BRACKET

Harness, Mounting

1шт.

15

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

1шт.

16

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

2шт.

17

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

18

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

19

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

1шт.

20

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

22

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.
